1995 Suzuki RM125 Cushion Lever Diagram

← All diagrams

Find the part on the Cushion Lever diagram for your 1995 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

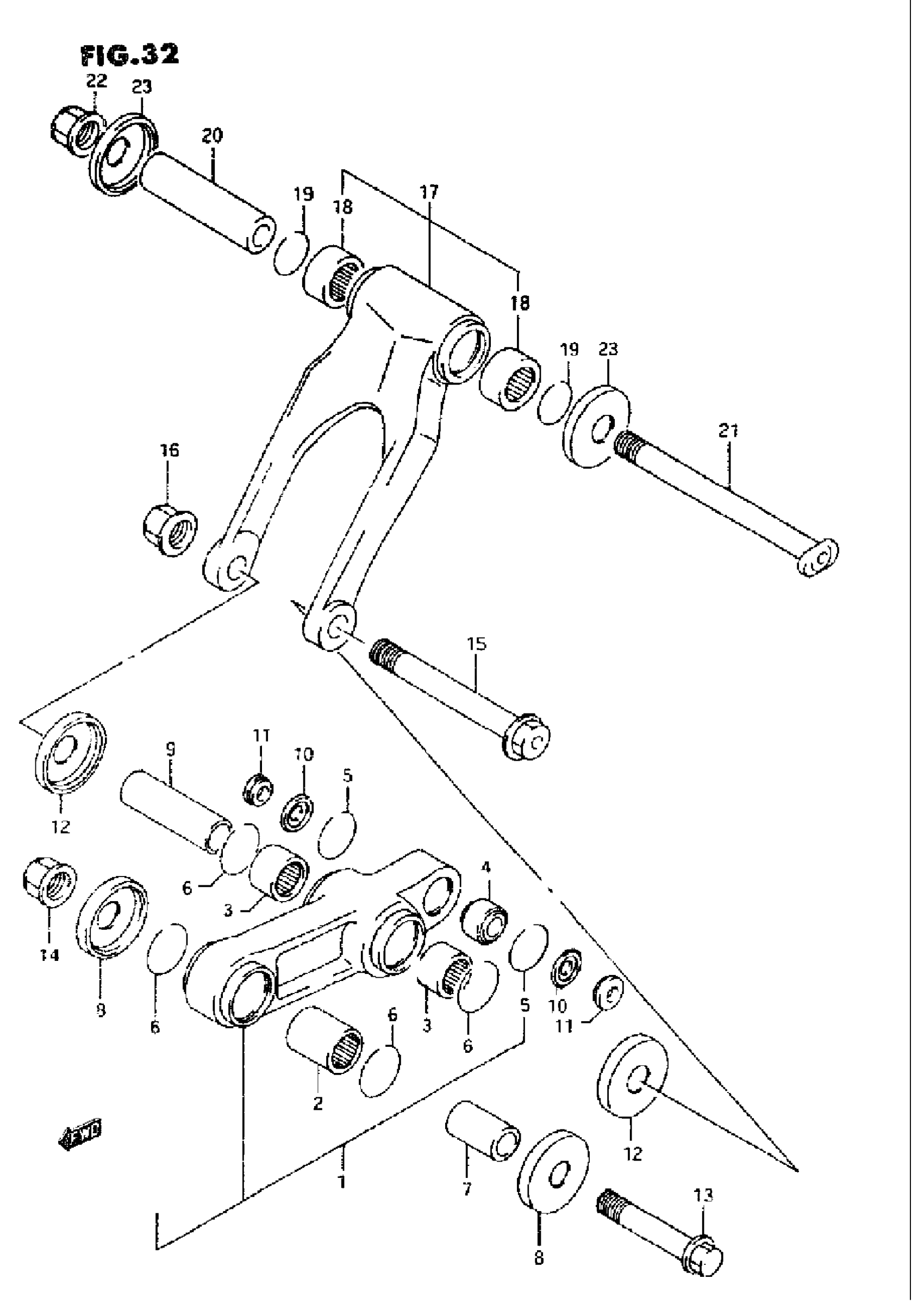

1995 Suzuki RM125 Cushion Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER SET, REAR CUSHION This part replaces 62601-27810.

62601-27811

1
Out of stock

2

BEARING, FRONT

09263-20053

1
Out of stock

3

BEARING, CENTER

09263-21012

2
Out of stock

4

BEARING, REAR

62175-43D00

1
Out of stock

5

RING, STOPPER REAR

62277-27C20

2
Out of stock

6

RING, STOPPER, FR/CTR

09381-26002

4
Out of stock

7

SPACER, FRONT CENTER

62317-27C10

1
Out of stock

8

SEAL, DUST This part replaces 62162-28C01.

62162-28E01

2
Out of stock

9

SPACER, CENTER This part replaces 62646-27C20.

62626-05D10

1
Out of stock

10

DUST SEAL, REAR

62226-43D00

2
Out of stock

11

SPACER, REAR

62684-28C10

2
Out of stock

12

SEAL,RR CUSHION LEVER CENTER This part replaces 62682-27C20.

62682-13E00

2
Out of stock

13

BOLT, FRONT

62658-27C10

1
Out of stock

14

NUT This part replaces 08319-31128.

08319-3112A

1
Out of stock

15

SHAFT, CENTER

62621-27C20

1
Out of stock

16

NUT This part replaces 08319-31148.

08319-3114A

1
Out of stock

17

ROD SET,RR CUSH This part replaces 62601-27830.

62600-29810

1
Out of stock

18

BEARING

09263-21012

2
Out of stock

19

RING, STOPPER

09381-26002

2
Out of stock

20

SPACER, ROD

62645-27C20

1
Out of stock

21

BOLT, ROD

62622-27C20

1
Out of stock

22

NUT This part replaces 08319-31148.

08319-3114A

1
Out of stock

23

SEAL,RR CUSHION LEVER CENTER This part replaces 62682-27C20.

62682-13E00

2
Out of stock
