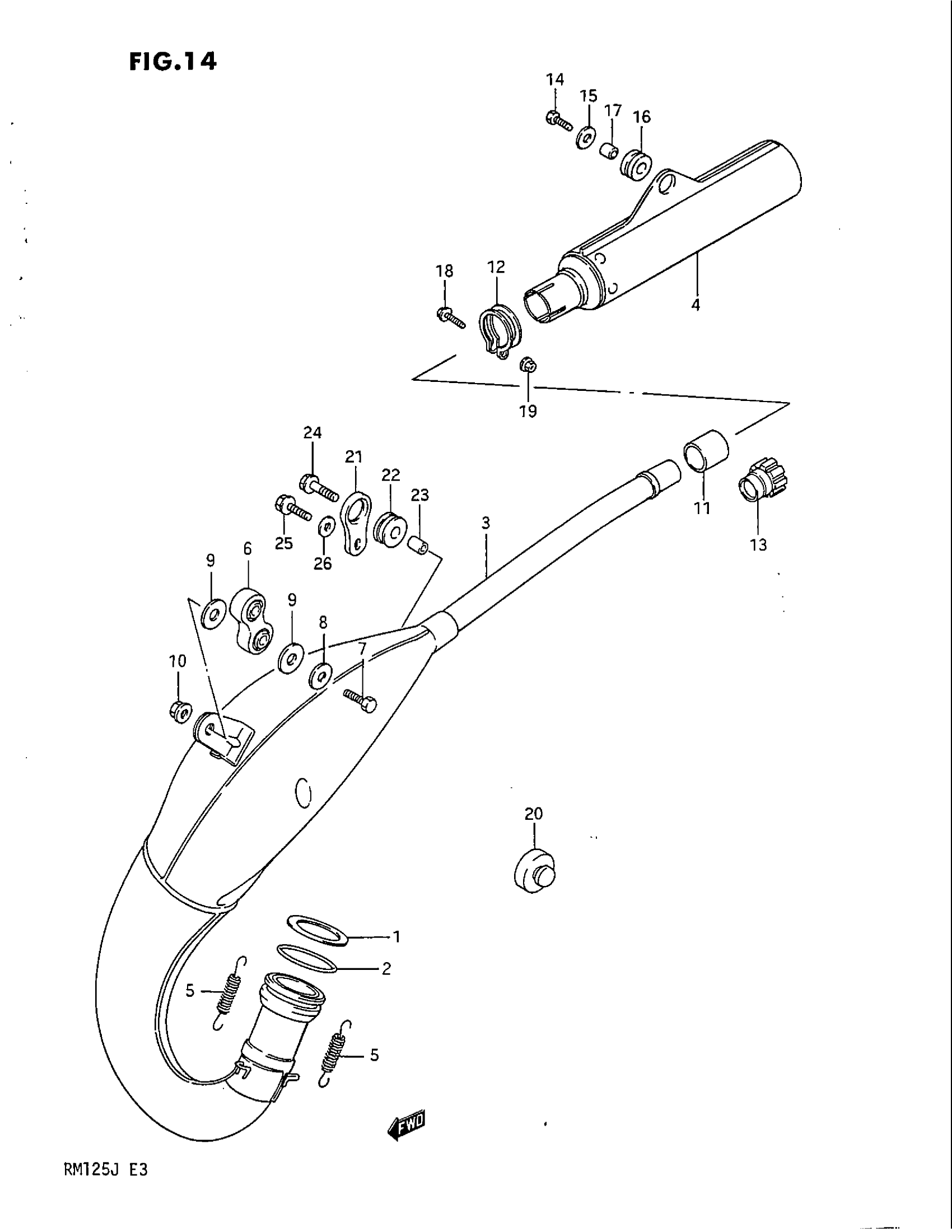

Find the part on the Muffler diagram for your 1988 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Suzuki RM125 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, EXHAUST PIPE

14172-01B21

1
Out of stock

2

O RING, EXHAUST PIPE

14171-01B21

1
Out of stock

3

MUFFLER, 1ST | MODEL H

14310-01B50-H01

1
Out of stock

3

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 14310-01B71-H01.

14310-01B71

1
Out of stock

4

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 14330-01B15-H01.

14330-01B15

1
Out of stock

4

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 14330-01B32-H01.

14330-01B32

1
Out of stock

5

SPRING | MODEL H This part replaces 09443-12034.

09443-10034-XC0

2
Out of stock

5

SPRING | MODEL J This part replaces 09443-10034.

09443-10034-XC0

2
Out of stock

6

DAMPER, MUFFLER

14770-40000

1
Out of stock

7

BOLT (8X32)

09100-08176

1
Out of stock

8

WASHER This part replaces 09160-08035.

09160-08130

1
Out of stock

9

WASHER

09161-13001

4
Out of stock

10

NUT This part replaces 08316-26088.

08316-20087

1
Out of stock

11

GASKET, 2ND MUF | MODEL H This part replaces 14771-14510.

14771-14510-H17

1
Out of stock

12

CLAMP | MODEL H

14772-01B00

1
Out of stock

13

CONNECTOR, 2ND MUFFLER | MODEL J This part replaces 14771-01B00.

14771-27C10

1
Out of stock

14

BOLT, GEAR SHIFT ARM | MODEL H This part replaces 09100-06039.

01500-0625A

1
Out of stock

14

BOLT (6X20) | MODEL J

01547-06207

1
Out of stock

15

WASHER, FRONT This part replaces 09160-06004.

09160-06134

1
Out of stock

16

CUSHION

09320-09027

1
Out of stock

17

SPACER (6.5X9X10.5) This part replaces 09180-06090.

09180-06264

1
Out of stock

18

BOLT | MODEL H This part replaces 01517-06358.

01550-06357

1
Out of stock

19

NUT | MODEL H This part replaces 08316-26068.

08316-2006A

1
Out of stock

20

CUSHION, RH FRONT | MODEL H This part replaces 09321-10020.

09321-10024

1
Out of stock

21

PLATE, MOUNTING | MODEL J

14761-01B00

1
Out of stock

22

CUSHION (8.7X26X14) | MODEL J This part replaces 14762-01B00.

14762-01B02

1
Out of stock

23

SPACER | MODEL J This part replaces 09180-06062.

09180-06268

1
Out of stock

24

BOLT | MODEL J

01547-06257

1
Out of stock

25

BOLT | MODEL J

01547-06167

1
Out of stock

26

WASHER | MODEL J This part replaces 08322-21067.

08322-01067

1
Out of stock
