1988 Suzuki RM125 Crankcase Diagram

← All diagrams

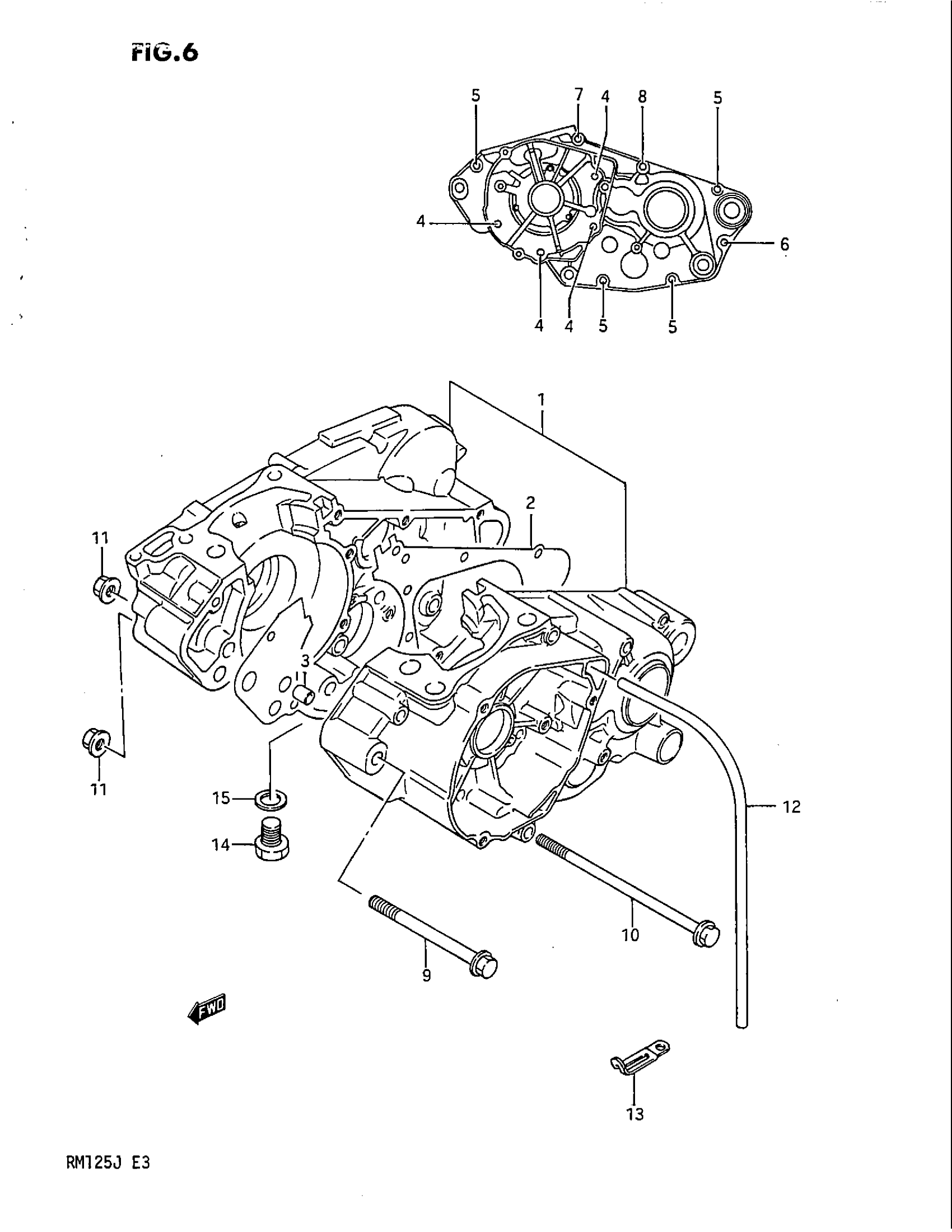

Find the part on the Crankcase diagram for your 1988 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Suzuki RM125 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 11300-01820.

11300-01823

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL J; Includes Item(s) 2 - 8 This part replaces 11300-01822.

11300-01823

1
Out of stock

2

GASKET,CRANKCAS This part replaces 11481-01B20.

11481-01B20-H17

1
Out of stock

3

PIN

04211-09129

2
Out of stock

4

SCREW (6x45)

02112-06457

4
Out of stock

5

6X50 CROSS SCRE This part replaces 02112-06508.

02112-06507

4
Out of stock

6

SCREW This part replaces 02112-06608.

02112-06607

1
Out of stock

7

SCREW This part replaces 02112-06708.

02112-06707

1
Out of stock

8

SCREW This part replaces 02112-06808.

02112-06807

1
Out of stock

9

BOLT (8X95)

09103-08183

1
Out of stock

10

BOLT (8X150)

09103-08113

1
Out of stock

11

NUT

09159-08067

2
Out of stock

12

HOSE 4X7X600 | L:600->250 This part replaces 09343-04104.

09352-40706-600

1
Out of stock

13

CLAMP | MODEL H This part replaces 09404-06402.

09404-06039

1
Out of stock

13

CLAMP | MODEL J This part replaces 09404-06401.

09404-06039

1
Out of stock

14

PLUG, DRAIN

09247-14025

1
Out of stock

15

GASKET

09168-14004

1
Out of stock
