1978 Suzuki RM125 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1978 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

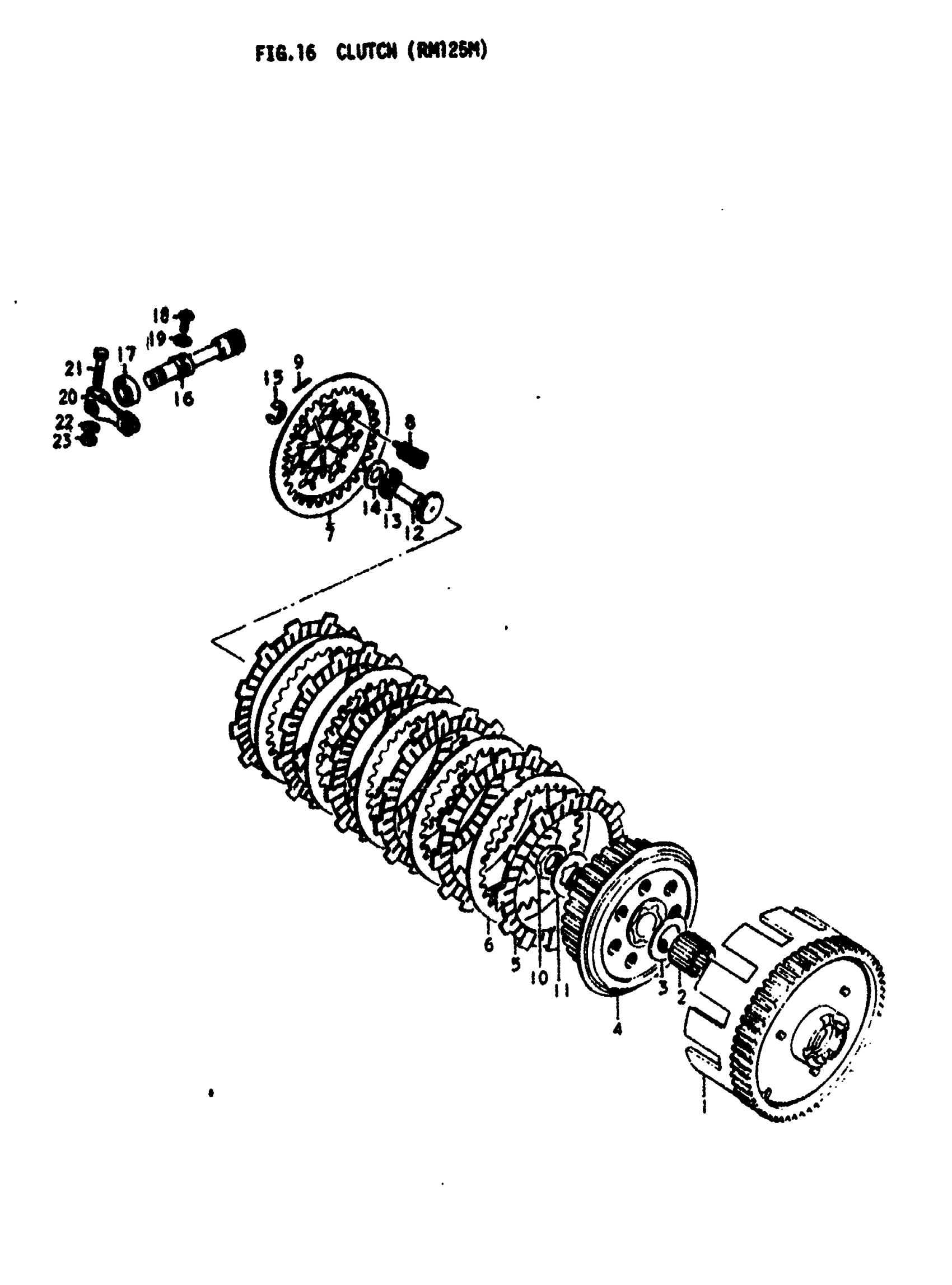

1978 Suzuki RM125 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR ASSY, PRIMARY DRIVEN | NT:61

21200-41001

1
Out of stock

2

BEARING

09263-21005

1
Out of stock

3

THRUST WASHER | 17x34x1.5

08211-17342

1
Out of stock

4

HUB,CLUTCH SLEE This part replaces 21410-28700.

21410-39131

1
Out of stock

5

PLATE, CLUTCH DRIVE This part replaces 21441-28300.

21441-13A01

6
Out of stock

6

PLATE, CLUTCH DRIVEN (T:1.6) This part replaces 21451-28000.

21451-19A00

5
Out of stock

7

PLATE, PRESSURE

21460-28000

1
Out of stock

8

SPRING

09443-12018

7
Out of stock

9

PIN

09261-02001

7
Out of stock

10

NUT This part replaces 09140-16001.

09140-16005

1
Out of stock

11

WASHER | 14x33x0.8

09167-17002

1
Out of stock

12

RACK This part replaces 23165-28300.

23165-46000

1
Out of stock

13

BEARING

09263-10002

1
Out of stock

14

WASHER | 10x24x1

08212-10241

1
Out of stock

15

.E-RING This part replaces 08332-11088.

08332-1108A

1
Out of stock

16

PINION, RELEASE

23261-28300

1
Out of stock

17

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

1
Out of stock

18

BOLT

09135-06009

1
Out of stock

19

WASHER This part replaces 08322-21068.

08322-01067

1
Out of stock

20

ARM, RELEASE

23271-28300

1
Out of stock

21

BOLT This part replaces 01112-06258.

01500-06257

1
Out of stock

22

WASHER This part replaces 08322-21068.

08322-01067

1
Out of stock

23

.NUT This part replaces 08311-11068.

08310-00067

1
Out of stock
