1978 Suzuki RM125 Gear Shifting (RM125A Diagram

← All diagrams

Find the part on the Gear Shifting (RM125A diagram for your 1978 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

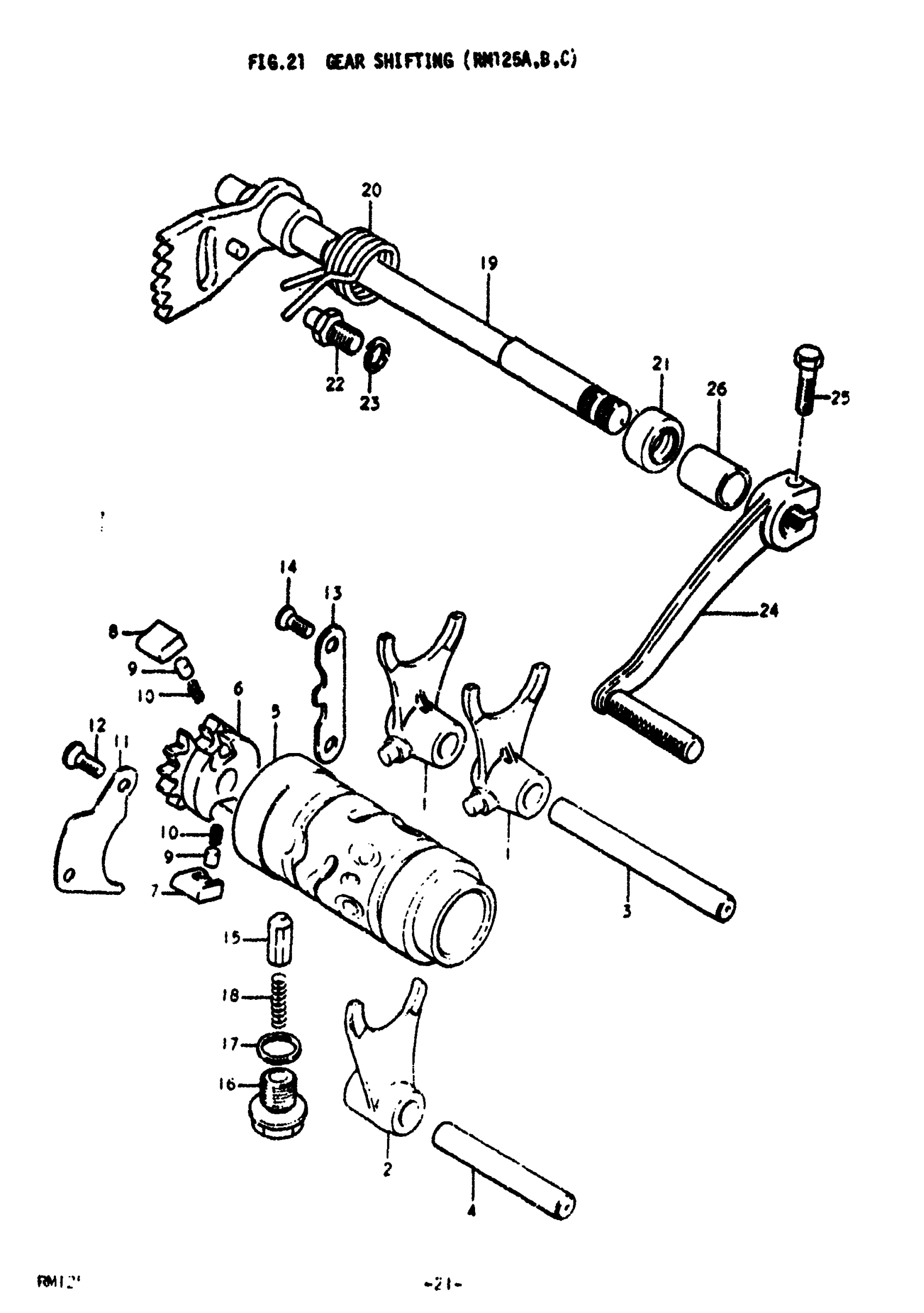

1978 Suzuki RM125 Gear Shifting (RM125A Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK, NO.1 | A,B,C This part replaces 25211-41300.

25211-41301

2
Out of stock

2

NO DESCRIPTION AVAILABLE | A,B; TO 25221-41301 This part replaces 25221-41300.

25221-41X00

1
Out of stock

2

NO DESCRIPTION AVAILABLE | C This part replaces 25221-41301.

25221-41X00

1
Out of stock

3

SHAFT, GEAR SHI | A,B,C This part replaces 25411-16400.

25411-48001

1
Out of stock

4

SHAFT, NO.1 | A,B,C This part replaces 25421-40000.

25421-35410

1
Out of stock

5

CAM | A,B,C This part replaces 25310-41300.

25310-14100

1
Out of stock

6

GEAR, GEAR SHIFT CAM DRIVEN | A,B,C This part replaces 25322-11000.

25322-31310

1
Out of stock

7

PAWL, GEAR SHIFT NO.1 | A,B,C This part replaces 25323-11000.

25323-34201

1
Out of stock

8

PAWL, GEAR SHIFT NO.2 | A,B,C This part replaces 25324-11000.

25324-34201

1
Out of stock

9

PIN | A,B,C

09261-05003

2
Out of stock

10

SPRING | A,B,C

09440-04003

2
Out of stock

11

LIFTER, PAWL | A,B,C

25331-11001

1
Out of stock

12

SCREW | A,B,C This part replaces 02122-06128.

02122-06127

2
Out of stock

13

GUIDE, CAM | A,B,C

25341-40001

1
Out of stock

14

SCREW | A,B,C This part replaces 02122-06128.

02122-06127

2
Out of stock

15

STOPPER, CAM | A,B,C This part replaces 25351-11000.

25351-11010

1
Out of stock

17

GASKET | A; 14.2x20.5x1.2

09168-14006

1
Out of stock

17

GASKET | B,C; 14.7x19.5x2.0

09168-14004

1
Out of stock

18

SPRING | A This part replaces 09440-05002.

09440-05007

1
Out of stock

18

SPRING | B,C

09440-05007

1
Out of stock

19

GEAR SHIFT SHAF | A,B,C This part replaces 25510-41101.

25510-41X00

1
Out of stock

20

SPRING | A,B,C

09444-26013

1
Out of stock

21

OIL SEAL (12X22X9) | A,B,C; FROM 09285-12001 This part replaces 09285-12002.

09285-12006

1
Out of stock

22

STOPPER, ARM | A,B,C This part replaces 25671-01000.

25671-01011

1
Out of stock

24

LEVER, GEAR SHIFTING | A; TO 25610-41301 This part replaces 25610-41300.

25610-41102

1
Out of stock

24

LEVER, GEAR SHIFTING | B,C This part replaces 25610-41301.

25610-41102

1
Out of stock

25

BOLT | A,B,C This part replaces 01107-06208.

01500-06207

1
Out of stock

26

CUSHION | A,B,C

09320-13001

1
Out of stock
