1978 Suzuki RM125 Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 1978 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

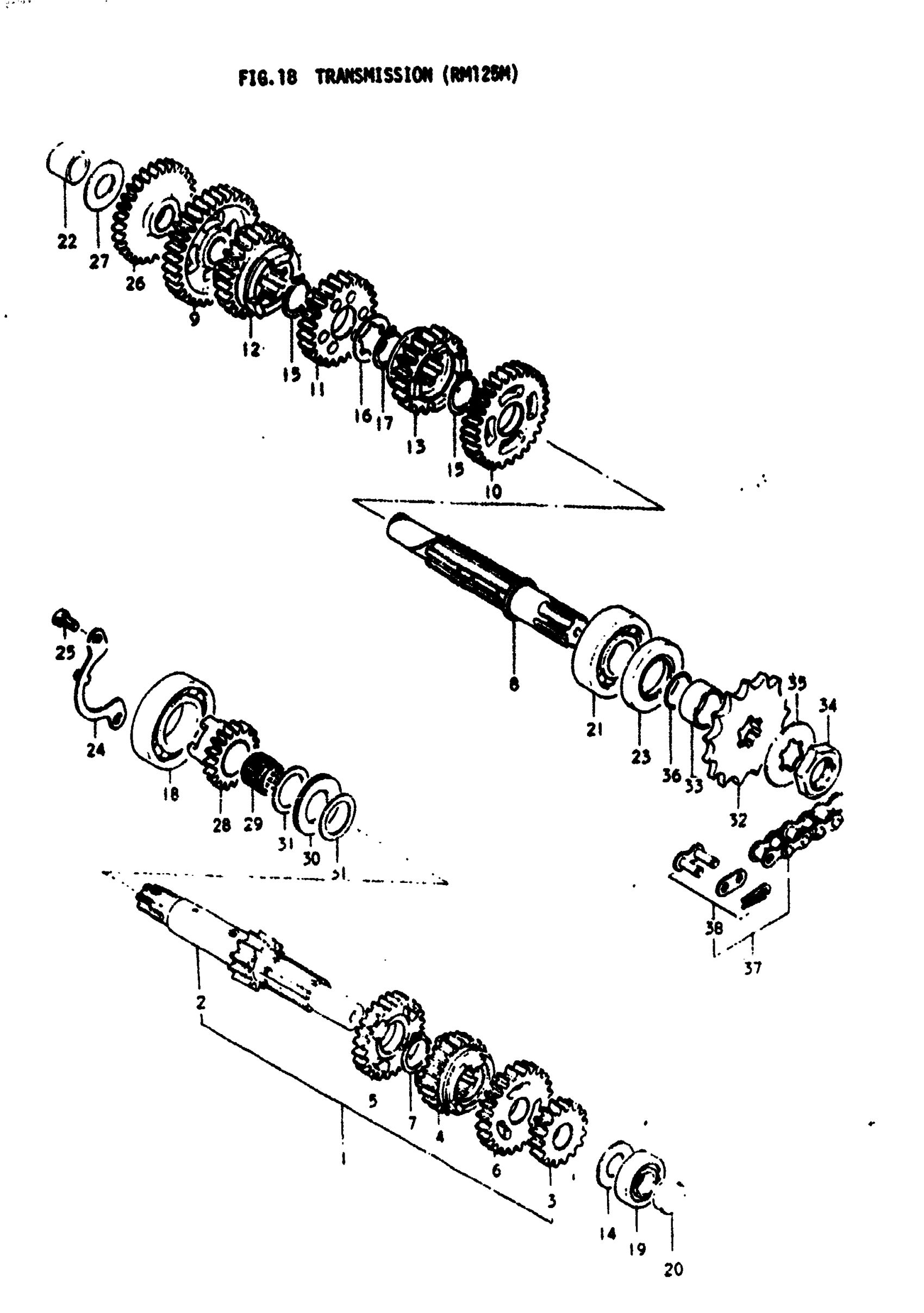

1978 Suzuki RM125 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COUNTERSHAFT ASSY | Includes Item(s) 2 - 7

24120-28304

1
Out of stock

2

COUNTERSHAFT | NT:14

24121-28303

1
Out of stock

3

GEAR, 2ND DRIVE | NT:17

24221-28301

1
Out of stock

4

GEAR, 3RD DRIVE | NT:20

24231-28300

1
Out of stock

5

GEAR, 4TH DRIVE | NT:22

24241-28300

1
Out of stock

6

GEAR, 5TH DRIVE | NT:23

24251-28301

1
Out of stock

7

CIRCLIP This part replaces 09380-20003.

09380-20007

1
Out of stock

8

DRIVESHAFT

24131-28001

1
Out of stock

9

GEAR, 1ST DRIVEN | NT:30

24310-28300

1
Out of stock

10

GEAR, 2ND DRIVEN | NT:27

24321-28300

1
Out of stock

11

GEAR, 3RD DRIVEN | NT:25

24331-28301

1
Out of stock

12

GEAR, 4TH DRIVEN | NT:23

24341-28300

1
Out of stock

12

GEAR, 4TH DRIVEN | NT:23 E.NO.20901~

24341-28301

1
Out of stock

13

GEAR, 5TH DRIVEN | NT:21

24351-28300

1
Out of stock

14

WASHER | 15x30x1 This part replaces 09160-15016.

08211-15301

1
Out of stock

15

CIRCLIP This part replaces 09380-20003.

09380-20007

2
Out of stock

16

LOCK WASHER, LH | 16.2x28x1 This part replaces 09167-20007.

09167-20022

1
Out of stock

17

CIRCLIP

09380-20006

1
Out of stock

18

BALL BEARING This part replaces 08110-60060.

08113-60060

1
Out of stock

19

BEARING

08113-60020

1
Out of stock

20

PLUG

09241-19001

1
Out of stock

21

BEARING, COUNTER SHAFT This part replaces 09262-20009.

09262-20073

1
Out of stock

22

BEARING

09303-15004

1
Out of stock

23

SEAL,OIL,25X44X This part replaces 09283-25009.

09283-25107

1
Out of stock

24

HOLDER, BEARING

24741-28001

1
Out of stock

25

SCREW This part replaces 02112-06108.

02112-06107

2
Out of stock

26

NO DESCRIPTION AVAILABLE | NT:29 This part replaces 26260-28002.

26260-28003

1
Out of stock

27

WASHER This part replaces 09160-15016.

08211-15301

1
Out of stock

28

GEAR, KICK STARTER DRIVEN | NT:16

26281-25001

1
Out of stock

29

BEARING

09263-19006

1
Out of stock

30

BEARING

09263-21006

1
Out of stock

31

WASHER | 21x30x0.8

09160-21007

2
Out of stock

32

SPROCKET,ENGINE | NT:14 This part replaces 27511-36200.

27511-13700

1
Out of stock

32

SPROCKET, ENGINE | NT:13 OPT

27511-24901

1
Out of stock

33

SPACER | 20x25x12.5

09180-20039

1
Out of stock

34

NUT

09140-20001

1
Out of stock

35

LOCK WASHER | 16.5x38x0.8 This part replaces 09167-20006.

09167-20009

1
Out of stock

36

O RING

09280-20001

1
Out of stock

37

CHAIN, DRIVE (428x132L) | #429x126l; Includes Item(s) 38 This part replaces 27600-28311.

27600-40220

1
Out of stock

38

JOINT, CHAIN

27620-28310

1
Out of stock
