1978 Suzuki RM125 Fuel Tank (RM125A Diagram

← All diagrams

Find the part on the Fuel Tank (RM125A diagram for your 1978 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

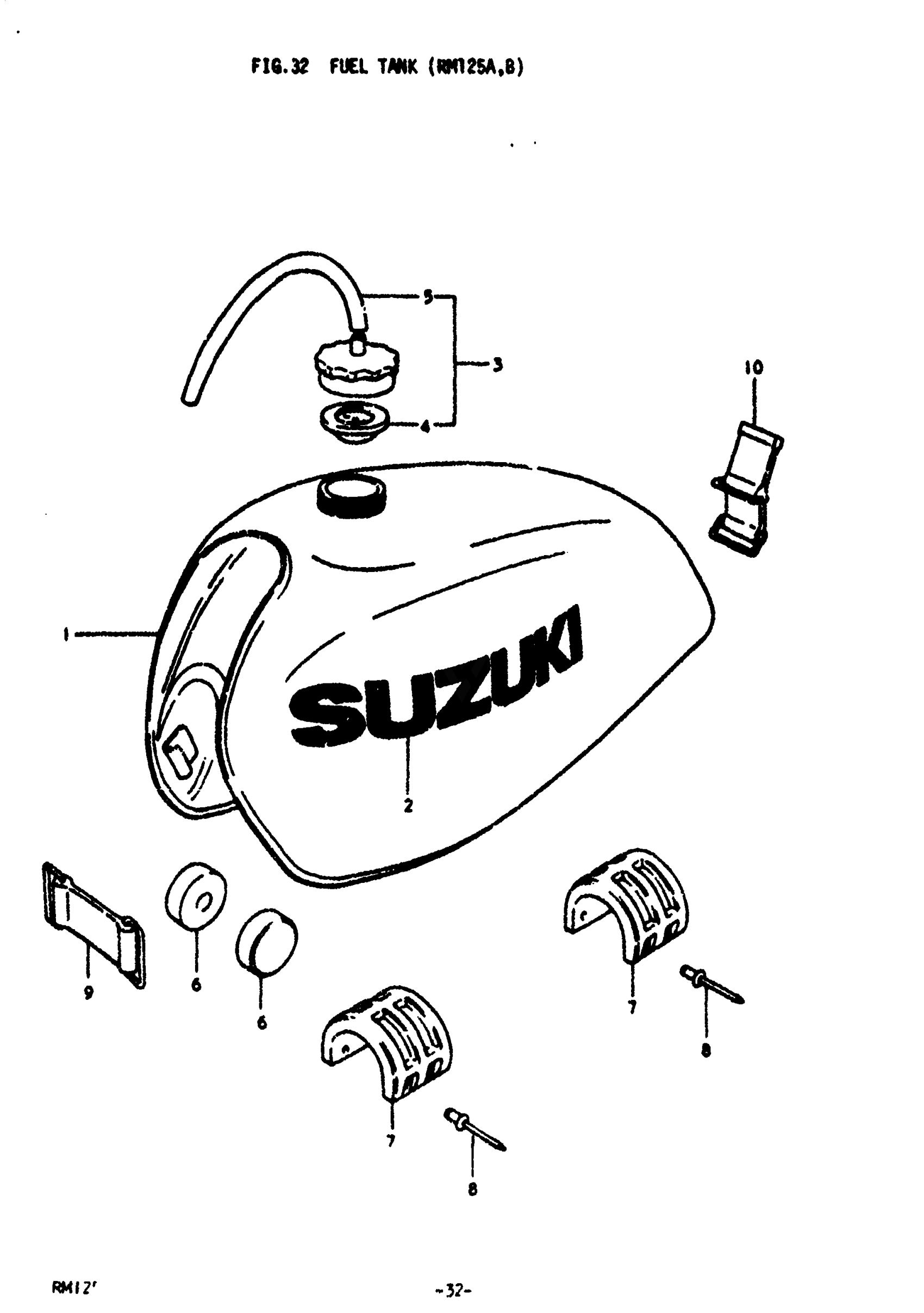

1978 Suzuki RM125 Fuel Tank (RM125A Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK | A,B; Includes Item(s) 2

44110-41300-163

1
Out of stock

2

EMBLEM,BLACK | A,B This part replaces 68111-41100-019.

68111-32B10-019

2
Out of stock

3

CAP ASSY, FUEL TANK | A,B; Includes Item(s) 4 - 5

44200-28300

1
Out of stock

4

GASKET | A,B

44248-28300

1
Out of stock

6

CUSHION | A,B This part replaces 09329-10007.

09329-10026

2
Out of stock

7

CUSHION, FUEL TANK CENTER | A,B

44540-40001

2
Out of stock

8

RIVET | A,B

09229-03009

8
Out of stock

9

BAND | A,B

09462-00069

1
Out of stock

10

BAND | A,B

09462-00061

1
Out of stock
