1978 Suzuki RM125 Gear Shifting Diagram

← All diagrams

Find the part on the Gear Shifting diagram for your 1978 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

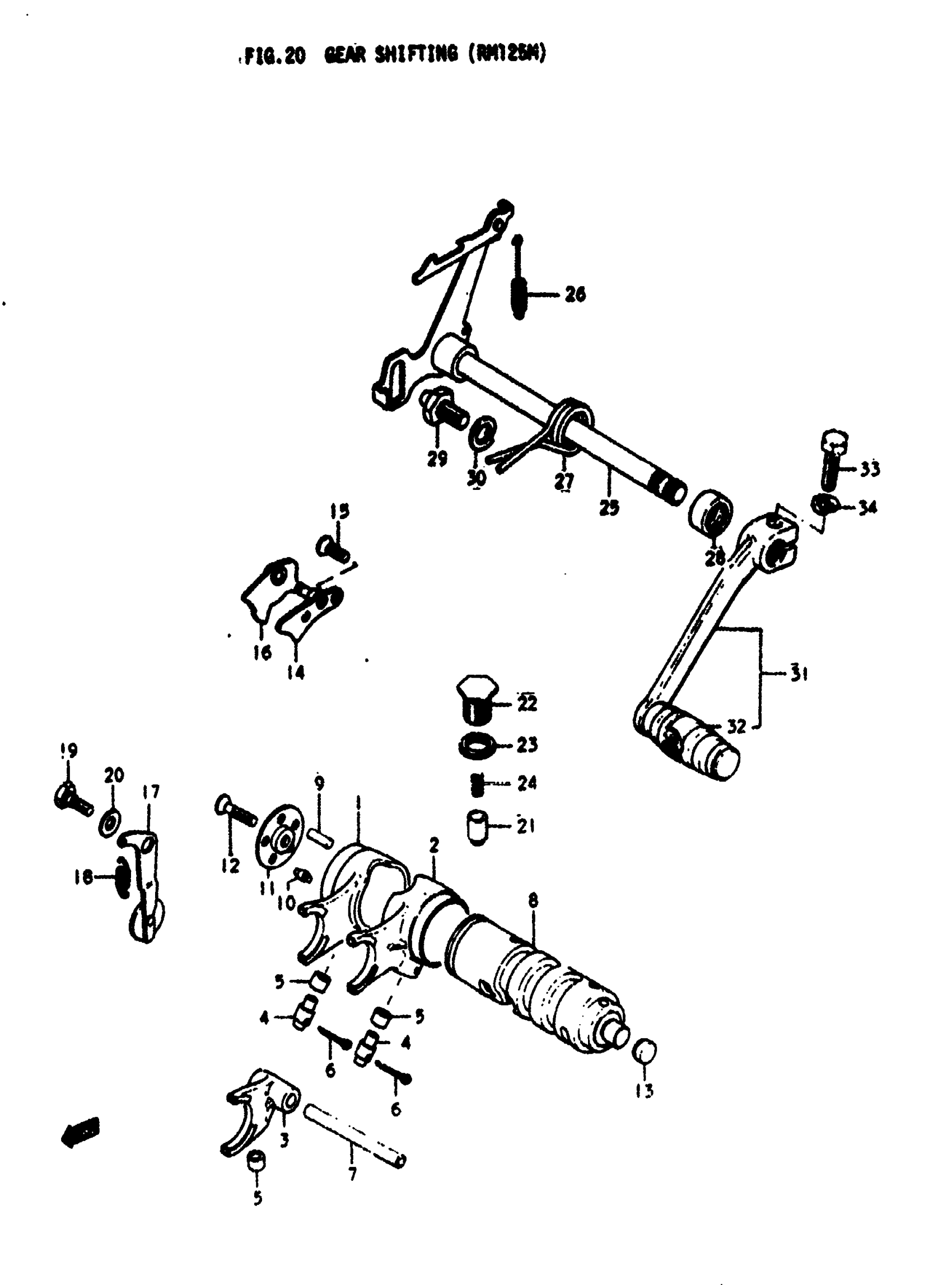

1978 Suzuki RM125 Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK,GEAR SHIFT This part replaces 25211-28001.

25211-28002

1
Out of stock

1

FORK, GEAR SHIFTING NO.1 | E.NO.20901~

25211-28300

1
Out of stock

2

FORK,GEAR SHIFT This part replaces 25221-28001.

25221-28002

1
Out of stock

3

FORK, GEAR SHIFTING NO.3

25231-28001

1
Out of stock

4

PIN

09209-10002

2
Out of stock

5

ROLLER | 6x9.8x6 This part replaces 09180-06004.

09180-06086

3
Out of stock

6

2

$1.31

In stock

7

SHAFT, GEAR SHIFTING

25411-05100

1
Out of stock

8

CAM, GEAR SHIFTING

25310-28701

1
Out of stock

9

ROLLER (4X13.8)

09261-04002

4
Out of stock

10

PIN

09209-04012

1
Out of stock

11

RETAINER, DRIVE PIN

25322-28030

1
Out of stock

12

SCREW This part replaces 02122-06208.

02122-0620A

1
Out of stock

13

PLUG

09243-12002

1
Out of stock

14

GUIDE, CAM

25340-12101

1
Out of stock

15

SCREW This part replaces 02122-06168.

02122-06167

2
Out of stock

16

PAWL, CAM STOPPER

25370-12101

1
Out of stock

17

STOPPER, CAM NO.1

25350-28001

1
Out of stock

18

SPRING

09443-07014

1
Out of stock

19

BOLT

09111-06003

1
Out of stock

20

WASHER | 6.5x16x2.3

09160-06022

1
Out of stock

21

STOPPER, CAM NO.2

25351-28700

1
Out of stock

22

HOUSING, CAM STOPPER

25352-28700

1
Out of stock

23

GASKET

09168-14004

1
Out of stock

24

SPRING

09440-05017

1
Out of stock

25

NO DESCRIPTION AVAILABLE This part replaces 25510-28300.

25510-283V0

1
Out of stock

26

SPRING

09443-06008

1
Out of stock

27

SPRING

09444-26008

1
Out of stock

28

OIL SEAL (12X22X9) | 12x18.5x5 This part replaces 09285-12002.

09285-12006

1
Out of stock

29

STOPPER, ARM

25671-19000

1
Out of stock

30

LOCK WASHER This part replaces 08321-21108.

08321-01107

1
Out of stock

31

LEVER ASSY,GEAR | Includes Item(s) 32 This part replaces 25600-16500.

25600-16521

1
Out of stock

32

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

1
Out of stock

33

BOLT This part replaces 01112-06208.

01500-06207

1
Out of stock

34

1

$2.28

In stock
