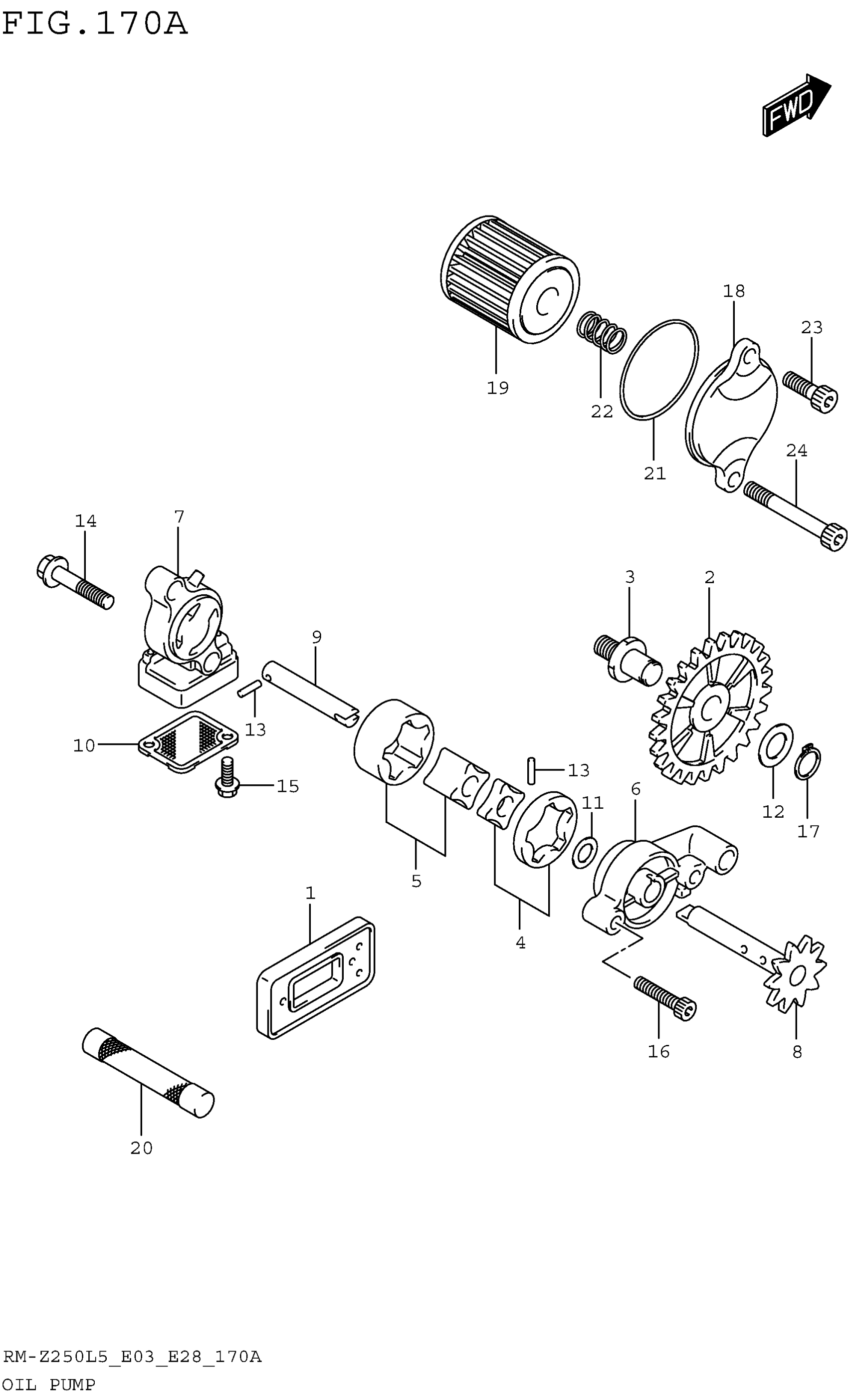

Suzuki RM-Z250L5 (2015) OIL PUMP Diagram

#

Description
Price

1

VALVE ASSY, OIL REED

13150-28H10

$46.95

2

GEAR, OIL PUMP IDLE (NT:25)

16321-49H00

$89.00

3

SHAFT, OIL PUMP IDLE GEAR

16322-49H00

$53.07

4

ROTOR SET, OIL PUMP NO.1

16410-49H00

$31.80

5

ROTOR SET,OIL PUMP

16410-45G00

$37.39

6

COVER, OIL PUMP NO.1

16430-49H01

$60.47

7

COVER, OIL PUMP NO.2

16433-49H10

$59.98

8

SHAFT, OIL PUMP DRIVEN GEAR

16440-49H00

$76.43

9

SHAFT,OIL PUMP NO.2

16443-28H00

$21.88

10

STRAINER, OIL PUMP NO.2

16530-49H00

$11.20

11

SHIM (8X12X0.8)

09181-08106

$2.38

12

SHIM (10X18X0.5)

09181-10158

$1.97

13

PIN (2.5X11.8)

09261-02008

$1.48

14

BOLT

01547-0635A

$2.31

15

BOLT

07120-0512A

$2.29

16

BOLT

07130-0520A

$2.40

17

CIRCLIP

08331-31109

$1.77

18

CAP, ENGINE OIL FILTER OUTER

16315-35G40

$25.42

19

FILTER, ENGINE OIL

16510-35G00

$9.01

20

STRAINER, ENGINE OIL

16520-10H10

$43.21

21

O-RING (D:2,ID:38.5) This part replaces 09280-39001.

09280-39002

$2.85

22

SPRING

09440-10038

$2.80

23

BOLT

01547-0616A

$2.01

24

BOLT

01547-0635A

$2.31
