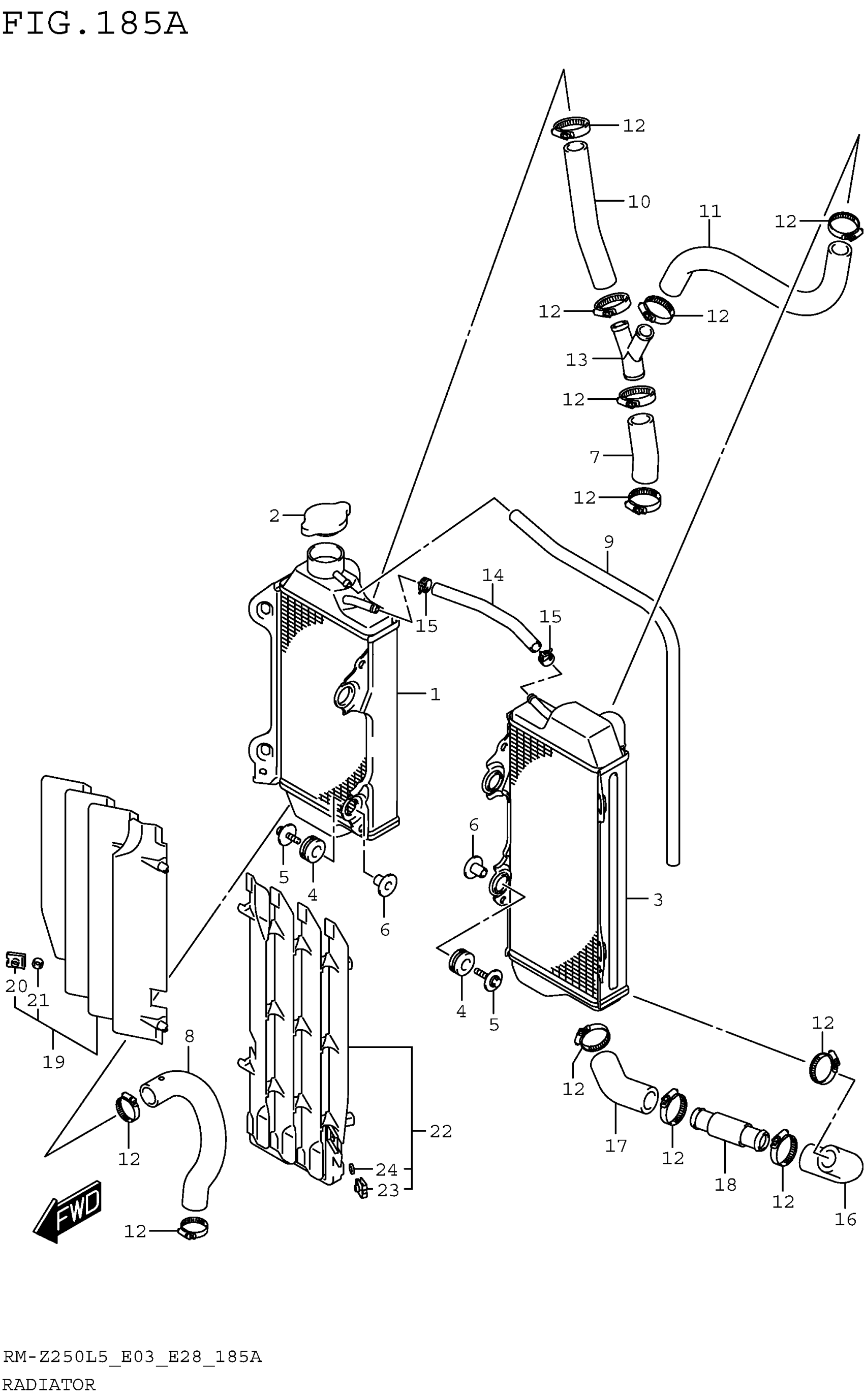

Suzuki RM-Z250L5 (2015) RADIATOR Diagram

#

Description
Price

1

RADIATOR, WATER, RH

17710-49H10

$508.02

2

CAP, RADIATOR (1.1)

17730-08J00

$38.90

3

RADIATOR, WATER, LH

17720-49H10

$477.25

4

CUSHION, RADIATOR SUPPORT

17787-19A00

$3.26

5

BOLT (6X25)

09116-06186

$2.66

6

SPACER (6.5X10.5X14.1)

09180-06243

$4.92

7

HOSE, INLET NO.1

17851-49H10

$16.92

8

HOSE, OUTLET NO.1

17852-49H10

$22.00

9

HOSE (5X8X2000) | L:1000->700 This part replaces 09351-50803-00A.

09351-50803-00B

$8.21

10

HOSE, INLET NO.2

17853-49H10

$21.23

11

HOSE, INLET NO.3

17854-49H20

$27.25

12

CLAMP

09402-28513

$6.31

13

JOINT, RADIATOR HOSE

17856-10H00

$9.70

14

HOSE, BYPASS

17855-35G00

$14.07

15

CLIP

09401-11415

$2.24

16

HOSE, OUTLET NO.2

17855-49H10

$15.50

17

HOSE, OUTLET NO.3

17858-49H00

$12.23

18

PIPE, OUTLET

17859-49H00

Unavailable

19

LOUVER, RADIATOR RH

17801-49H00

$39.05

20

.NUT

09148-06017

$2.93

21

.SPACER (6.2X10X2.2)

09180-06129

$1.47

22

LOUVER, RADIATOR LH

17802-49H00

$39.80

23

.NUT

09148-06017

$2.93

24

.SPACER (6.2X10X2.2)

09180-06129

$1.47
