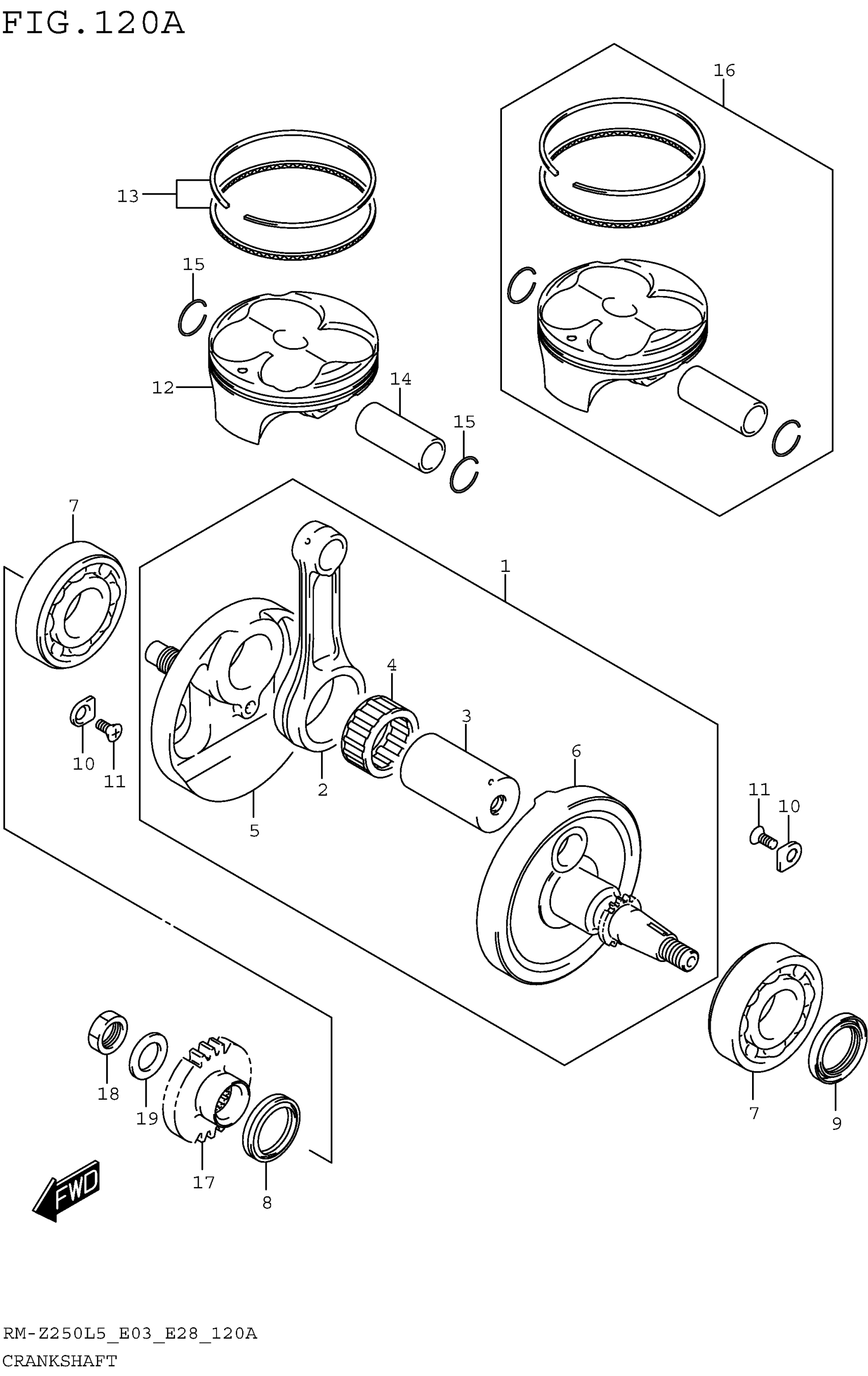

Find the part on the Crankshaft diagram for your 2015 Suzuki RM-Z250L5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Suzuki RM-Z250L5 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$676.87

In stock

2

ROD, CONNECTING

12161-49H00-0B0

1

$178.92

In stock

3

1

$76.23

In stock

4

BEARING (30X38X18)

09263-30060-0B0

1

$106.40

In stock

5

CRANKSHAFT, RH

12220-49H00

1
Out of stock

6

CRANKSHAFT, LH

12261-49H00

1
Out of stock

7

BEARING (30X63X16)

09262-30122

2

$84.01

In stock

9

1

$9.12

In stock

10

4

$5.33

In stock

11

SCREW (6X12)

09126-06011

4
Out of stock

12

PISTON (YELLOW)

12111-49H10-0F0

1

$85.04

In stock

13

RING SET, PISTON

12140-10810

1

$48.22

In stock

14

PIN, PISTON

12151-49H00

1

$18.72

In stock

15

SNAP RING

09381-16001

2

$1.80

In stock

16

PISTON KIT | OPT

12110-49820

1

$291.48

In stock

17

1

$107.60

In stock

18

NUT

09140-16037

1

$15.53

In stock

19

WASHER

09164-16002

1
Out of stock
