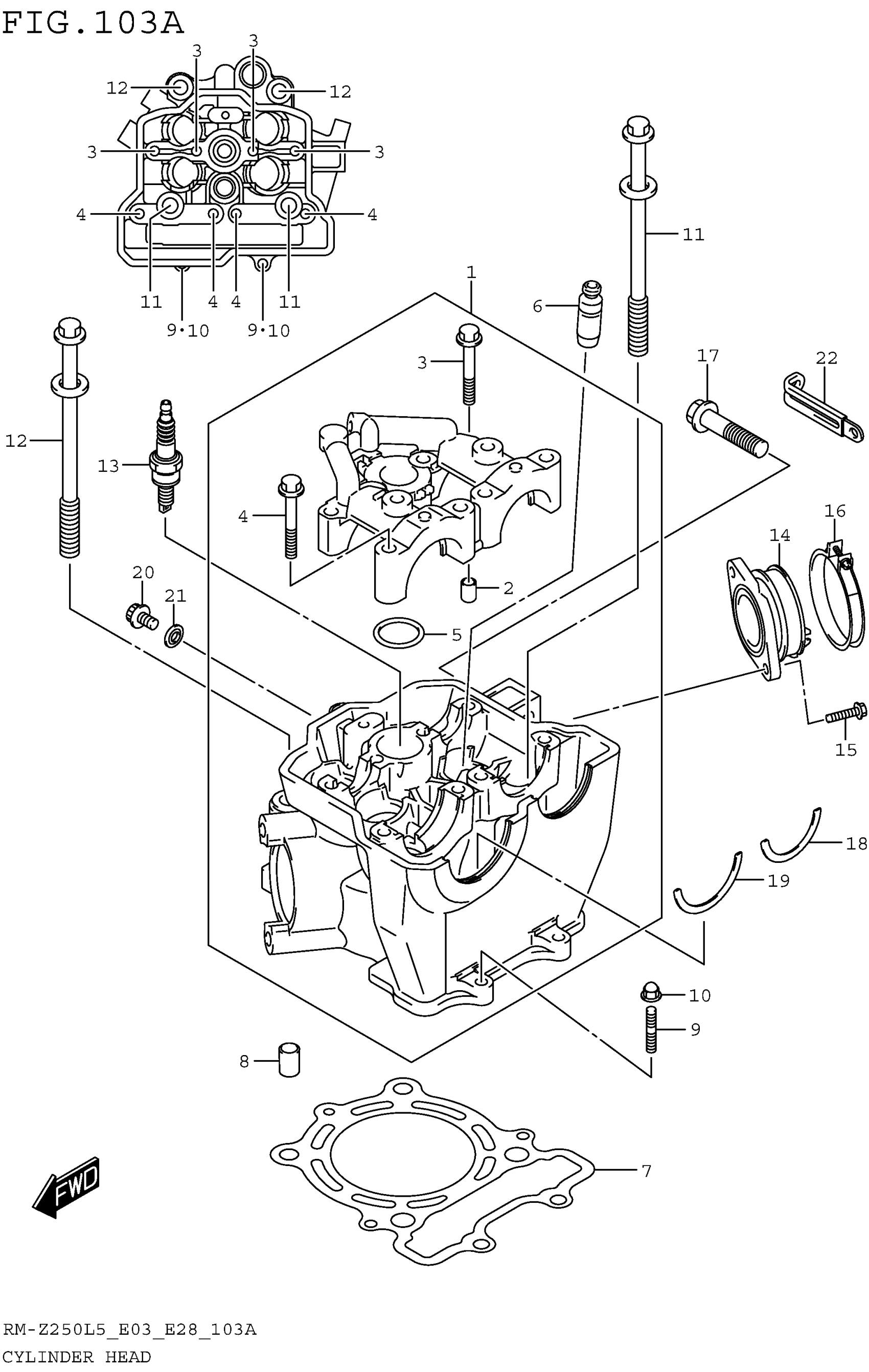

Suzuki RM-Z250L5 (2015) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER This part replaces 11100-49H01.

11100-49H10

$817.15

2

PIN (8X11)

09206-08001

$1.77

3

BOLT (6X40)

09103-06266

$2.13

4

BOLT (6X45)

09103-06293

$2.55

5

O RING (D:2.4,ID:25.7)

09280-26007

$5.97

6

GUIDE, VALVE (OS.0.3) | OPT

11115-10H70

$44.28

7

GASKET, CYLINDER HEAD

11141-49H00

$22.23

8

PIN

04211-13189

$2.19

9

STUD BOLT

01421-0620A

$1.89

10

NUT

08313-2006A

$1.97

11

BOLT, CYLINDER HEAD (10X124)

11117-10H00

$13.64

12

BOLT, CYLINDER HEAD (10X124)

11117-10H10

$21.45

13

SPARK PLUG (CR8EIB-10) | NGK

09482-00584

$10.64

14

PIPE ASSY,INTAK This part replaces 13101-49H00.

13101-49H01

$66.23

15

BOLT

01547-0620A

$2.01

16

CLAMP, INTAKE PIPE

13170-49H00

$22.32

17

BOLT (10X40)

09103-10055

$5.17

18

C-RING

12749-49H00

$4.83

19

C-RING

12749-49H10

$5.47

20

.BOLT

07120-0610A

$2.58

21

GASKET (5.8X13X1.2)

09168-06023

$2.01

22

CLAMP (L:45)

09404-06429

$1.82
