2009 Suzuki RM-Z250 Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2009 Suzuki RM-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

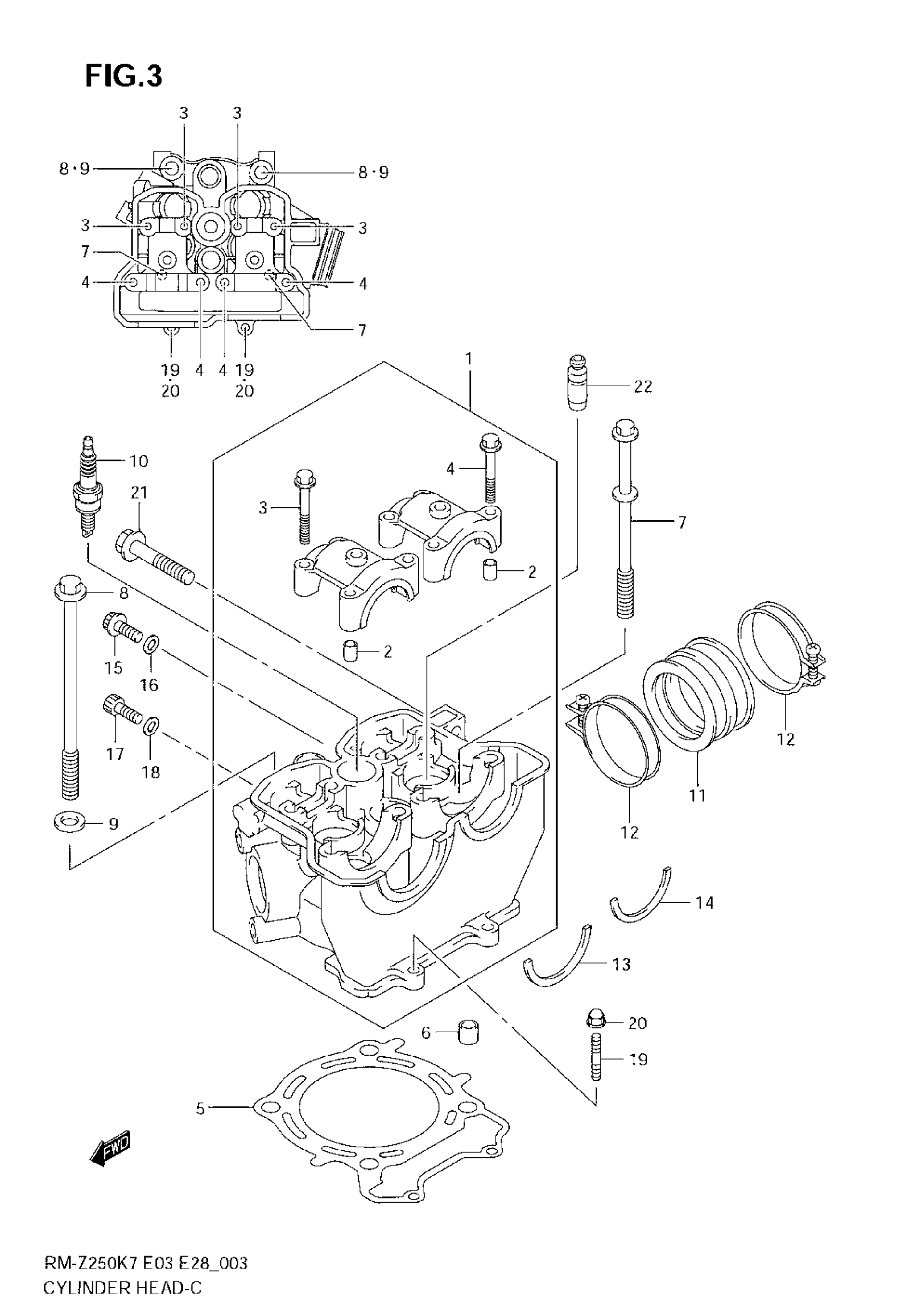

2009 Suzuki RM-Z250 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$1,082.97

In stock

2

PIN, CAMSHAFT HOUSING

09206-08001

4
Out of stock

3

4

$3.35

In stock

4

4

$3.33

In stock

5

GASKET, CYLINDER HEAD

11141-10H00

1

$49.52

In stock

6

PIN, CYL HEAD KNOCK

04211-13189

2
Out of stock

7

BOLT, CYLINDER HEAD

11117-10H00

2

$14.86

In stock

8

BOLT, CYLINDER HEAD (10X124)

09103-10407

2
Out of stock

9

.GASKET (10.2X20X2.3)

09168-10031

2

$2.18

In stock

10

1

$15.22

In stock

11

1

$19.60

In stock

12

2

$17.63

In stock

13

C RING

12749-10H00

1

$4.27

In stock

14

1

$3.55

In stock

15

BOLT, OIL CHECK

07120-0610B

1

$2.60

In stock

16

GASKET

09168-06004

1
Out of stock

17

BOLT

07130-0812B

1
Out of stock

18

GASKET

09168-08015

1

$2.92

In stock

19

BOLT, STUD

01421-0620A

2
Out of stock

20

NUT

08313-2006A

2

$2.10

In stock

21

BOLT, ENG MTG (10X50)

09103-10235

1

$6.15

In stock

22

4

$44.28

In stock
← Cylinder Cylinder Head Cover →
