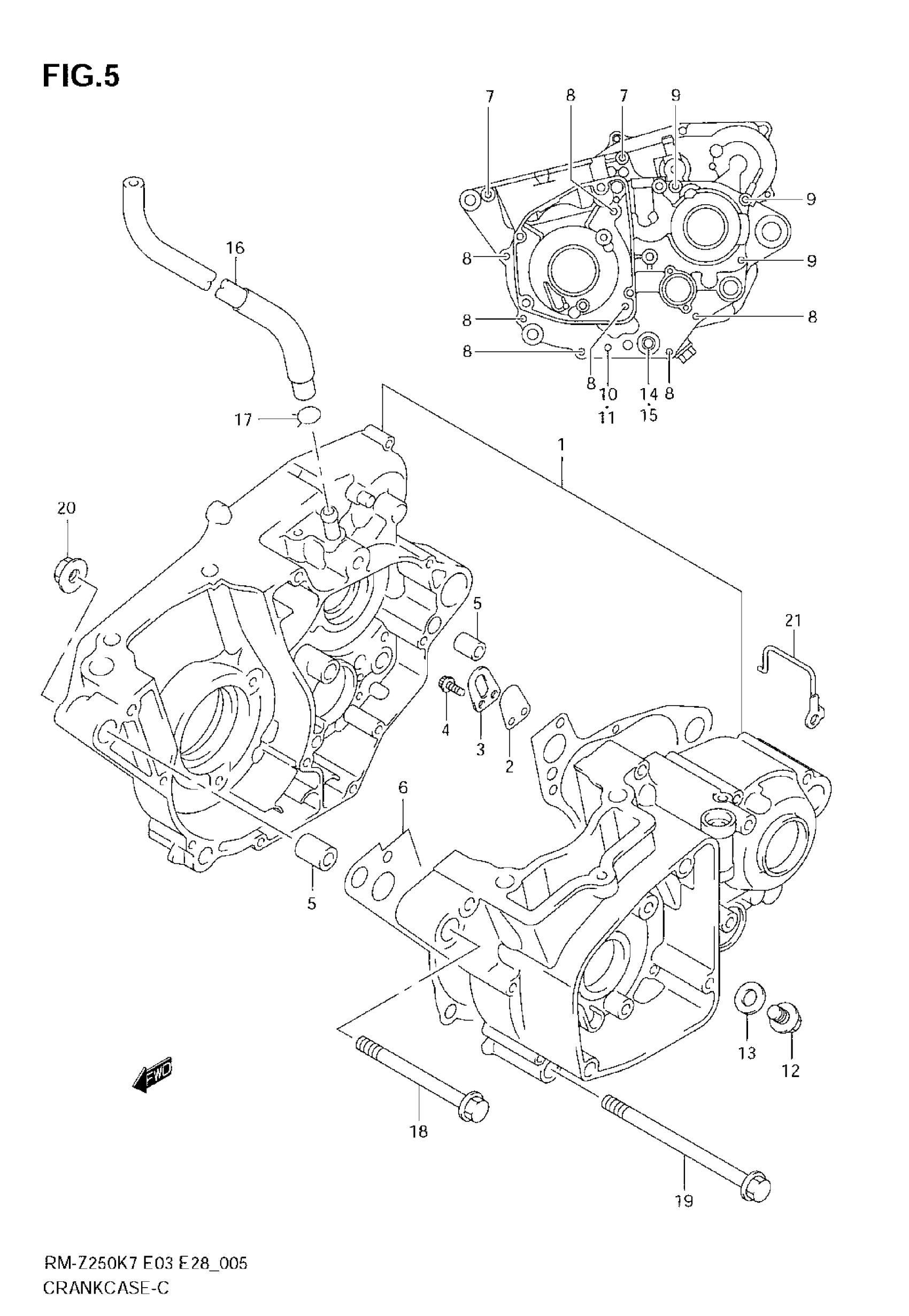

Suzuki RM-Z250 (2009) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 11 This part replaces 11300-10881.

11300-10882

$1,366.43

2

VALVE, CRANKCASE REED

11322-35G00

$11.83

3

STOPPER, CRANKCASE REED VALVE

11323-35G00

$10.62

4

BOLT, REED VALVE

07120-0512B

$2.71

5

PIN, CRANKCASE

09206-13020

$2.44

6

GASKET, CRANKCASE

11481-10H00

$28.80

7

BOLT, CRANKCASE (6X40)

01547-0640A

$2.38

8

BOLT, CRANKCASE (6X55)

01547-0655A

$2.53

9

BOLT, CRANKCASE (6X70)

01547-0670A

$2.80

10

PLUG, OIL DRAIN

07120-0610B

$2.50

11

GASKET, OIL DRAIN PLUG

09168-06004

$1.46

12

PLUG, OIL DRAIN

09247-12006

$2.80

13

GASKET

09168-12002

$1.63

14

CAP, ENG OIL STRAINER This part replaces 16316-10H00.

16316-10H01

$25.69

15

GASKET

09168-16003

$1.99

16

HOSE,BREATHER This part replaces 11332-35G10.

11332-49H11

$25.25

17

CLIP, BREATHER HOSE

09401-13301

$2.95

18

BOLT (10X96)

09103-10387

$8.48

19

BOLT (10X120)

09103-10388

$5.64

20

NUT

09159-10078

$2.81

21

GUIDE, CARBURETOR HOSE

13694-35G00

$10.08
