2009 Suzuki RM-Z250 Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 2009 Suzuki RM-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

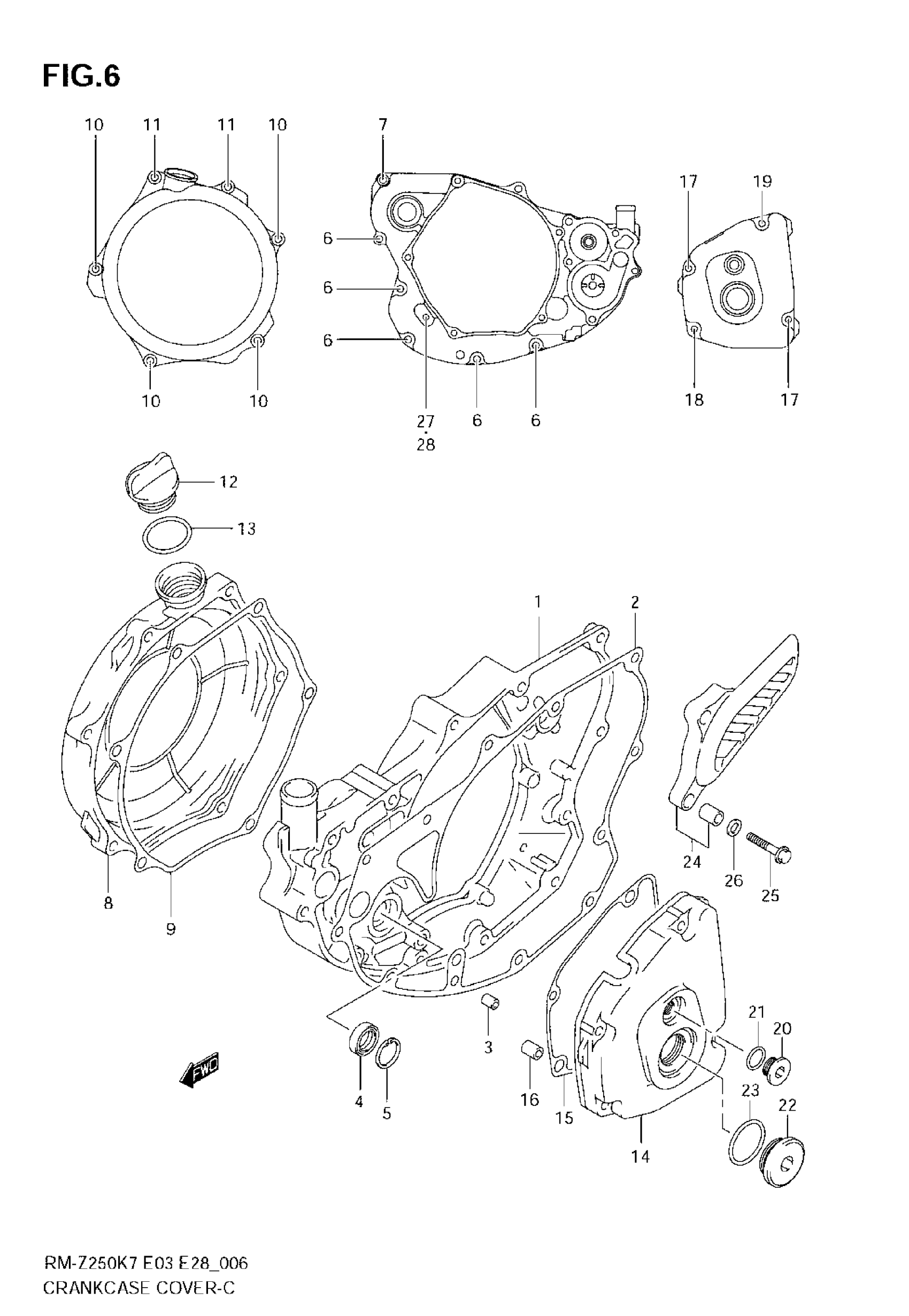

2009 Suzuki RM-Z250 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH INNER

11340-10H00

1
Out of stock

2

GASKET, CLUTCH COVER

11482-10H00

1
Out of stock

3

PIN

04211-09109

2
Out of stock

4

SEAL,OIL (12X22X6)

09282-12012

1
Out of stock

5

CIRCLIP This part replaces 08331-4124A.

08331-41249

1
Out of stock

6

BOLT (6X25)

01547-0625A

5
Out of stock

7

BOLT

01547-0630A

1
Out of stock

8

COVER, CLUTCH OUTER

11371-10H00

1
Out of stock

9

GASKET, CLUTCH COVER OUTER

11484-10H00

1
Out of stock

10

BOLT, OUTER COVER (6X25)

01547-0625A

4
Out of stock

11

BOLT, OUTER COVER (6X60)

01547-0660A

2
Out of stock

12

.PLUG This part replaces 09259-20008.

09259-20008-XC0

1
Out of stock

13

O RING

09280-17003

1
Out of stock

14

COVER, MAGNETO

11351-10H00

1
Out of stock

15

GASKET, MAGNETO COVER

11483-10H00

1
Out of stock

16

PIN

04211-09109

2
Out of stock

17

BOLT

01547-0630A

2
Out of stock

18

BOLT (6X35)

01547-0635A

1
Out of stock

19

BOLT (6X35) | MODEL K7

09103-06252

1
Out of stock

19

BOLT (6X40) | MODEL K8/K9

01547-0640A

1
Out of stock

20

PLUG, T.D.C.

09248-12007

1
Out of stock

21

O RING (D:1.9,ID:9.8)

09280-10016

1
Out of stock

22

PLUG, CRANK HOLE

09259-26011

1
Out of stock

23

O RING (D:3.1,ID:22.7)

09280-22008

1
Out of stock

24

COVER, ENGINE SPROCKET

11360-35G00

1
Out of stock

25

BOLT

01547-0630A

2
Out of stock

26

WASHER

08322-0106B

2
Out of stock

27

BOLT, OIL CHECK

07120-0610B

1
Out of stock

28

GASKET

09168-06004

1
Out of stock
