2009 Suzuki RM-Z250 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2009 Suzuki RM-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

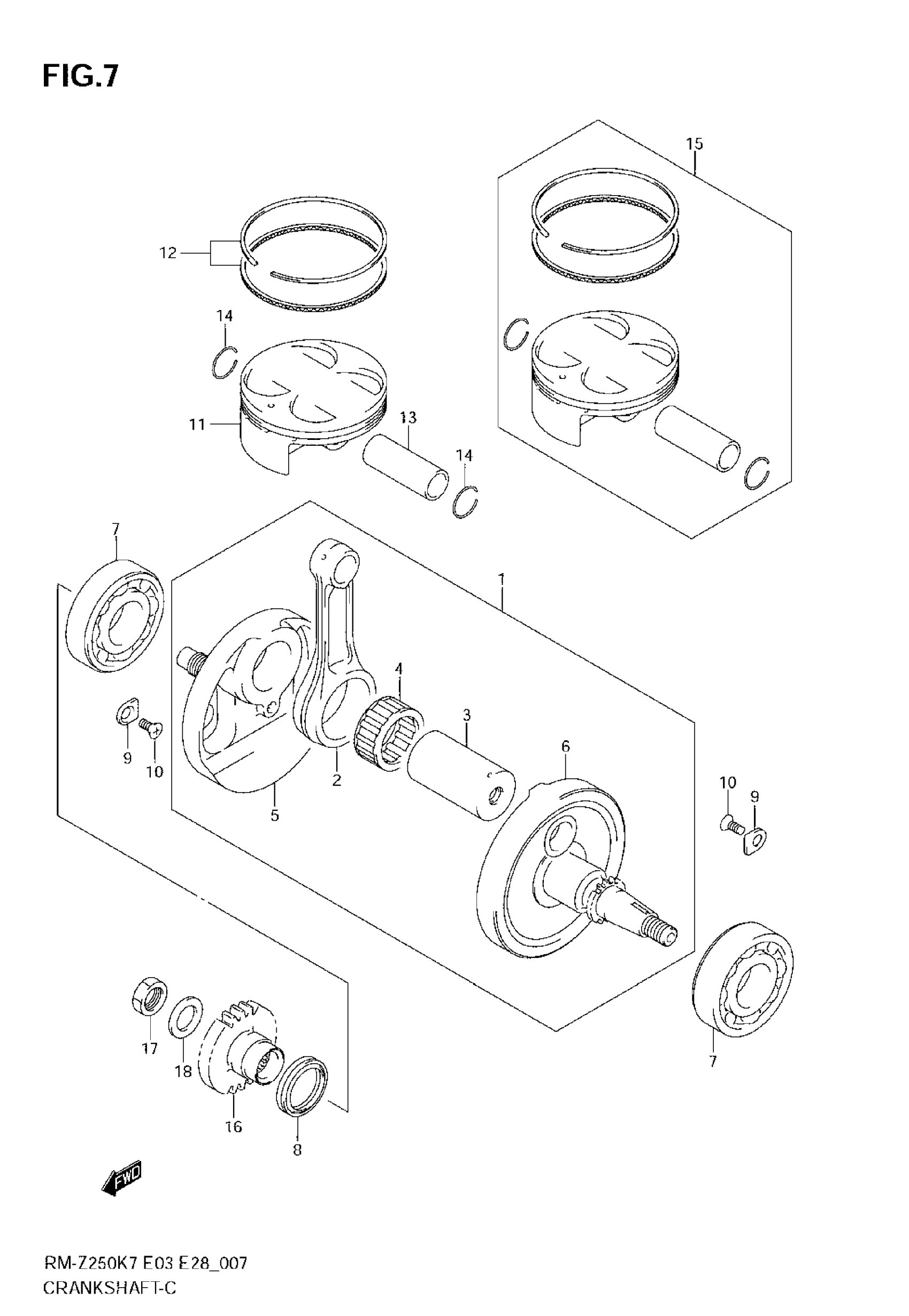

2009 Suzuki RM-Z250 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY | Includes Item(s) 2 - 6 This part replaces 12200-10H10.

12200-10H11

1
Out of stock

2

ROD, CONNECTING This part replaces 12161-10H10-0B0.

12161-49H00-0B0

1
Out of stock

3

PIN This part replaces 12210-10H10.

12210-10H11

1
Out of stock

4

BEARING (30X38X18) This part replaces 09263-30054-0B0.

09263-30060-0B0

1
Out of stock

5

CRANKSHAFT, RH

12220-10H10

1
Out of stock

6

CRANKSHAFT, LH

12261-10H10

1
Out of stock

7

BEARING

09262-30117

2
Out of stock

8

SEAL,OIL (30X40X7) This part replaces 09283-30061.

09283-30076

1
Out of stock

9

RETAINER

24741-37F00

4
Out of stock

10

SCREW

09126-06011

4
Out of stock

11

PISTON | MODEL K7 This part replaces 12111-10H10-0F0.

12111-10H20-0F0

1
Out of stock

11

PISTON | MODEL K8/K9

12111-10H20-0F0

1
Out of stock

12

RING SET, PISTON

12140-10810

1
Out of stock

13

PIN, PISTON

12151-10H00

1
Out of stock

14

CIRCLIP

09381-16001

2
Out of stock

15

PISTON KIT INC.REF.NO.11%14 | MODEL K7 OPT NOT SHOWN This part replaces 12110-10810.

12110-10820

1
Out of stock

15

PISTON KIT INC.REF.NO.11%14 | MODEL K8/K9 OPT NOT SHOWN

12110-10820

1
Out of stock

16

GEAR, PRIMARY DRIVE

21111-10H00

1
Out of stock

17

NUT

09140-16036

1
Out of stock

18

WASHER

09164-16002

1
Out of stock
