2009 Suzuki RM-Z250 CAM Chain Diagram

← All diagrams

Find the part on the CAM Chain diagram for your 2009 Suzuki RM-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

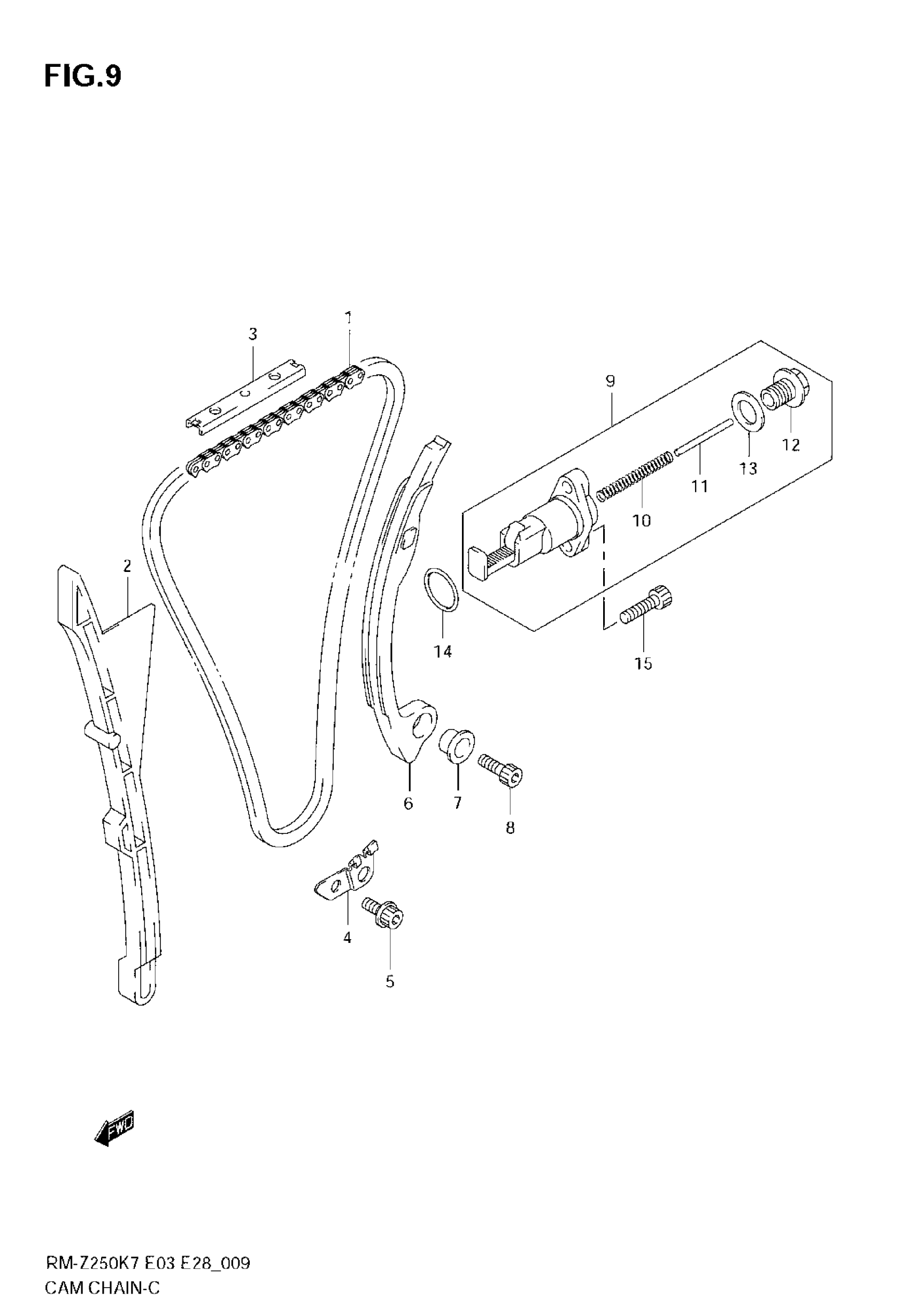

2009 Suzuki RM-Z250 CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN, CAM SHAFT DRIVE

12760-10H00

1
Out of stock

2

GUIDE, CAM CHAIN NO.1

12771-10H00

1
Out of stock

3

GUIDE,CAM CHAIN NO.2 This part replaces 12782-35G00.

12782-35G01

1
Out of stock

4

RETAINER, CAM CHAIN GUIDE

12773-10H00

1
Out of stock

5

BOLT

07120-0610B

1
Out of stock

6

TENSIONER,CAM C This part replaces 12811-10H00.

12811-10H01

1
Out of stock

7

SPACER

12812-35G00

1
Out of stock

8

BOLT

07130-0616B

1
Out of stock

9

ADJUSTER ASSY, TENSIONER | Includes Item(s) 10 - 13

12830-10H00

1
Out of stock

10

SPRING

12831-10H00

1
Out of stock

11

BAR

12836-10H00

1
Out of stock

12

PLUG

12833-10H00

1
Out of stock

13

GASKET

12837-24F10

1
Out of stock

14

O RING, ADJUSTER

09280-19001

1
Out of stock

15

BOLT

07130-0625B

2
Out of stock
