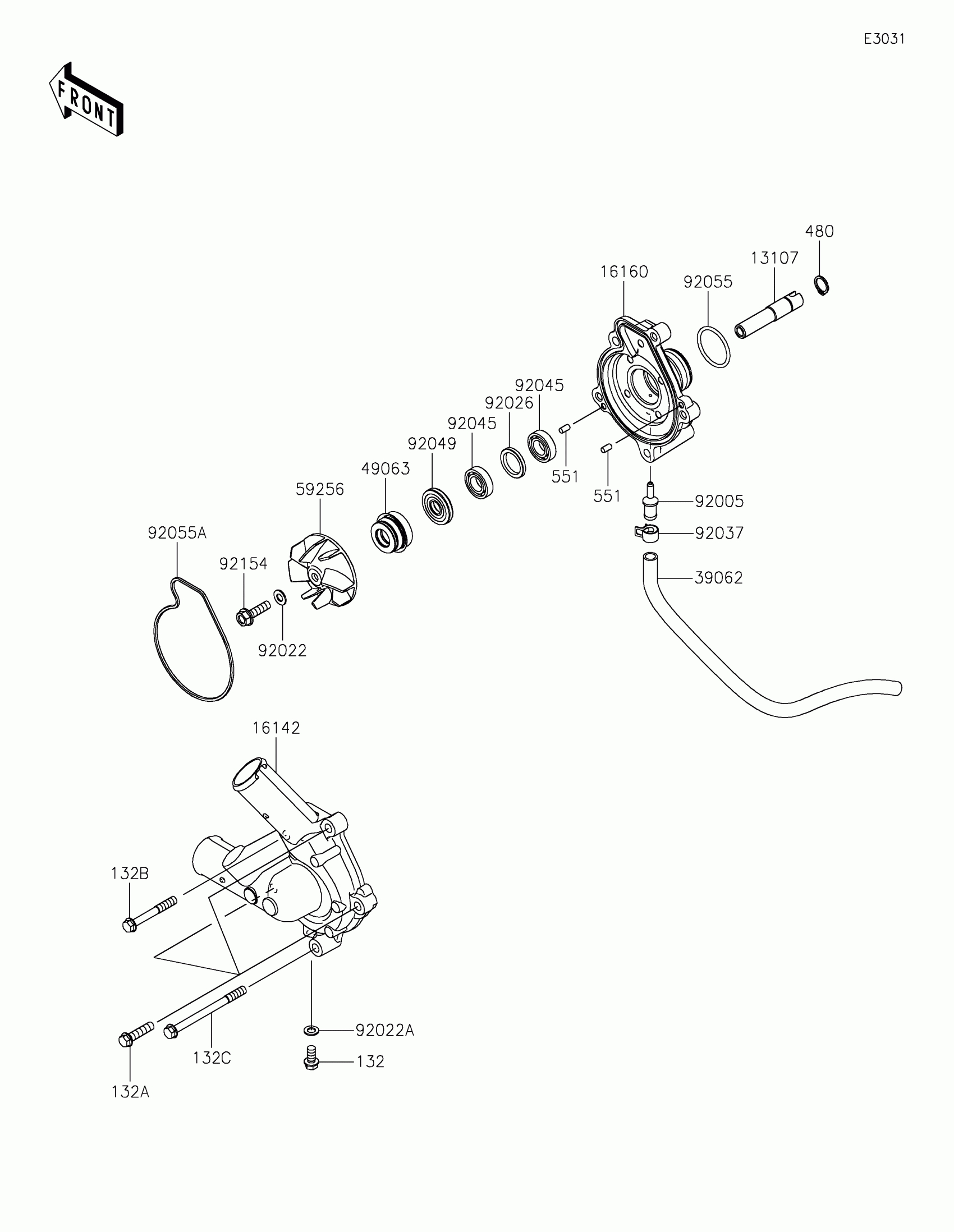

Find the part on the Water Pump diagram for your 2025 Kawasaki Ridge® XR Hvac, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Ridge® XR Hvac Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107

SHAFT,WATER PUMP BODY

13107-0894

1
Out of stock

16142

COVER-PUMP

16142-0772

1
Out of stock

16160

BODY,WATER PUMP

16160-0858

1
Out of stock

39062

HOSE-COOLING,7.5X10.5X280

39062-1949

1
Out of stock

49063

SEAL-MECHANICAL

49063-1055

1
Out of stock

59256

IMPELLER

59256-0017

1
Out of stock

92005

FITTING

92005-1482

1
Out of stock

92022

WASHER OIL PUMP BANJO

92022-077

1
Out of stock

92022A

WASHER,6.2X11X1

92022-304

1
Out of stock

92026

SPACER

92026-0952

1
Out of stock

92037

CLAMP

92037-2113

1
Out of stock

92045

BEARING-BALL,6901

92045-1246

1
Out of stock

92049

SEAL-OIL

92049-0798

1
Out of stock

92055

RING-O,28.7X2.4

92055-0922

1
Out of stock

92055A

RING-O,WATER PUMP COVER

92055-1736

1
Out of stock

92154

BOLT,6X22

92154-2832

1
Out of stock

132

BOLT-FLANGED-SMALL,6X12

132BA0612

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X25

132BA0625

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X45

132BA0645

1
Out of stock

132C

BOLT-FLANGED-SMALL,6X75

132BB0675

1
Out of stock

480

CIRCLIP-TYPE-C,12MM

480J1200

1
Out of stock

551

PIN-DOWEL,4X8

551A0408

1
Out of stock
