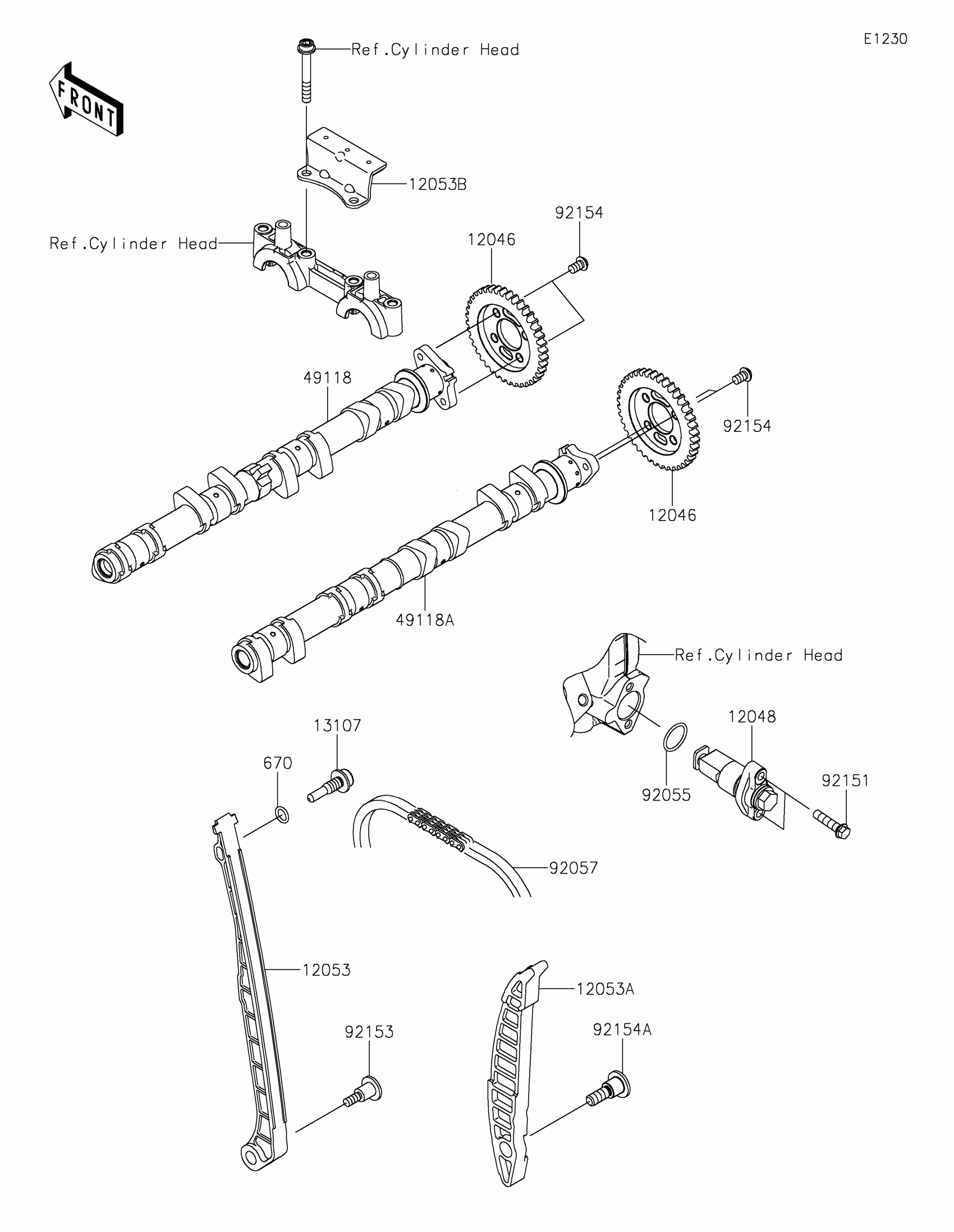

Kawasaki RIDGE® XR HVAC Camshaft(s)/Tensioner Diagram

Description

Price

12046

SPROCKET,CAM,40T

12046-0639

$93.37

12048

TENSIONER-ASSY

12048-0102

$84.50

12053

GUIDE-CHAIN,FR

12053-0327

$26.07

12053A

GUIDE-CHAIN,RR

12053-0346

$30.68

12053B

GUIDE-CHAIN,UPP

12053-0347

$43.10

13107

SHAFT,CHAIN GUIDE

13107-0157

$8.10

49118

CAMSHAFT-COMP,IN

49118-1291

$516.02

49118A

CAMSHAFT-COMP,EX

49118-1292

$516.02

92055

RING-O,18.8X1.9

92055-086

$3.29

92057

CHAIN,98XRH2015-134M

92057-0874

$76.96

92151

BOLT,FLANGED-SMALL,6X25

92151-1930

$1.98

92153

BOLT,SOCKET,6X24.5

92153-1200

$8.81

92154

BOLT,TORX,6X10

92154-0062

$1.81

92154A

BOLT,8X29

92154-3930

$23.22

670

O RING,9MM

670D1509

$3.57
