2025 Kawasaki Ridge® XR Hvac Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 2025 Kawasaki Ridge® XR Hvac, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

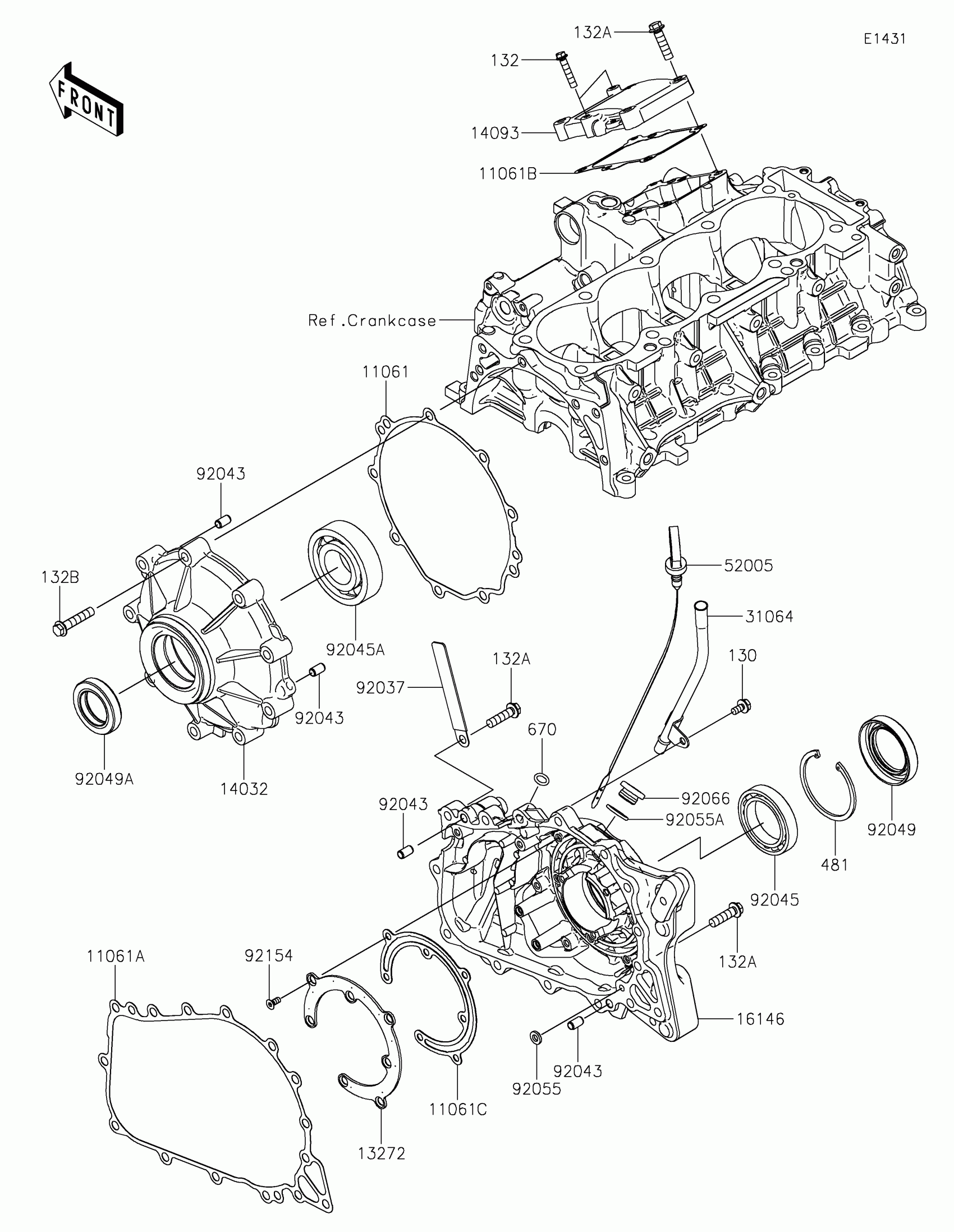

2025 Kawasaki Ridge® XR Hvac Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,CLUTCH COVER

11061-1451

1
Out of stock

11061A

GASKET,CRANKCASE COVER

11061-1454

1
Out of stock

11061B

GASKET

11061-1456

1
Out of stock

11061C

GASKET,GENERATOR COVER

11061-1483

1
Out of stock

13272

PLATE,GENERATOR

13272-4093

1
Out of stock

14032

COVER-CLUTCH

14032-0699

1
Out of stock

14093

COVER

14093-1359

1
Out of stock

16146

COVER-ASSY,GENERATOR

16146-0900

1
Out of stock

31064

PIPE-COMP

31064-0799

1
Out of stock

52005

GAUGE,OIL

52005-0785

1
Out of stock

92037

CLAMP,HARNESS,L=100

92037-1636

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92045

BEARING-BALL,6909C3

92045-0968

1
Out of stock

92045A

BEARING-BALL,2TS2-6307UC3

92045-0969

1
Out of stock

92049

SEAL-OIL

92049-0867

1
Out of stock

92049A

SEAL-OIL

92049-0868

1
Out of stock

92055

RING-O,OD=13

92055-074

1
Out of stock

92055A

RING-O,20X2

92055-1146

1
Out of stock

92066

PLUG,COVER

92066-0011

1
Out of stock

92154

BOLT,5X12

92154-4490

1
Out of stock

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

132

1

$2.17

In stock

132A

1

$3.53

In stock

132B

1

$4.01

In stock

481

CIRCRIP-TYPE-C,68MM

481J6800

1
Out of stock

670

O RING,10MM

670D2010

1
Out of stock
