2025 Kawasaki Ridge® XR Hvac Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2025 Kawasaki Ridge® XR Hvac, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

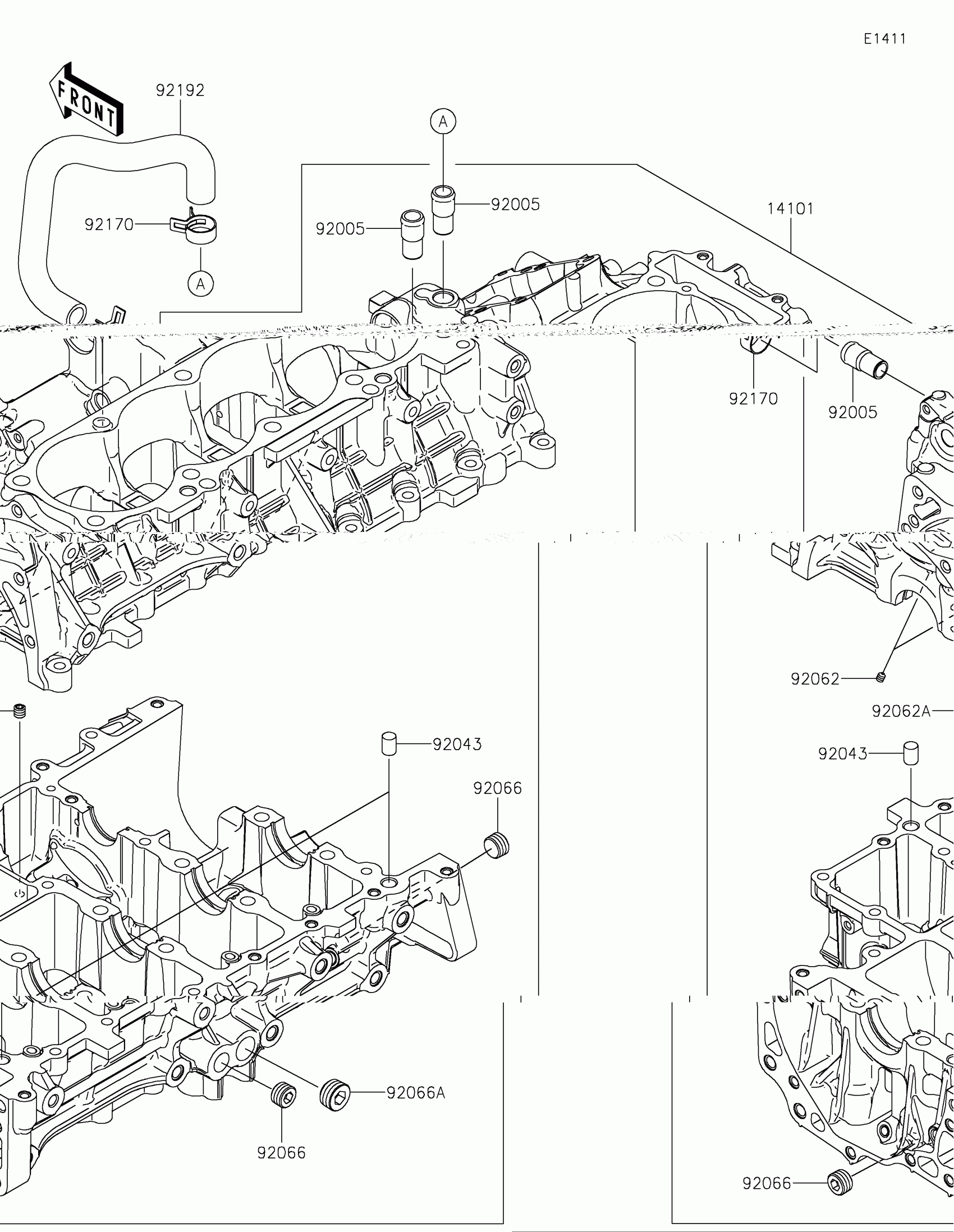

2025 Kawasaki Ridge® XR Hvac Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14101

SET-CRANKCASE

14101-0010

1
Out of stock

92005

FITTING,BREATHER

92005-1238

1
Out of stock

92043

PIN,10X14

92043-1506

1
Out of stock

92062

NOZZLE

92062-0004

1
Out of stock

92062A

NOZZLE

92062-0046

1
Out of stock

92066

PLUG

92066-0831

1
Out of stock

92066A

PLUG

92066-3779

1
Out of stock

92170

CLAMP

92170-1060

1

$7.93

In stock

92192

TUBE,BLOWBY GAS

92192-2675

1
Out of stock
← Camshaft /Tensioner Crankcase Bolt Pattern →
