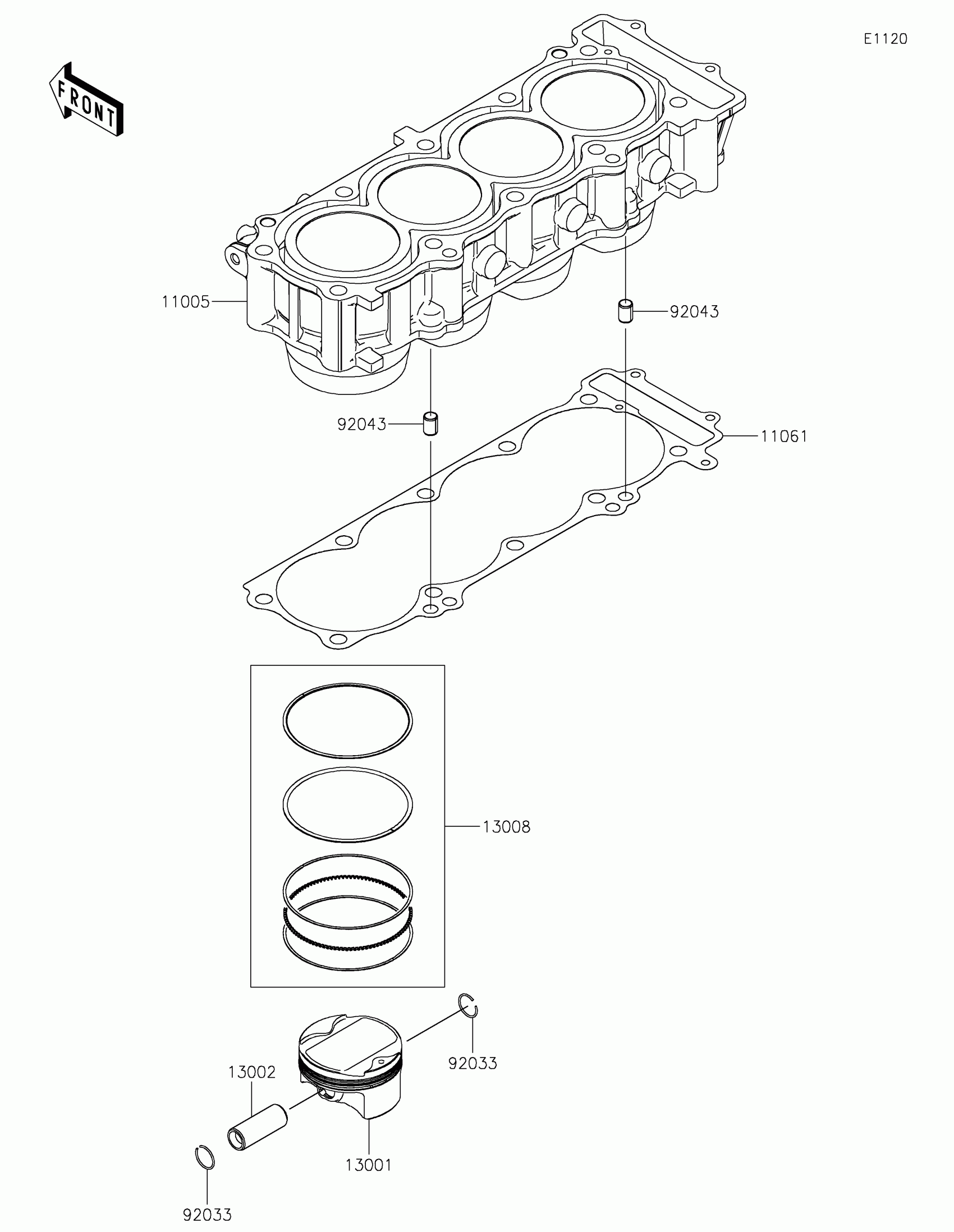

Kawasaki RIDGE® XR HVAC Cylinder/Piston(s) Diagram

#

Description
Price

11005

CYLINDER-ENGINE

11005-0733

$1,018.80

11061

GASKET,CYLINDER BASE

11061-1482

$22.57

13001

PISTON-ENGINE

13001-0843

$135.84

13002

PIN-PISTON

13002-0733

$47.36

13008

RING-SET-PISTON

13008-0571

$66.61

92033

RING-SNAP

92033-1054

$1.76

92043

PIN,8.2X10X14

92043-1264

$0.51
