2025 Kawasaki Ridge® XR Hvac Reflectors Diagram

← All diagrams

Find the part on the Reflectors diagram for your 2025 Kawasaki Ridge® XR Hvac, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

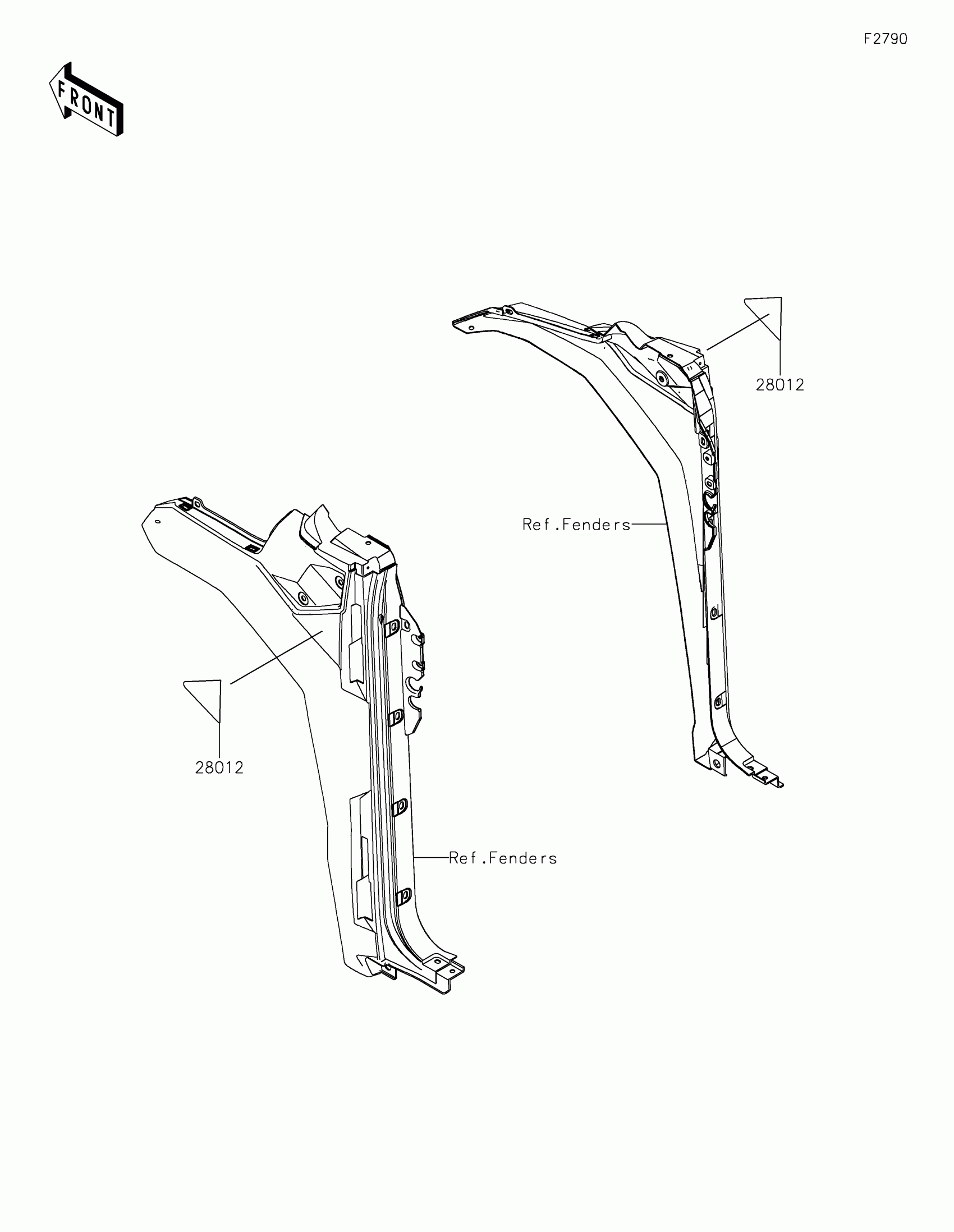

2025 Kawasaki Ridge® XR Hvac Reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

28012

REFLECTOR-REFLEX,FR SIDE

28012-0079

1
Out of stock
