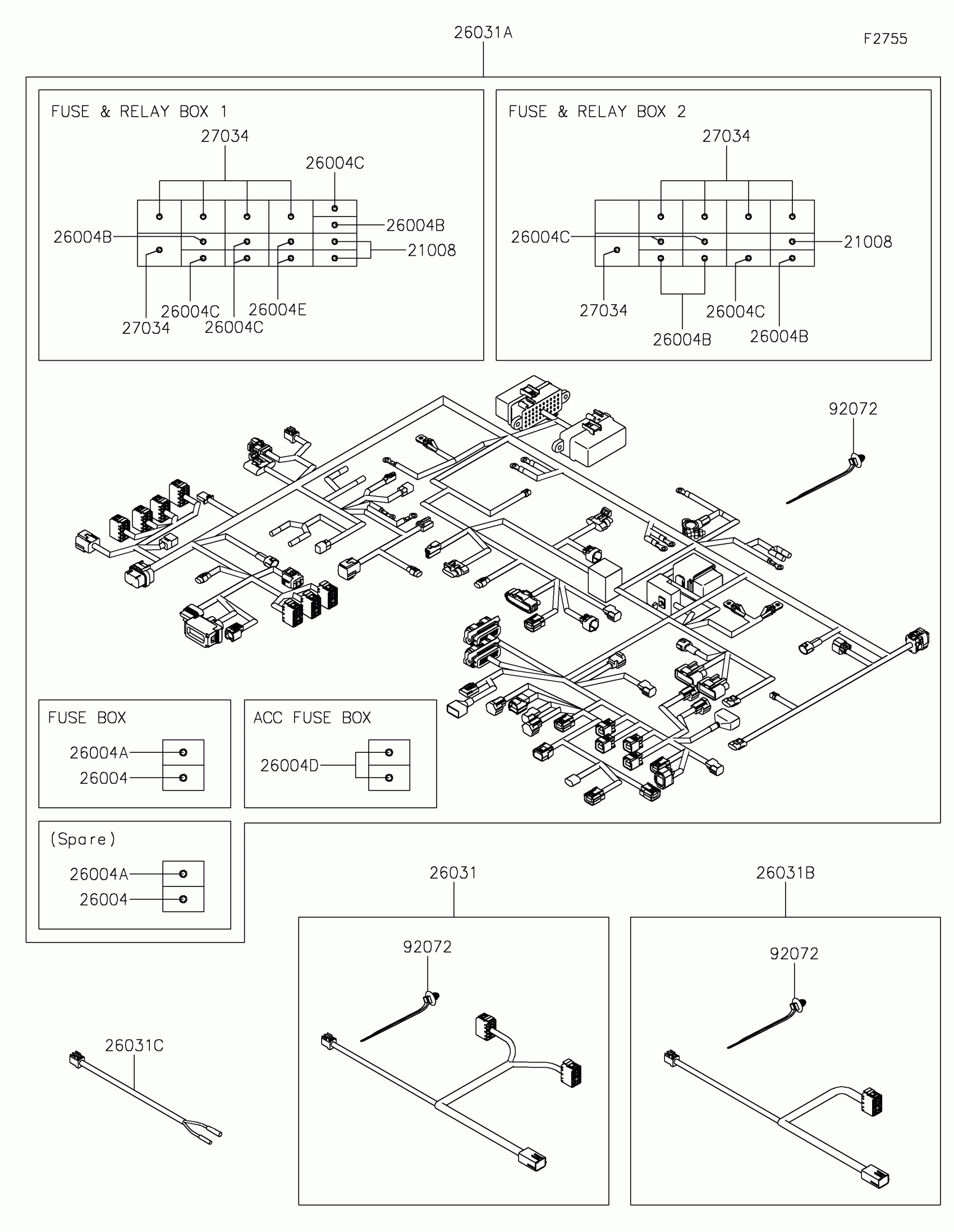

Find the part on the Harness diagram for your 2025 Kawasaki Ridge® XR Hvac, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Ridge® XR Hvac Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21008

BREAKER,20A

21008-0017

1
Out of stock

26004

FUSE-ASSY,SLOW-BLOW,60A

26004-0029

1
Out of stock

26004A

FUSE-ASSY,SLOW-BLOW,70A

26004-0030

1
Out of stock

26004B

FUSE-ASSY,20A

26004-0033

1
Out of stock

26004C

FUSE-ASSY,10A

26004-0034

1
Out of stock

26004D

FUSE-ASSY,40A

26004-0035

1
Out of stock

26004E

FUSE-ASSY,30A

26004-0043

1
Out of stock

26031

HARNESS,SUB,DOOR,LH

26031-3942

1
Out of stock

26031A

HARNESS,MAIN

26031-4014

1
Out of stock

26031B

HARNESS,SUB,DOOR,RH

26031-4015

1
Out of stock

26031C

HARNESS,SUB,ROOM LIGHT

26031-4076

1
Out of stock

27034

RELAY

27034-0013

1
Out of stock

92072

BAND,OS170-FT7(BLACK)

92072-1414

—
Out of stock
