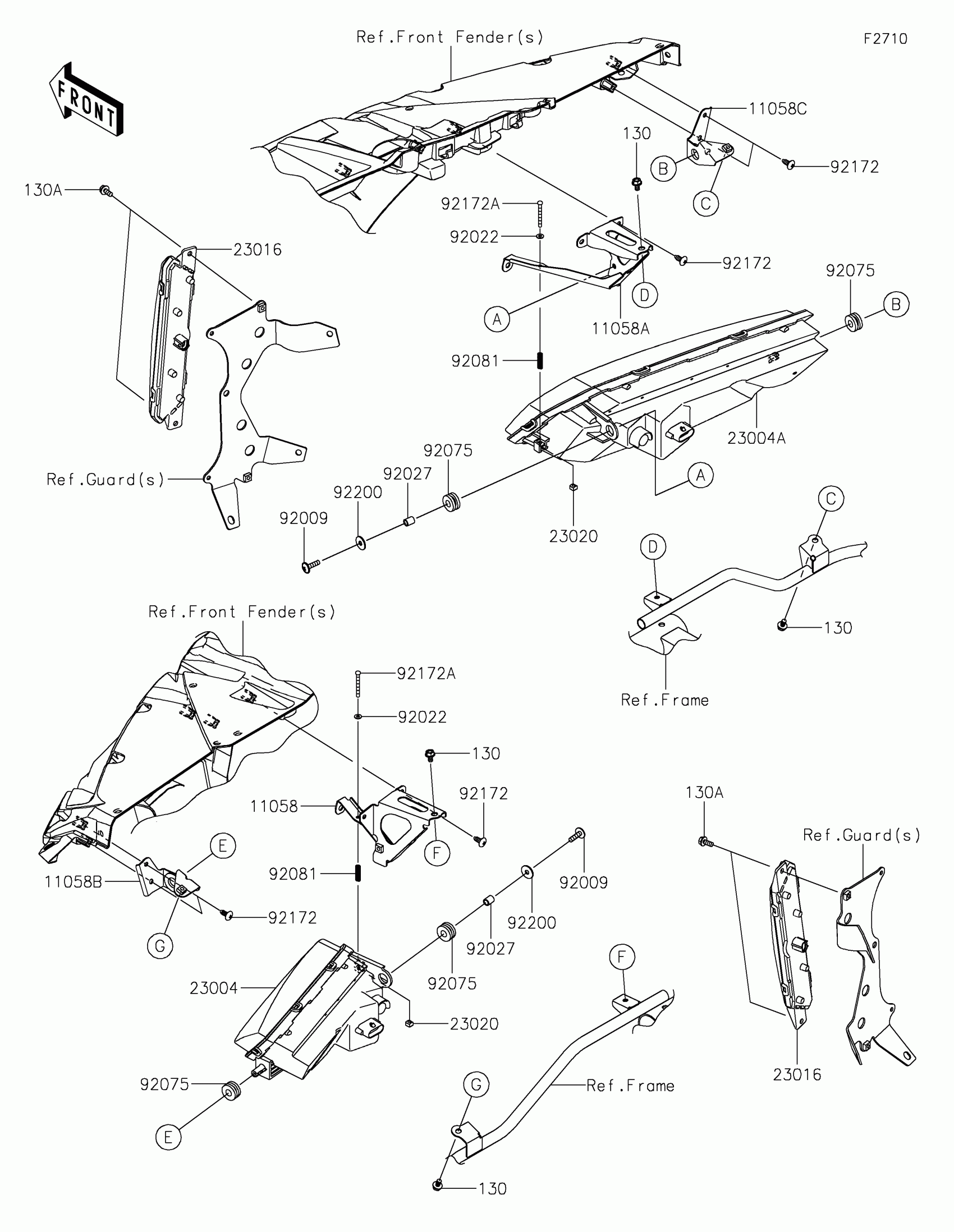

Find the part on the Headlight diagram for your 2025 Kawasaki Ridge® XR Hvac, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Ridge® XR Hvac Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET,HEAD LAMP,LH,IN

11058-0218

1
Out of stock

11058A

BRACKET,HEAD LAMP,RH,IN

11058-0219

1
Out of stock

11058B

BRACKET,HEAD LAMP,LH,OUT

11058-0220

1
Out of stock

11058C

BRACKET,HEAD LAMP,RH,OUT

11058-0221

1
Out of stock

23004

LAMP-HEAD,LED,LH

23004-0435

1
Out of stock

23004A

LAMP-HEAD,LED,RH

23004-0436

1
Out of stock

23016

LAMP-ASSY,LED,CLEAR

23016-0677

1
Out of stock

23020

NUT,4MM,FOCUS ADJUST

23020-018

1
Out of stock

92009

SCREW,6X22,BLACK

92009-1256

1
Out of stock

92022

WASHER

92022-563

1
Out of stock

92027

COLLAR,6.8X10X12

92027-162

1
Out of stock

92075

DAMPER,10X24X12

92075-1690

1
Out of stock

92081

SPRING,FOCUS ADJUST

92081-1896

1
Out of stock

92172

SCREW,6X16

92172-0284

1
Out of stock

92172A

SCREW,4X40

92172-1092

1
Out of stock

92200

WASHER,6.5X20X1.6

92200-0283

1
Out of stock

130

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock

130A

BOLT-FLANGED,6X14

130BA0614

1

$1.12

In stock
