2025 Kawasaki Ridge® XR Hvac Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2025 Kawasaki Ridge® XR Hvac, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

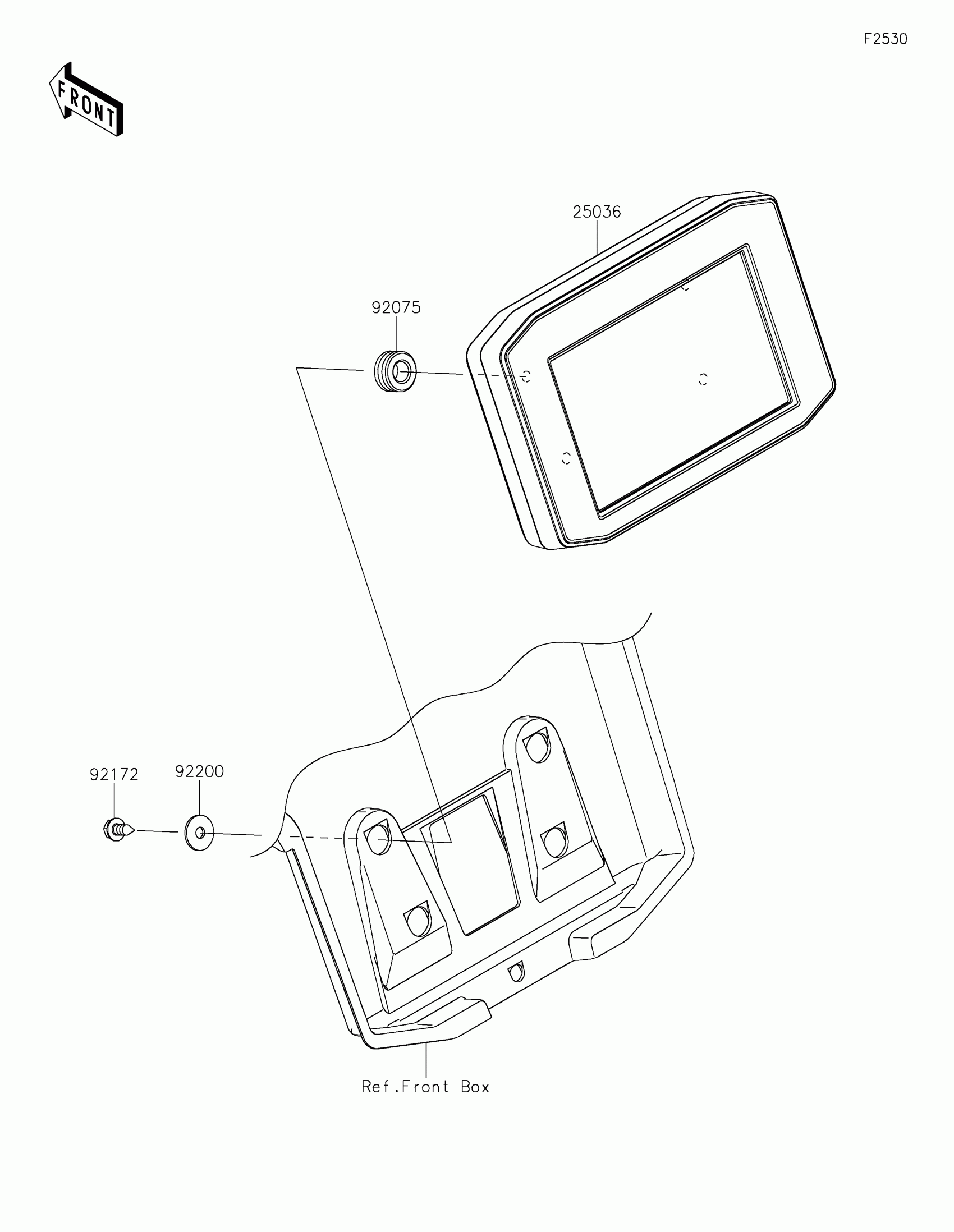

2025 Kawasaki Ridge® XR Hvac Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

25036

METER-ASSY,TFT DISPLAY

25036-0030

1
Out of stock

92075

DAMPER

92075-1898

1
Out of stock

92172

SCREW,TAPPING,6X16

92172-1313

1
Out of stock

92200

WASHER,6.5X20X1.6

92200-0283

1
Out of stock
