2025 Kawasaki Ridge® XR Hvac Battery Diagram

← All diagrams

Find the part on the Battery diagram for your 2025 Kawasaki Ridge® XR Hvac, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

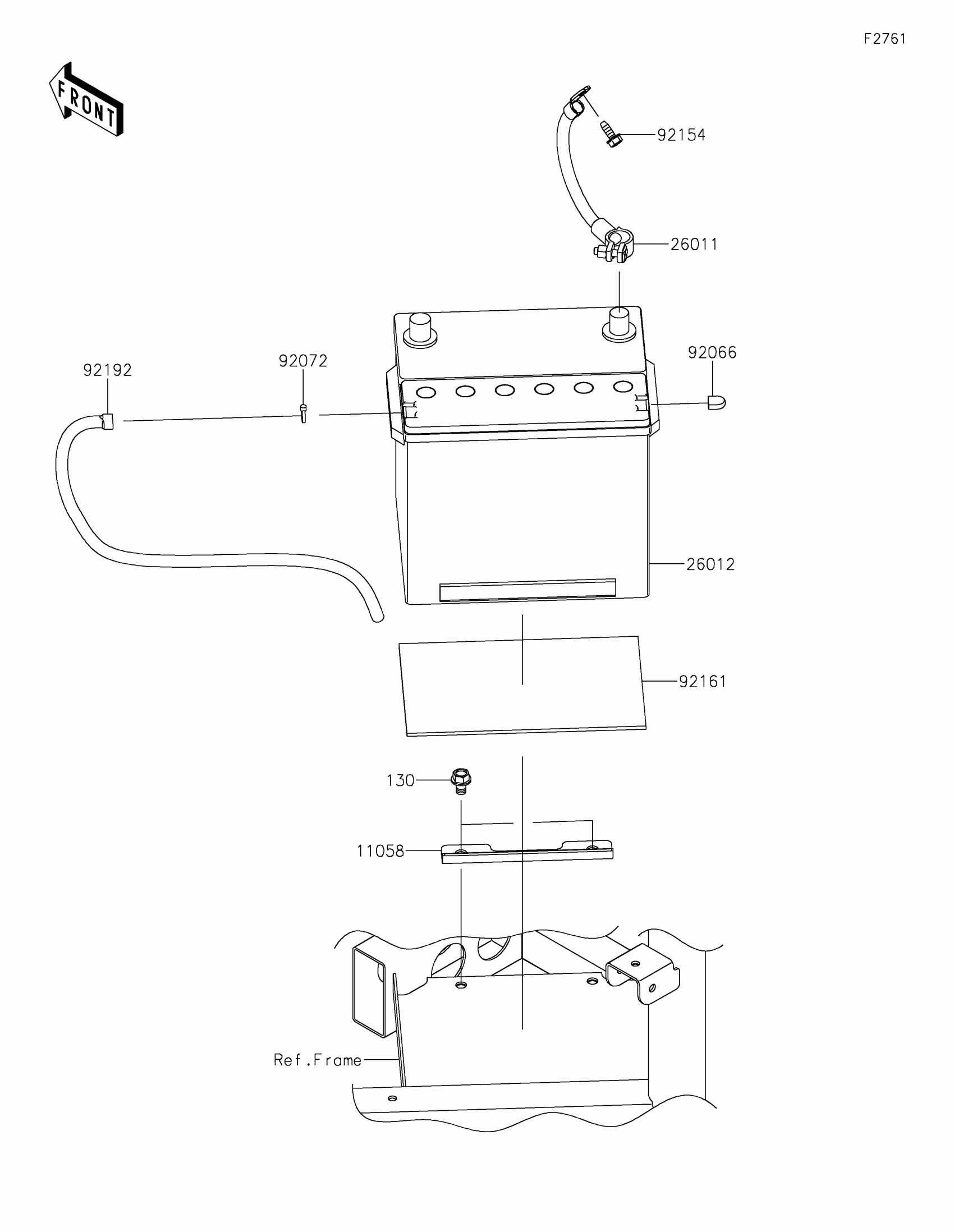

2025 Kawasaki Ridge® XR Hvac Battery Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET,BATTERY

11058-0790

1
Out of stock

26011

WIRE-LEAD,BATTERY(-)

26011-1871

1
Out of stock

26012

BATTERY,12V 32AH

26012-0619

1
Out of stock

92066

PLUG,BREATHER

92066-1592

1
Out of stock

92072

BAND,92X2.4

92072-0791

1
Out of stock

92154

BOLT,FLANGED,6X16

92154-0551

1
Out of stock

92161

DAMPER

92161-0578

1
Out of stock

92192

TUBE,BREATHER,7X10X450

92192-1694

1
Out of stock

130

BOLT-FLANGED,8X12

130BA0812

1

$0.92

In stock
