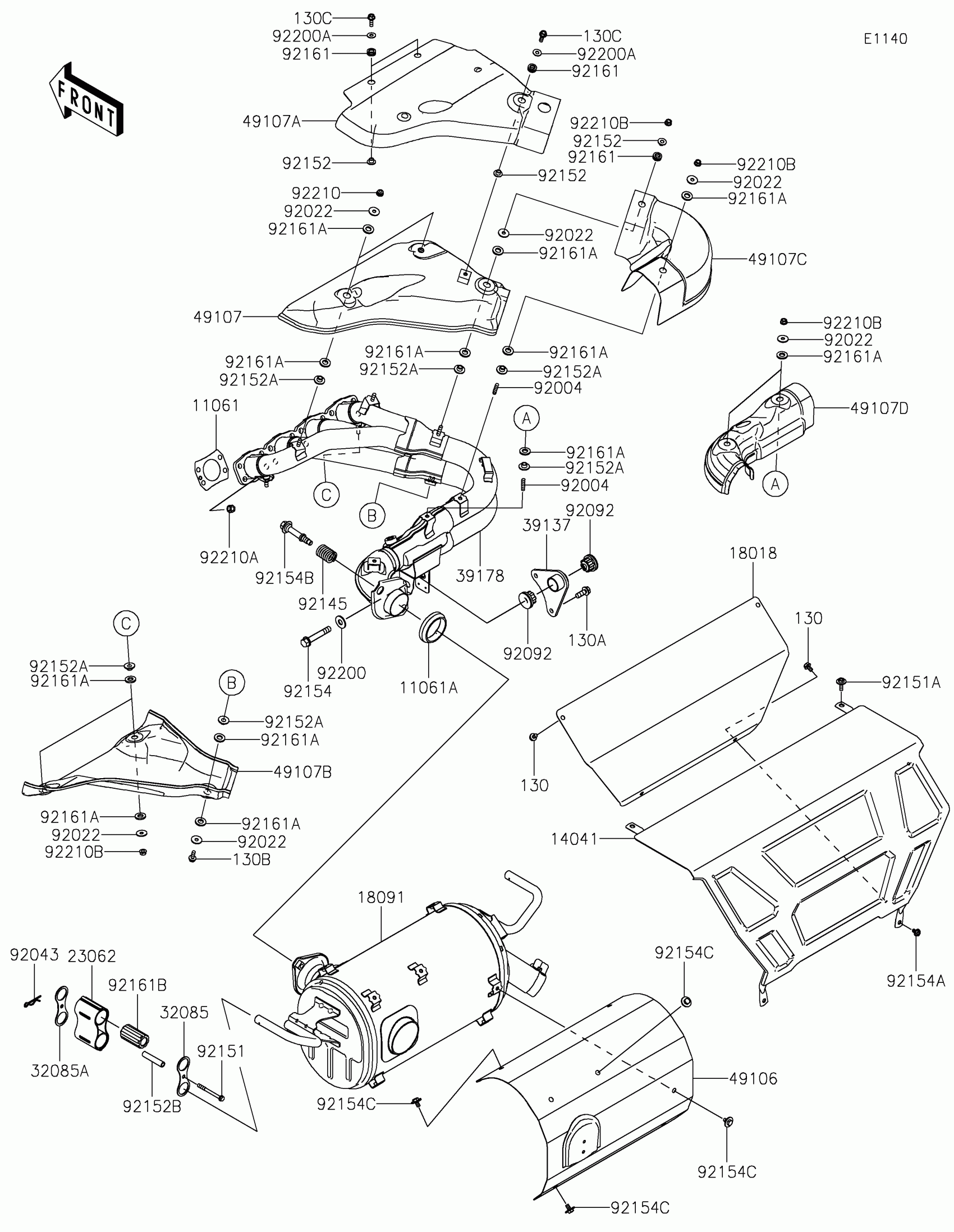

2025 Kawasaki Ridge® XR Hvac Muffler Diagram
Find the part on the Muffler diagram for your 2025 Kawasaki Ridge® XR Hvac, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
92022
WASHER,6.5X20X1.5
92022-3710
1
Out of stock
92200
WASHER,10.5X25X2.0
92200-1377
1
Out of stock
92200A
WASHER,6.5X16X1.0
92200-3712
1
Out of stock
92210
NUT,6MM
92210-0991
1
Out of stock
92210A
NUT,8MM
92210-1242
1
Out of stock
