2025 Kawasaki Ridge® Ranch Edition Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 2025 Kawasaki Ridge® Ranch Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

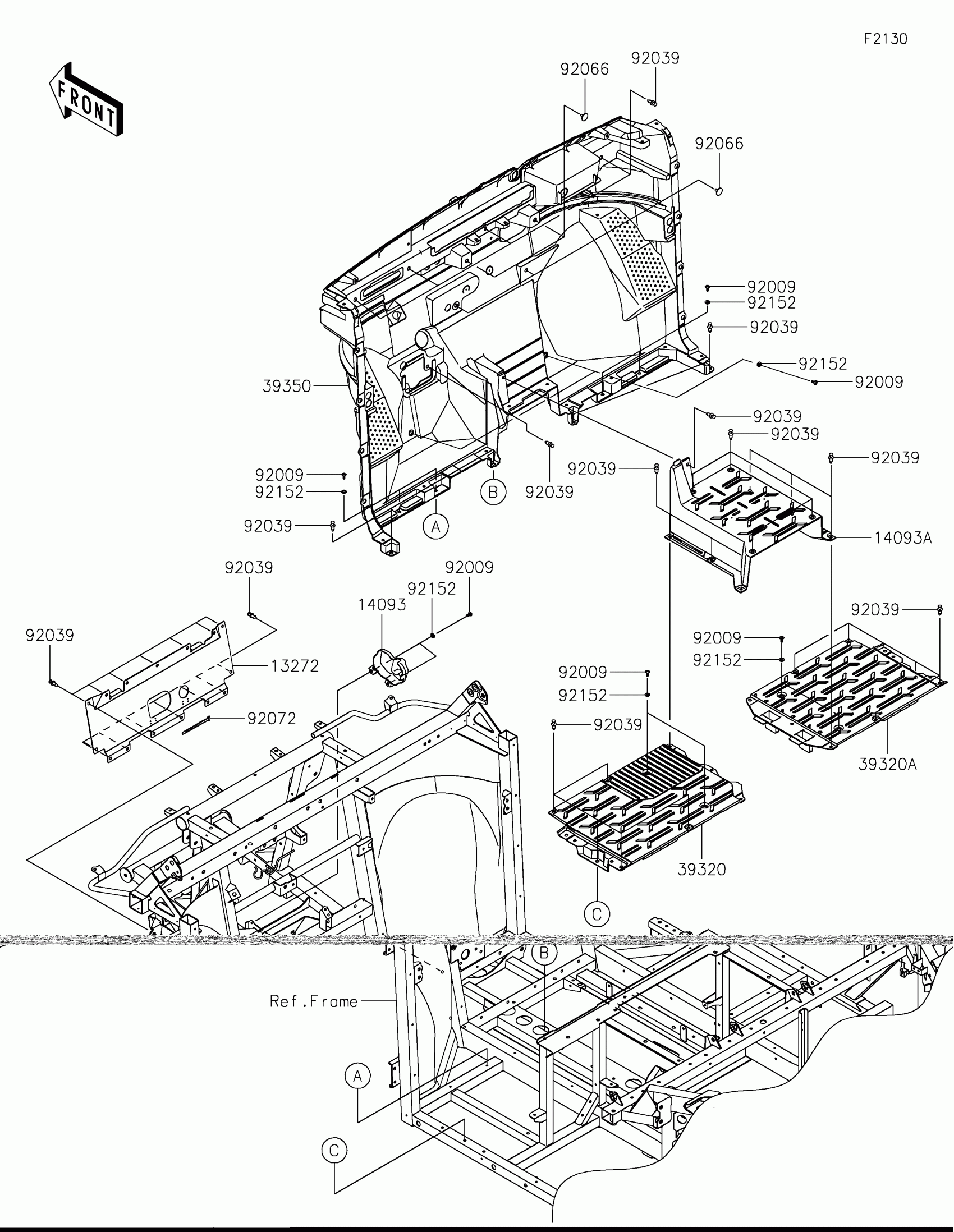

2025 Kawasaki Ridge® Ranch Edition Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13272

PLATE,FR TUNNEL

13272-4216

1

$17.17

In stock

14093

COVER,FR GEAR,SIDE

14093-0839

1

$3.32

In stock

14093A

COVER,TUNNEL,CNT

14093-1330

1

$39.43

In stock

39320

FLOOR,PANEL,LH

39320-0001

1

$45.49

In stock

39320A

FLOOR,PANEL,RH

39320-0002

1

$43.66

In stock

39350

PANEL,FR

39350-0002

1

$176.20

In stock

92009

SCREW,TAPPING,6X16

92009-1166

1
Out of stock

92039

RIVET

92039-0776

1

$0.80

In stock

92066

PLUG,6X17

92066-0751

1

$1.66

In stock

92072

BAND,L=123

92072-030

1

$3.97

In stock

92152

COLLAR,6.3X9.5X4.1

92152-1571

1

$4.75

In stock
