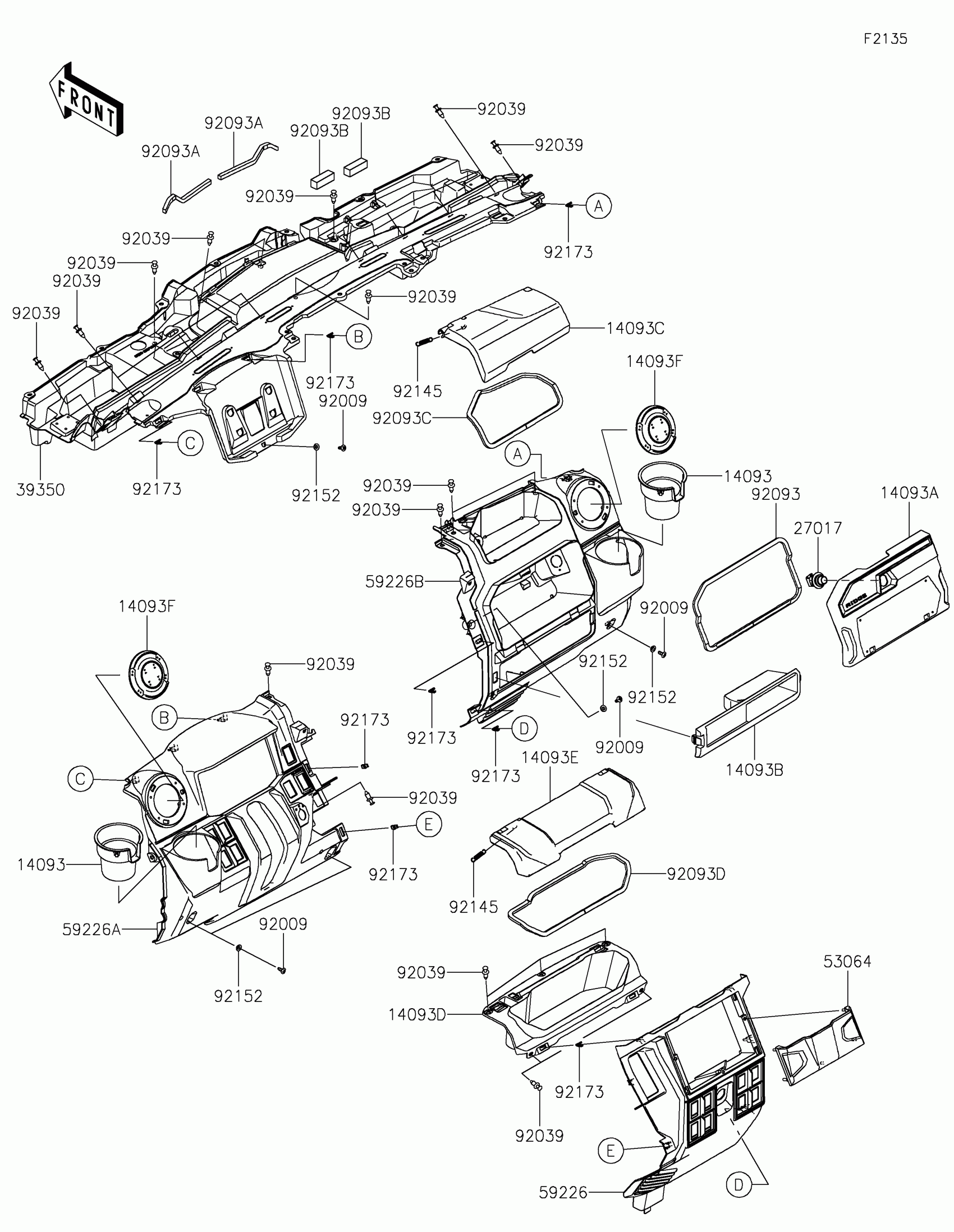

Kawasaki RIDGE® RANCH EDITION Front Box Diagram

Description

Price

14093

COVER,CUP HOLDER

14093-1329

$3.42

14093A

COVER,GLOVE BOX

14093-1337

$17.00

14093B

COVER,STORAGE BOX,SIDE,LWR

14093-1338

$6.61

14093C

COVER,STORAGE BOX,SIDE,UPP,BRN

14093-1339-72K

$16.83

14093D

COVER,STORAGE BOX,CNT,UPP,IN

14093-1340

$13.95

14093E

COVER,STORAGE BOX,CNT,UPP,OUT

14093-1341

$10.44

14093F

COVER,LOUVER HOLE

14093-1342

$3.10

27017

LOCK,PUSH

27017-0572

$20.97

39350

PANEL,DASHBOARD

39350-0001

$108.36

53064

NET-CARGO

53064-0017

$13.75

59226

PANEL-CONTROL,CNT

59226-0762

$38.53

59226A

PANEL-CONTROL,LH,D.BROWN

59226-0763-72K

$48.13

59226B

PANEL-CONTROL,RH,D.BROWN

59226-0764-72K

$48.13

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92039

RIVET

92039-0776

$0.80

92093

SEAL

92093-0776

$2.12

92093A

SEAL,10X10X110

92093-0785

$2.29

92093B

SEAL,10X10X60

92093-0786

$1.59

92093C

SEAL,10X6X705

92093-0795

$13.98

92093D

SEAL,10X6X835

92093-0796

$14.44

92145

SPRING,REAR BRAKE

92145-2219

$1.83

92152

COLLAR,6.3X9.5X4.1

92152-1571

$4.53

92173

CLAMP

92173-1423

$1.14
