2025 Kawasaki Ridge® Ranch Edition Converter Cover Diagram

← All diagrams

Find the part on the Converter Cover diagram for your 2025 Kawasaki Ridge® Ranch Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

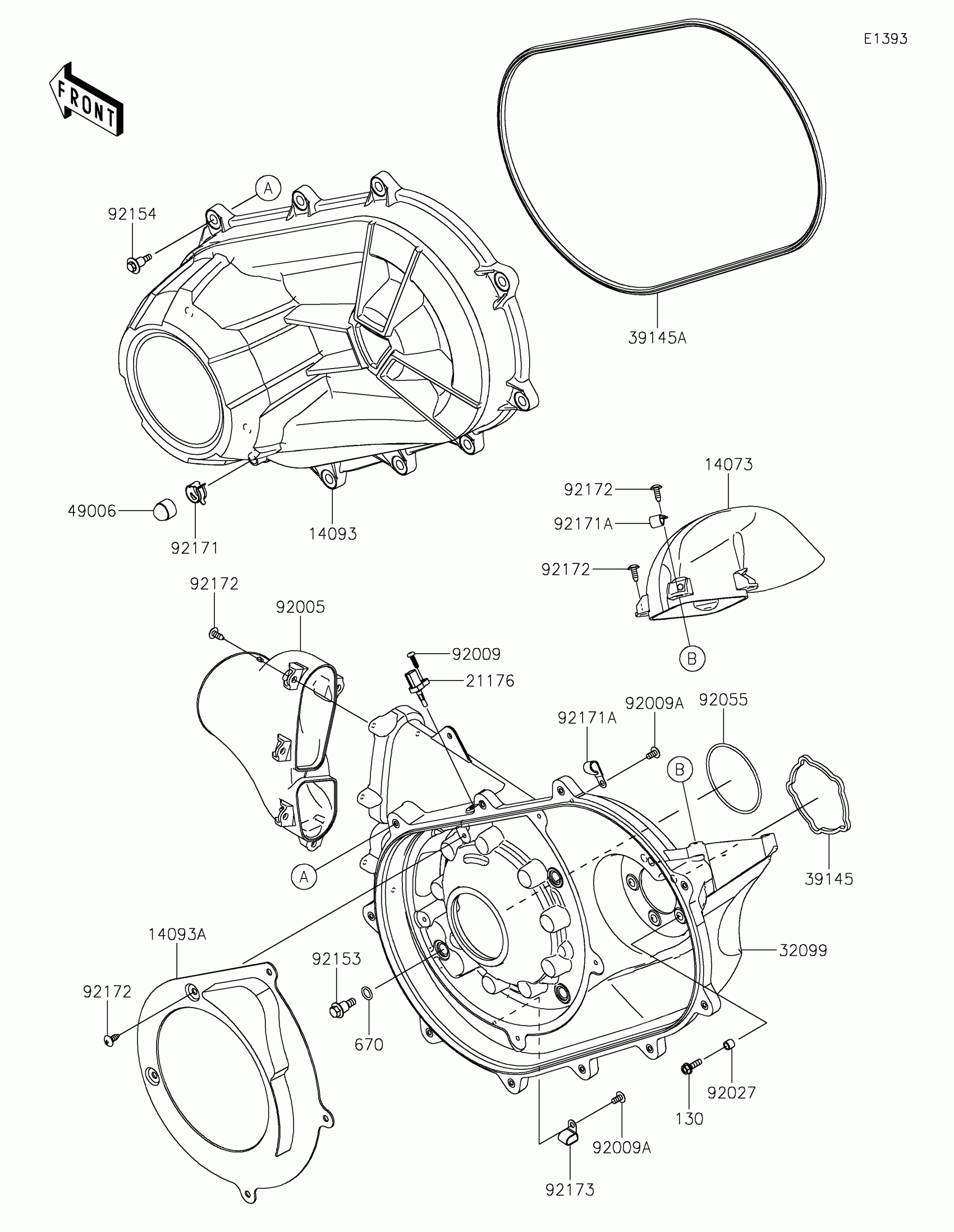

2025 Kawasaki Ridge® Ranch Edition Converter Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14073

DUCT,EXHAUST

14073-1915

1
Out of stock

14093

COVER,CVT

14093-1453

1
Out of stock

14093A

COVER,AIR GUIDE

14093-1454

1
Out of stock

21176

SENSOR,AIR TEMPERATURE

21176-0048

1
Out of stock

32099

CASE,CVT

32099-0829

1
Out of stock

39145

TRIM-SEAL

39145-0714

1
Out of stock

39145A

TRIM-SEAL,CVT COVER

39145-0760

1
Out of stock

49006

BOOT,DRAIN

49006-3718

1
Out of stock

92005

FITTING,INTAKE

92005-1450

1
Out of stock

92009

SCREW,TAPPING,5X16

92009-1264

1
Out of stock

92009A

SCREW,6X12

92009-1480

1
Out of stock

92027

COLLAR,6.8X10X8.5

92027-129

1
Out of stock

92055

RING-O,84.4X3.1

92055-0916

1
Out of stock

92153

BOLT,8X26.5

92153-0594

1
Out of stock

92154

BOLT,CVT COVER

92154-1522

1
Out of stock

92171

CLAMP

92171-0329

1

$7.06

In stock

92171A

CLAMP

92171-0739

1
Out of stock

92172

SCREW,6X16

92172-0284

1
Out of stock

92173

CLAMP

92173-2439

1
Out of stock

130

BOLT-FLANGED,6X20

130BA0620

1

$1.49

In stock

670

O RING,12MM

670D2012

1
Out of stock
