2025 Kawasaki Ridge® Ranch Edition Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 2025 Kawasaki Ridge® Ranch Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

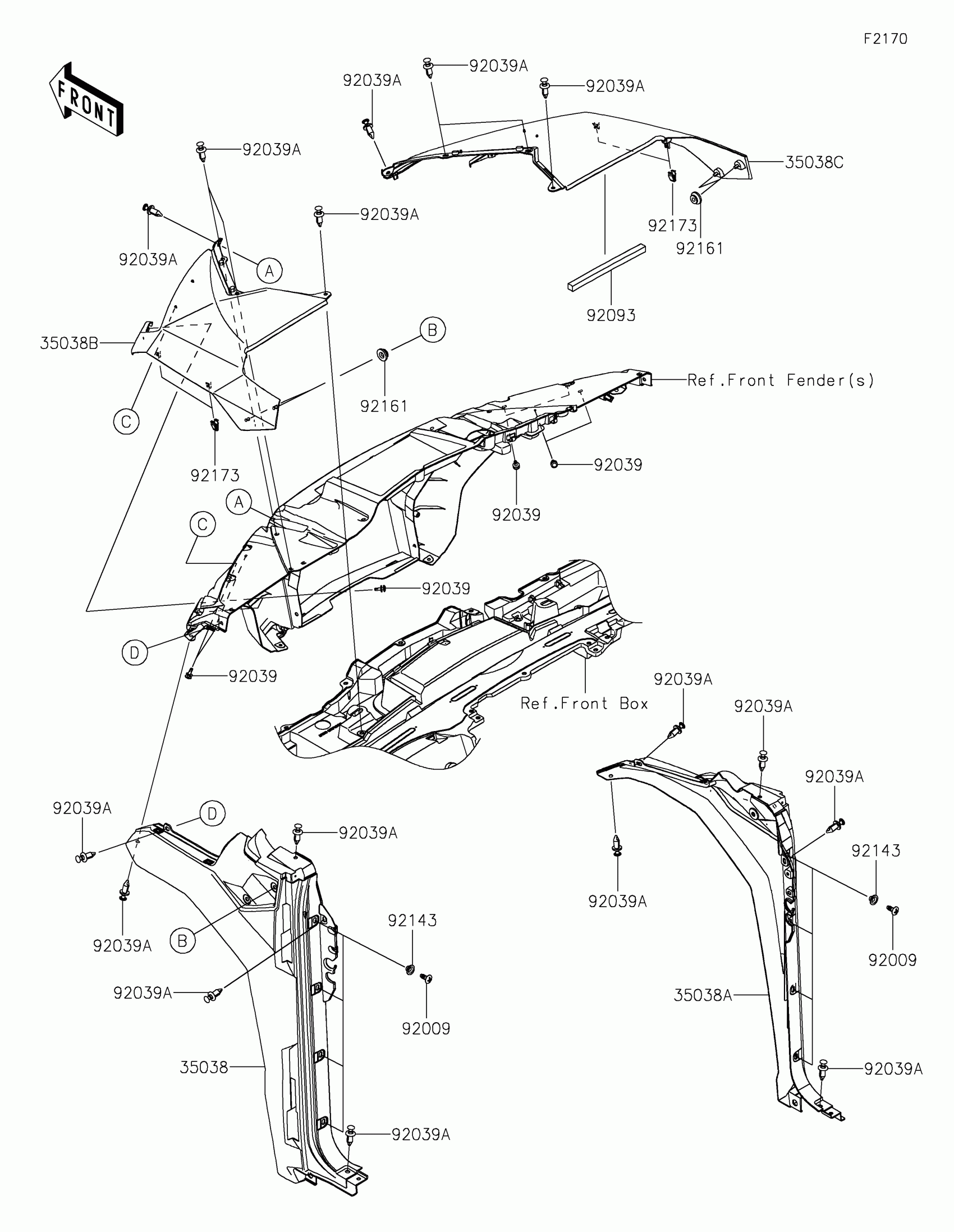

2025 Kawasaki Ridge® Ranch Edition Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35038

FENDER-FRONT,LWR,LH

35038-0035

1

$127.64

In stock

35038A

FENDER-FRONT,LWR,RH

35038-0036

1

$127.64

In stock

35038B

1

$216.06

In stock

35038C

1

$216.01

In stock

92009

SCREW,TAPPING,6X16

92009-1166

1
Out of stock

92039

RIVET

92039-0046

1

$3.11

In stock

92039A

RIVET

92039-0776

1

$0.80

In stock

92093

SEAL,15X15X235

92093-0782

1

$7.24

In stock

92143

COLLAR

92143-1057

1

$3.97

In stock

92161

DAMPER

92161-1531

1

$2.44

In stock

92173

CLAMP

92173-1423

1

$1.32

In stock
