1997 Suzuki RF900RV Rear Fender Diagram

← All diagrams

Find the part on the Rear Fender diagram for your 1997 Suzuki RF900RV, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

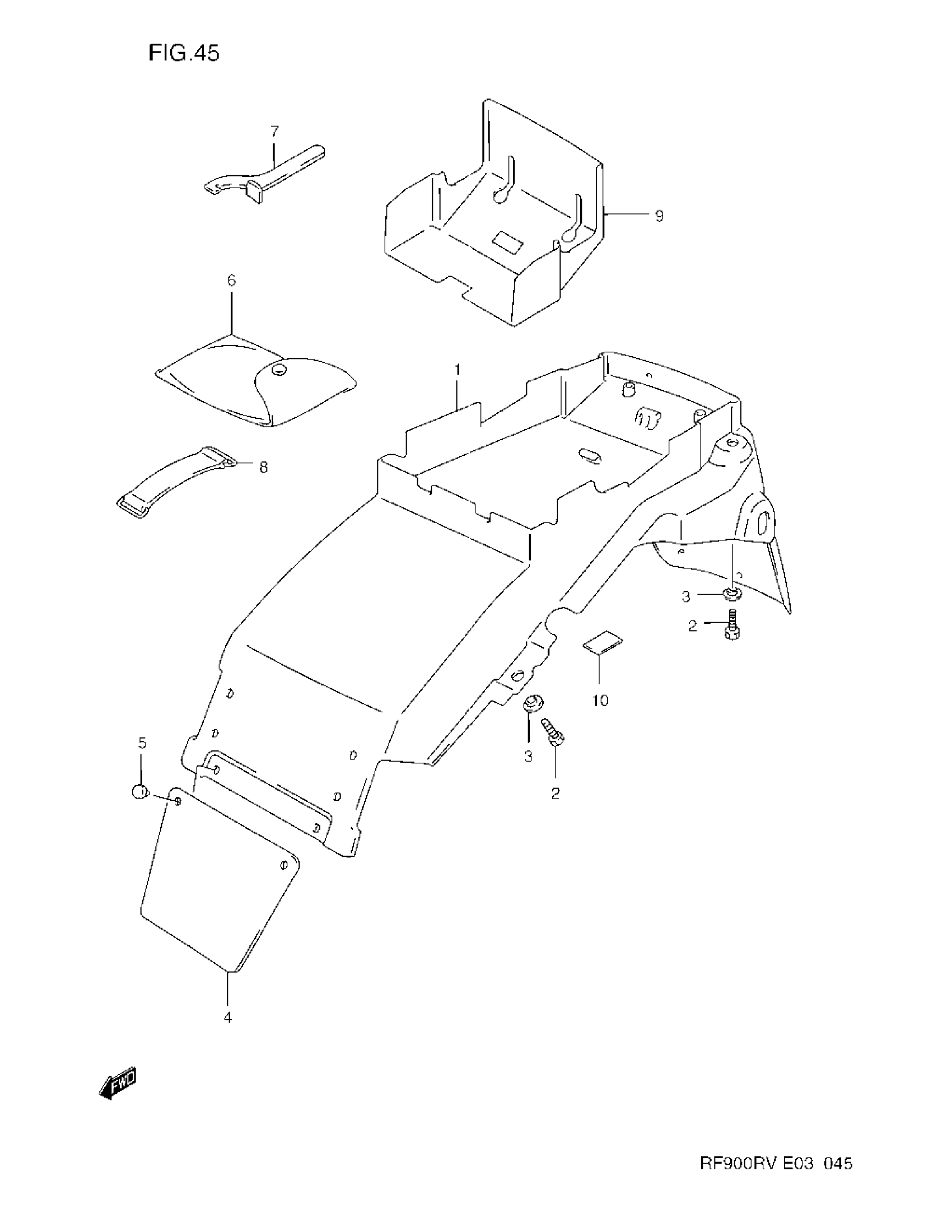

1997 Suzuki RF900RV Rear Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, REAR

63111-21E01

1
Out of stock

2

BOLT This part replaces 01550-06203.

01550-0620A

4
Out of stock

3

4

$2.35

In stock

4

MUD GUARD, REAR FENDER

63411-21E00

1
Out of stock

5

CLIP, MUD GUARD

63415-10D00

2
Out of stock

6

TOOL ASSY This part replaces 09800-21008.

09800-21065

1
Out of stock

7

CLAMP, WRENCH

09822-00005

1

$14.97

In stock

8

BAND, TOOL

09462-00008

1
Out of stock

9

GUARD, REAR FENDER | MODEL R/S

63251-31E00

1
Out of stock

9

GUARD, REAR FENDER | MODEL T/V This part replaces 63251-31E01.

63251-31E00

1
Out of stock

10

TAPE, REAR FENDER

63115-06C00

4
Out of stock
