1997 Suzuki RF900RV Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1997 Suzuki RF900RV, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

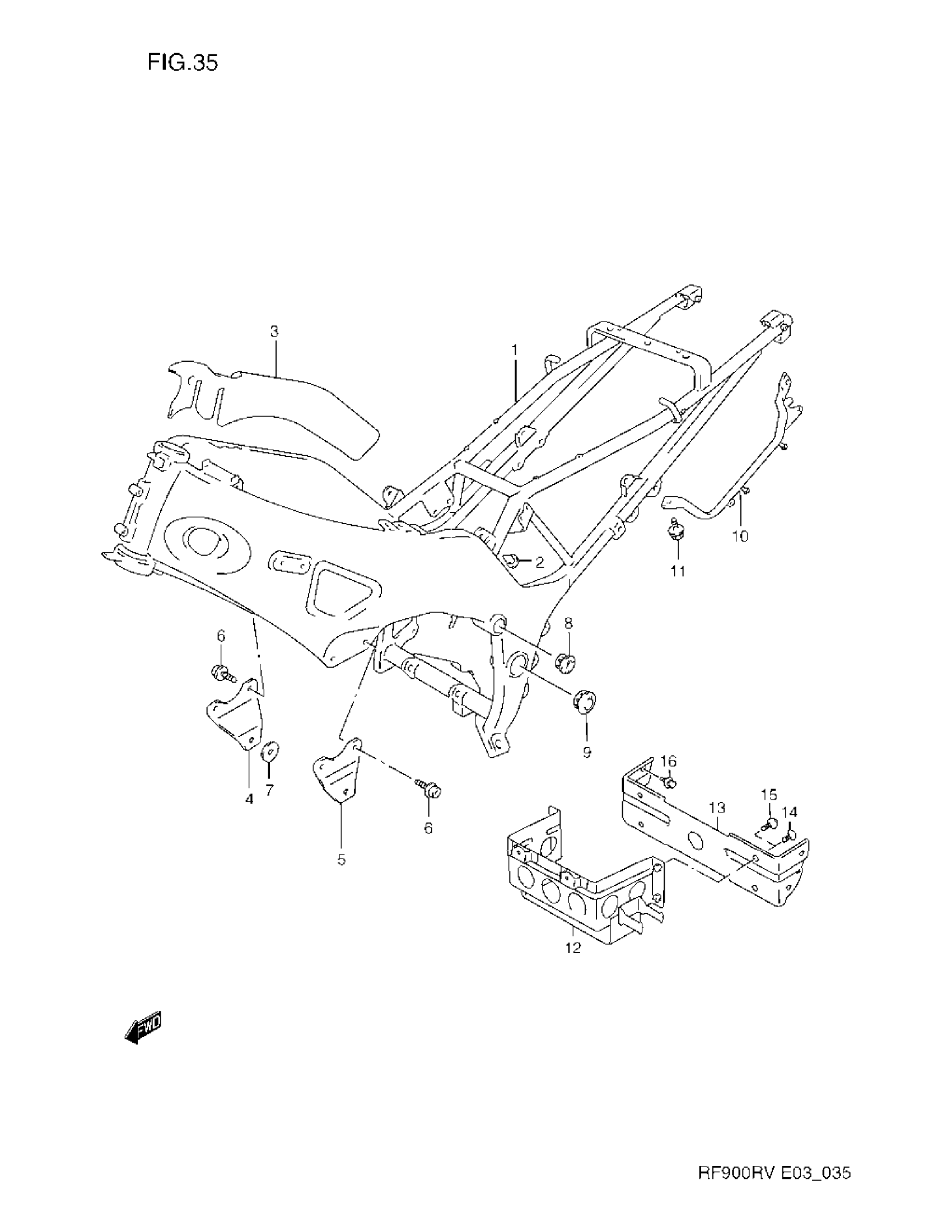

1997 Suzuki RF900RV Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME (RED) | RF900RR

41100-31E00-19A

1
Out of stock

1

FRAME (BLACK) | RF900RR

41100-31E00-33J

1
Out of stock

1

FRAME (RED) | CALIFORNIA ONLY,RF900RR

41100-31E10-19A

1
Out of stock

1

FRAME (BLACK) | CALIFORNIA ONLY,RF900RR

41100-31E10-33J

1
Out of stock

1

NO DESCRIPTION AVAILABLE | RF900RS This part replaces 41100-31E20-19A.

41100-31E21-19A

1
Out of stock

1

FRAME (GREEN) | RF900RS

41100-31E20-1UH

1
Out of stock

1

FRAME | RF900RZS/RF900RT This part replaces 41100-31E20-0FP.

41100-31E21-0FP

1
Out of stock

1

FRAME | CALIFORNIA ONLY,RF900RS This part replaces 41100-31E30-19A.

41100-31E21-0FP

1
Out of stock

1

FRAME | CALIFORNIA ONLY,RF900RS This part replaces 41100-31E30-1UH.

41100-31E21-0FP

1
Out of stock

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLYRF900RZS/RF900RT This part replaces 41100-31E30-0FP.

41100-31E31-0FP

1
Out of stock

2

PLUG (OD:10) | CALIFORNIA ONLY This part replaces 09250-06012.

09250-06017

2
Out of stock

3

SHIELD, HEAT RH

41891-21E02

1
Out of stock

3

SHIELD, HEAD LH

41892-21E02

1
Out of stock

4

PLATE, ENGINE MOUNT RH

41911-31E01

1
Out of stock

5

PLATE, ENGINE MOUNT LH

41921-31E01

1
Out of stock

6

BOLT This part replaces 07120-10303.

07120-1030B

4
Out of stock

7

WASHER, INNER

09160-10070

2
Out of stock

8

CAP, MOUNT BOSS

43585-47D01

1
Out of stock

9

CAP, PIVOT

43585-21E00

1
Out of stock

10

GRIP, REAR RH

43970-31E10

1
Out of stock

10

GRIP, REAR LH

43980-31E10

1
Out of stock

11

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

2
Out of stock

12

HOLDER, BATTERY | MODEL R This part replaces 41540-21E00.

41540-21E11

1
Out of stock

12

HOLDER, BATTERY | MODEL S/T

41540-21E11

1
Out of stock

13

BRACKET

41561-21E00

1
Out of stock

14

SCREW | MODEL R This part replaces 02142-06123.

02142-0612A

4
Out of stock

15

BOLT, CLAMP | MODEL S/T This part replaces 01550-06123.

01550-0612A

4
Out of stock

16

BOLT This part replaces 01550-06163.

01550-0616A

4
Out of stock

17

REFER TO FIG.35A(F-3) FOR

SPECIAL NOTE

—
Out of stock
