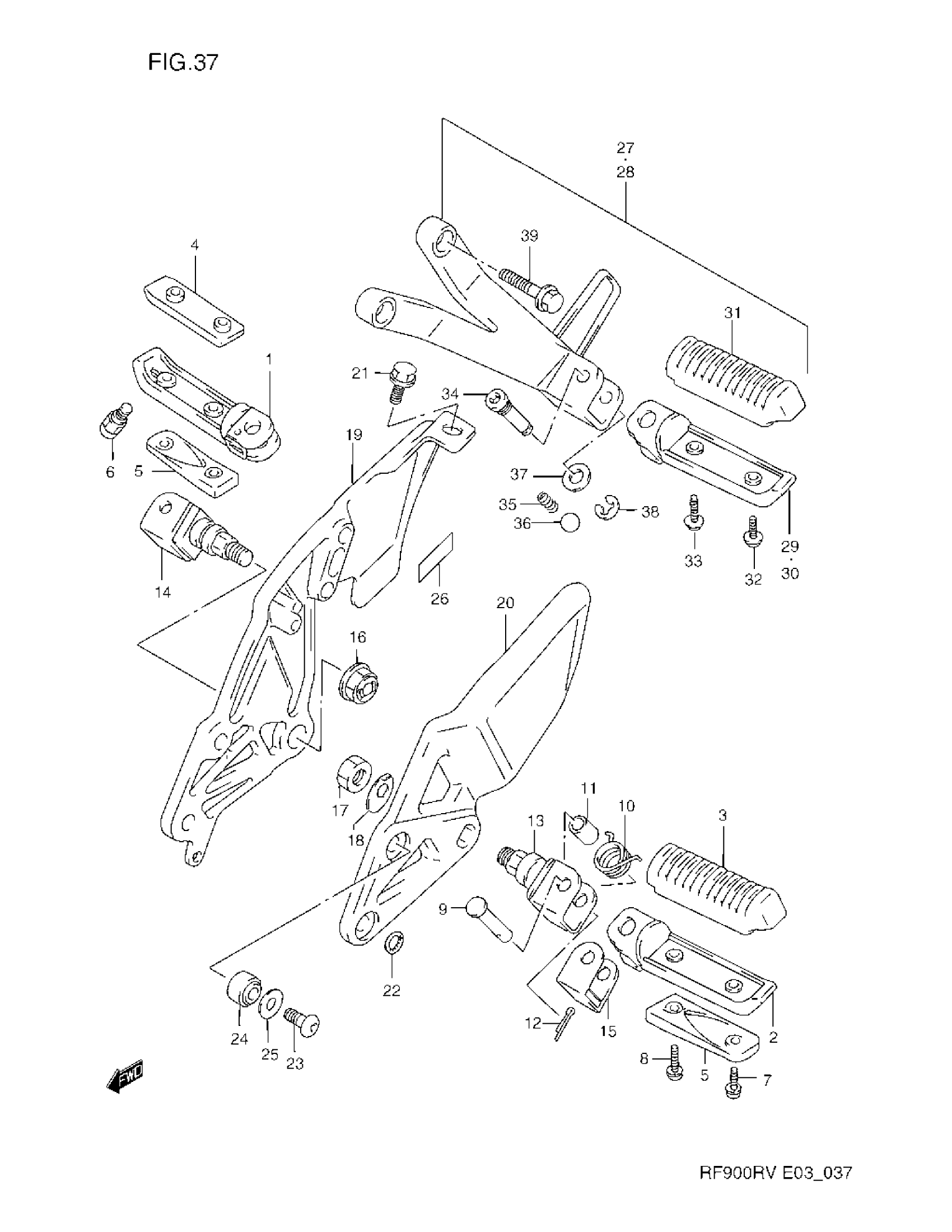

Suzuki RF900RV (1997) FOOTREST Diagram

#

Description
Price

1

BAR, FRONT FOOTREST RH

43511-31E00

Unavailable

2

BAR, FRONT FOOTREST LH

43521-40C00

$72.12

3

RUBBER, FOOTREST

43550-46E00

$36.30

4

BAR, FRONT FOOTREST NO.2 RH

43534-46E00

Unavailable

5

BALANCER | MODEL R/S This part replaces 43536-31E00.

43536-31E01

$40.45

5

BALANCER | MODEL T/V

43536-31E01

$40.45

6

BOLT, BANK SENSOR This part replaces 43576-48B01.

43576-48B02

$6.85

7

SCREW This part replaces 02112-35303.

02112-3530A

$2.80

8

SCREW, INNER

02112-35353

Unavailable

9

PIN

09200-08057

$2.58

10

SPRING | MODEL R/S This part replaces 09448-19020.

09448-18022

$3.42

10

SPRING | MODEL T/V

09448-18022

$3.42

11

SPACER

09180-08149

$5.10

12

PIN This part replaces 04111-25158.

04111-2515A

$1.64

13

HOLDER, BAR LH

43530-31E10

Unavailable

14

HOLDER, BAR RH

43540-31E00

Unavailable

15

CUSHION, BAR

43570-31E10

Unavailable

16

NUT This part replaces 08319-31128.

08319-3112A

$3.38

17

NUT This part replaces 08310-00123.

08310-0012A

$2.36

18

WASHER

43214-17C01

Unavailable

19

BRACKET, FOOTREST RH

43511-21E00

Unavailable

20

BRACKET, FOOTREST LH

43521-21E00

Unavailable

21

BOLT This part replaces 01550-08203.

01550-0820A

$2.25

22

WASHER

09164-08015

$2.90

23

BOLT, BRACKET

09106-08129

$5.87

24

BUSH

09319-08025

Unavailable

25

WASHER This part replaces 09160-08021.

09160-08130

$2.01

26

PROTECTOR, RH

32851-10D00

$5.70

27

FOOTREST ASSY, PILLION RH

43600-31E00

Unavailable

28

FOOTREST ASSY, PILLION LH | Includes Item(s) 29 - 38

43700-31E00

Unavailable

29

BAR, PILLION RH

43610-40C00

Unavailable

30

BAR, PILLION LH

43620-40C00

Unavailable

31

RUBBER

43550-40C11

$29.07

32

SCREW This part replaces 02112-35163.

02112-3516A

$2.65

33

SCREW This part replaces 02112-35203.

02112-3520B

Unavailable

34

BOLT

43642-40C00

$10.15

35

SPRING

09440-05003

$1.48

36

BALL

06111-07004

$1.22

37

WASHER This part replaces 09160-10031.

09160-10126

$2.13

38

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.43

39

BOLT, BRACKET

09106-08106

$2.80
