1997 Suzuki RF900RV Frame Cover Diagram

← All diagrams

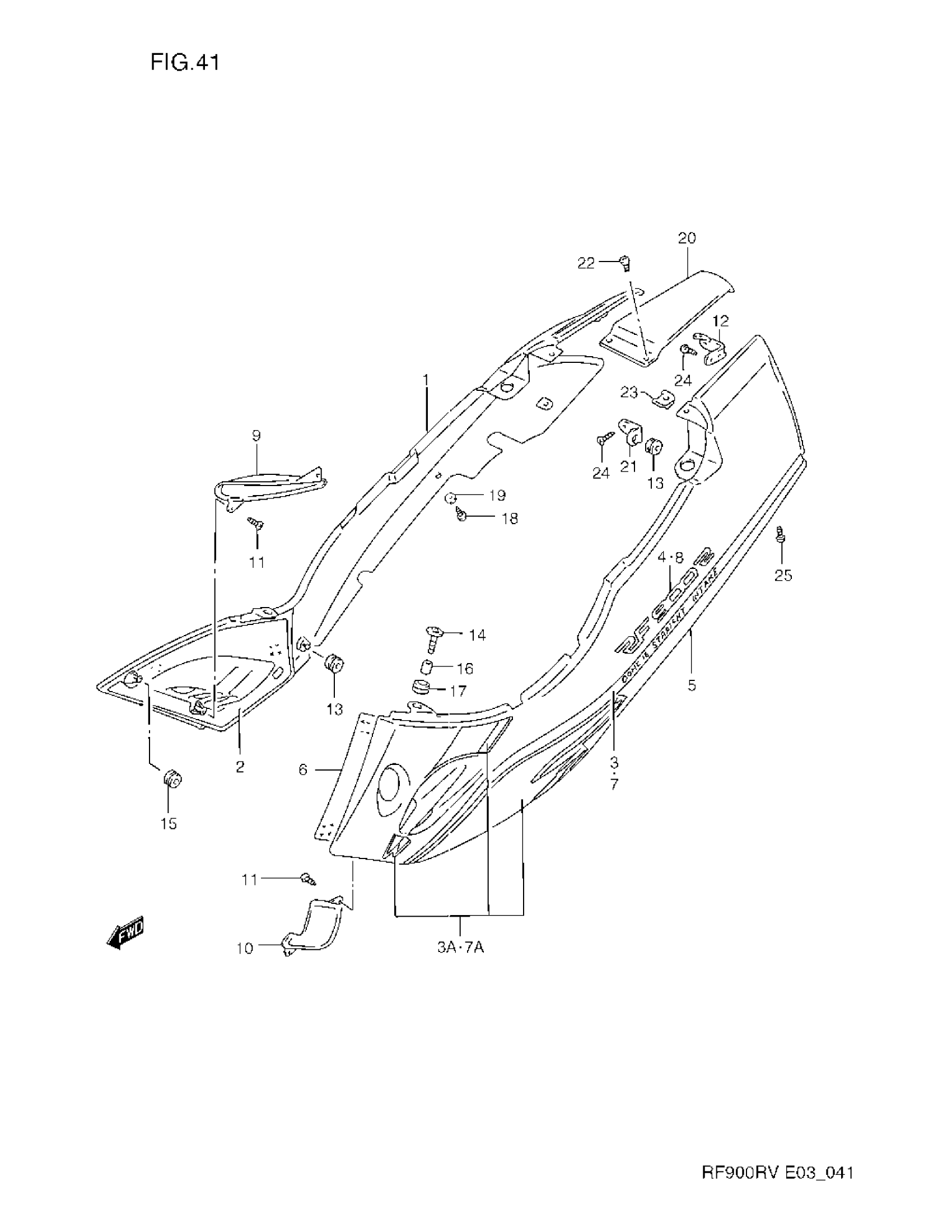

Find the part on the Frame Cover diagram for your 1997 Suzuki RF900RV, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Suzuki RF900RV Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, FRAME RH (RED) | RF900RR/RS

47100-31E00-19A

1
Out of stock

1

COVER, FRAME RH (BLACK) | RF900RR

47100-31E00-33J

1
Out of stock

1

COVER, FRAME RH (GREEN) | RF900RS

47100-31E00-1UH

1
Out of stock

1

COVER, FRAME RH (SILVER) | RF900RZS; Includes Item(s) 2 - 4

47100-31E10-0FP

1
Out of stock

2

SHIELD, HEAT RH

47117-31E00

1
Out of stock

3

TAPE SET, RH | FOR 19A

68130-31E00-B7G

1
Out of stock

3

TAPE SET, RH | FOR 33J

68130-31E00-B7H

1
Out of stock

3

TAPE SET, RH | FOR 1UH

68130-31E00-D3S

1
Out of stock

3A

TAPE SET, NO.2 RH | FOR 0FP

68130-31E10-D8M

1
Out of stock

3

TAPE SET, RH | FOR 0FP

68130-31E00-D9E

1
Out of stock

4

EMBLEM | FOR 19A

68131-31E00-AF7

1
Out of stock

4

EMBLEM | FOR 33J

68131-31E00-B8U

1
Out of stock

4

EMBLEM | FOR 1UH

68131-31E00-D3T

1
Out of stock

4

EMBLEM | FOR 0FP

68131-31E00-D8P

1
Out of stock

5

COVER, FRAME LH (RED) | RF900RR/RS

47200-31E00-19A

1
Out of stock

5

COVER, FRAME LH (BLACK) | RF900RR

47200-31E00-33J

1
Out of stock

5

COVER, FRAME LH (GREEN) | RF900RS

47200-31E00-1UH

1
Out of stock

5

COVER, FRAME LH (SILVER) | RF900RZS; Includes Item(s) 6 - 8

47200-31E10-0FP

1
Out of stock

6

SHIELD, HEAT LH

47217-31E00

1
Out of stock

7

TAPE SET, LH | FOR 19A

68140-31E00-B7G

1
Out of stock

7

TAPE SET, LH | FOR 33J

68140-31E00-B7H

1
Out of stock

7

TAPE SET, LH | FOR 1UH

68140-31E00-D3S

1
Out of stock

7

TAPE SET, LH | FOR 0FP

68140-31E00-D9E

1
Out of stock

7A

TAPE SET, NO.2 LH | FOR 0FP

68140-31E10-D8M

1
Out of stock

8

EMBLEM | FOR 19A

68131-31E00-AF7

1
Out of stock

8

EMBLEM | FOR 33J

68131-31E00-B8U

1
Out of stock

8

EMBLEM | FOR 1UH

68131-31E00-D3T

1
Out of stock

8

EMBLEM | FOR 0FP

68131-31E00-D8P

1
Out of stock

9

COVER, INNER RH

47511-31E00

1
Out of stock

10

COVER, INNER LH

47611-31E00

1
Out of stock

11

SCREW This part replaces 03541-14123.

03541-1412A

4
Out of stock

12

BRACKET, FRAME COVER RH

47191-21E00

1
Out of stock

12

BRACKET, FRAME COVER LH

47192-21E00

1
Out of stock

13

CUSHION, SIDE

09320-08018

4
Out of stock

14

SCREW (6X16) | MODEL R This part replaces 09136-06102.

09136-06121

2
Out of stock

14

BOLT, FRONT | MODEL S

09116-06131

2
Out of stock

15

CUSHION,FRAME C This part replaces 47161-21E00.

47161-21E01

2
Out of stock

16

SPACER This part replaces 09180-06225.

09180-06265

2
Out of stock

17

CUSHION This part replaces 09320-08061.

09320-08525

2
Out of stock

18

.SCREW This part replaces 02142-05123.

02142-0512A

2
Out of stock

19

WASHER

09161-05017

2
Out of stock

20

COVER, FRAME CENTER (RED) | RF900RR/RS

47311-31E00-19A

1
Out of stock

20

COVER, FRAME CENTER (BLACK) | RF900RR

47311-31E00-33J

1
Out of stock

20

COVER, FRAME CENTER (GREEN) | RF900RS

47311-31E00-1UH

1
Out of stock

20

COVER, FRAME CENTER (SILVER) | RF900RZS

47311-31E00-0FP

1
Out of stock

21

BRACKET, REAR

47193-21E00

1
Out of stock

22

.SCREW This part replaces 02142-05123.

02142-0512A

2
Out of stock

23

NUT

09148-05021

2
Out of stock

24

SCREW This part replaces 03541-14123.

03541-1412A

6
Out of stock

25

SCREW, COVER REAR This part replaces 03241-15163.

03241-1516A

2
Out of stock

26

REFER TO FIG.41A(G-4) FOR

SPECIAL NOTE

—
Out of stock
