1973 Yamaha RD60 (RD60) Kick Starter Diagram

← All diagrams

Find the part on the Kick Starter diagram for your 1973 Yamaha RD60 (RD60), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

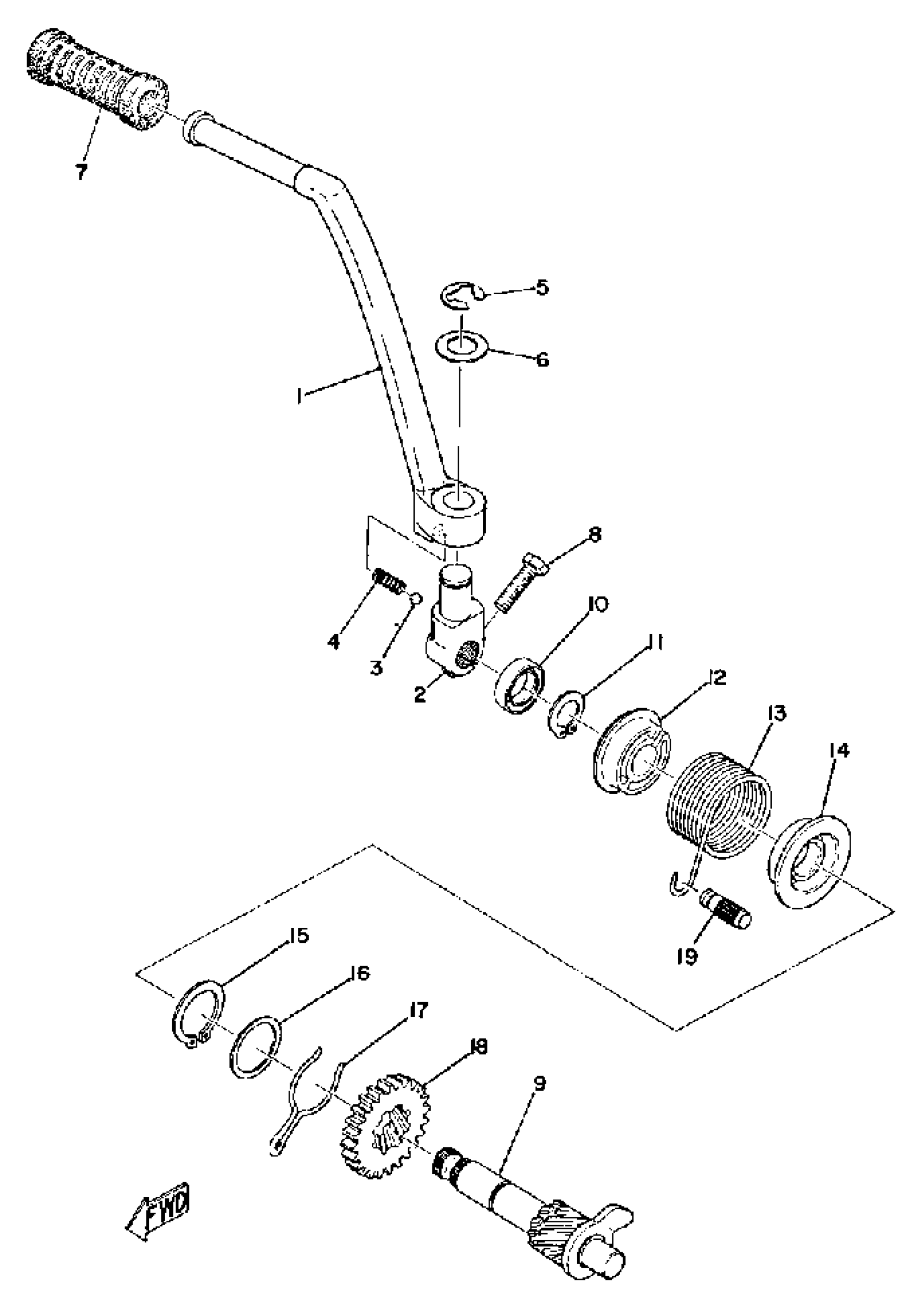

1973 Yamaha RD60 (RD60) Kick Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK CRANK ASSEMBLY

5G1-15620-00-00

1
Out of stock

2

BOSS, KICK CRANK

337-15621-01-00

1
Out of stock

3

BALL (12R)

93507-32031-00

1
Out of stock

4

SPRING COMPRESSION278156220000

90501-12081-00

1
Out of stock

5

CIRCLIP

99006-10600-00

1

$6.91

In stock

6

WASHER PLATE 278156130000

90201-15234-00

1

$6.78

In stock

7

COVER, KICK LEVER

156-15618-01-00

1

$6.43

In stock

8

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

9

KICK AXLE ASSEMBLY

353-15660-01-00

1
Out of stock

10

OIL SEAL (15X26X6-102)

93109-15001-00

1

$7.42

In stock

11

CIRCLIP(1AR)

99009-15400-00

1

$5.10

In stock

12

COVER, KICK SPRING

132-15676-01-00

—

$9.02

In stock

13

SPRING TORSION 304156650000

90508-26136-00

—
Out of stock

14

SPRING TORSION 304156650000

90508-26136-00

—
Out of stock

15

CIRCLIP (256)

93410-25017-00

1
Out of stock

15

CIRCLIP (256)

93410-25017-00

1
Out of stock

16

WASHER, PLATE(59W)

90201-253K0-00

—

$6.18

In stock

17

CLIP

90468-26038-00

1
Out of stock

18

GEAR, KICK (24T)

353-15641-00-00

1
Out of stock

19

STOPPER, KICK SPRING

248-15668-00-00

—
Out of stock
