1973 Yamaha RD60 (RD60) Crank - Piston Diagram

← All diagrams

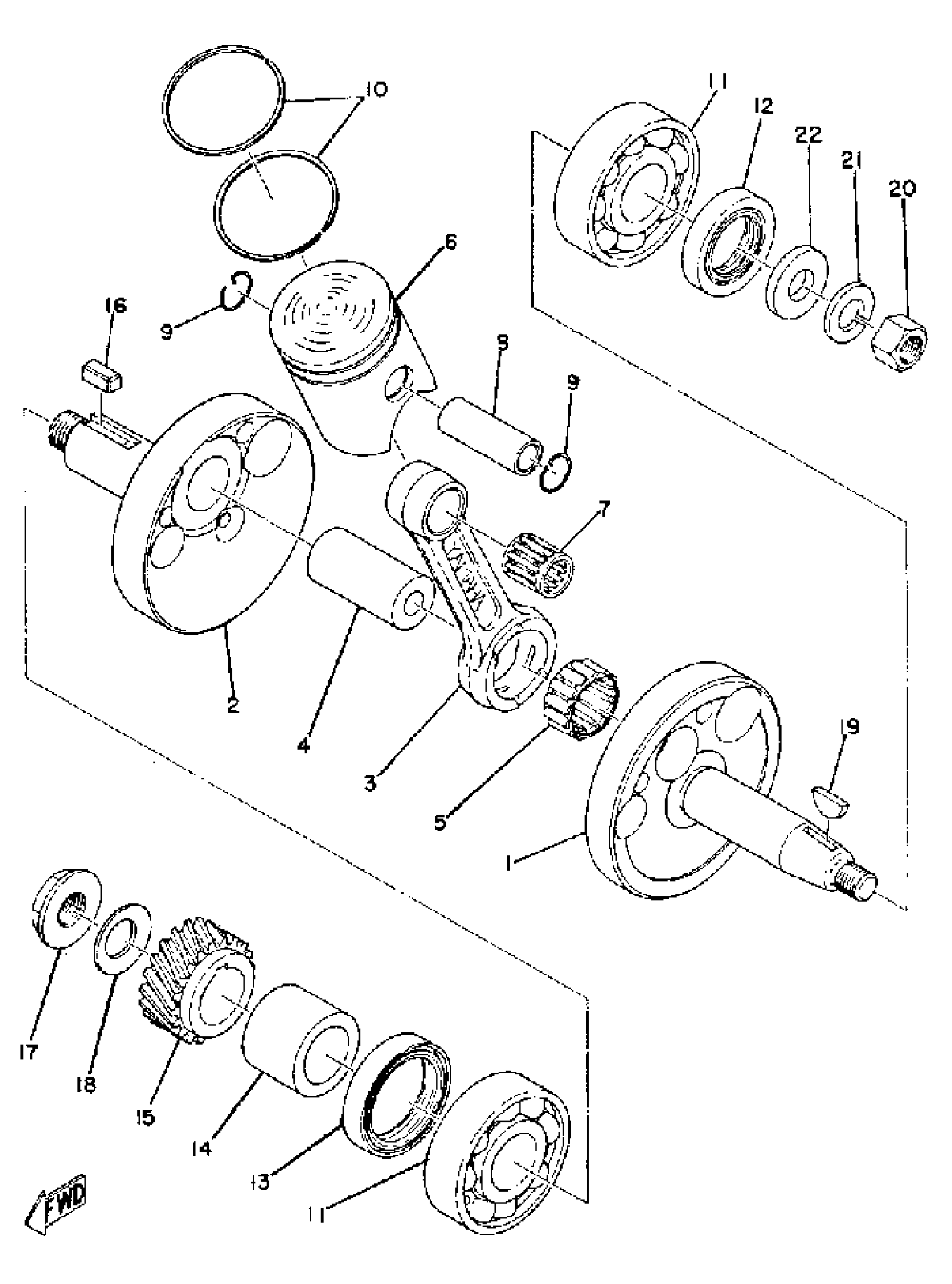

Find the part on the Crank - Piston diagram for your 1973 Yamaha RD60 (RD60), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha RD60 (RD60) Crank - Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

2U2-11400-00-00

1
Out of stock

1

CRANK 1

(353-11412-00-00)

1
Out of stock

2

CRANK 2

(353-11422-01-00)

1
Out of stock

3

ROD, CONNECTING

3R1-11651-01-00

1
Out of stock

4

PIN, CRANK 1

257-11681-10-00

1
Out of stock

5

BEARING, CYLINDRICAL(3TU)

93310-418C4-00

1
Out of stock

6

PISTON STD

388-11631-00-96

1
Out of stock

6

PISTON 1 O/S 0.25

388-11635-00-00

1
Out of stock

6

PISTON 2 O/S 0.50

388-11636-00-00

1
Out of stock

7

BRG,CYL-CAL ROLLER 5G TM

93310-11268-00

1

$30.25

In stock

8

PIN, PISTON

102-11633-02-00

1

$5.11

In stock

9

CIRCLIP 132116340000

93450-13022-00

1
Out of stock

10

PISTON RINGSET STD

388-11601-00-00

1
Out of stock

10

PISTON RINGSET 1ST

388-11601-10-00

1
Out of stock

10

PISTON RINGSET 2ND

(388-11601-20-00)

1
Out of stock

11

BEARING(1GJ)

93306-20458-00

—

$36.19

In stock

12

OIL SEAL (20X35X7-136)

93102-20009-00

—

$9.10

In stock

13

OIL SEAL (28X40X8-132)

93103-28011-00

—

$12.05

In stock

14

COLLAR (4Y2)

90387-205E9-00

—
Out of stock

15

GEAR, PRI DRIVE

353-16111-01-00

1
Out of stock

16

KEY, STRAIGHT 3531154600

90282-05005-00

—
Out of stock

17

NUT(1EE)

90179-12659-00

—

$5.37

In stock

18

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

—
Out of stock

19

KEY WOODRUFF 146115450000

90280-03017-00

—

$5.78

In stock

20

NUT, HEXAGON 98801-12200

90170-12175-00

—

$7.69

In stock

20

NUT(3DM)

95304-12600-00

—

$6.68

In stock

21

YBS67-12 WASHER,SPRING

92990-12100-00

—

$6.68

In stock

22

WASHER (492)

90201-12535-00

—
Out of stock
