1973 Yamaha RD60 (RD60) Crankcase - Cylinder Diagram

← All diagrams

Find the part on the Crankcase - Cylinder diagram for your 1973 Yamaha RD60 (RD60), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

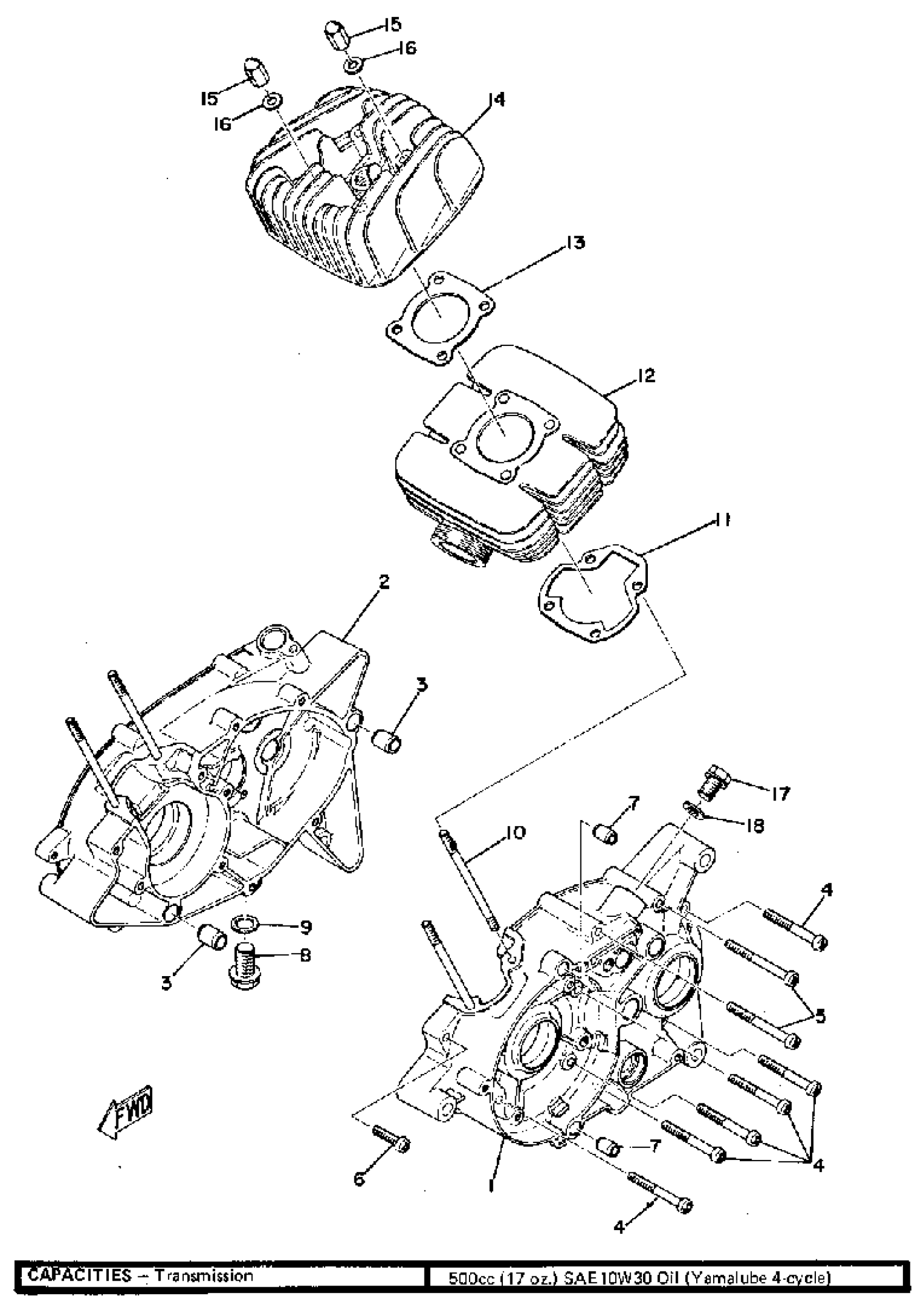

1973 Yamaha RD60 (RD60) Crankcase - Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1

(353-15111-00-00)

1
Out of stock

2

CRANKCASE 2

(353-15121-02-00)

1
Out of stock

3

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

4

SCREW PAN HEAD

98580-06550-00

1

$6.17

In stock

5

SCREW, PANHED (GC2)

98580-06555-00

1
Out of stock

6

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

7

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

8

1

$6.71

In stock

9

GASKET (3JD1)

90430-12207-00

1

$6.77

In stock

10

BOLT STUD 1091136100

90116-06026-00

1

$2.69

In stock

11

GASKET, CYLINDER

4AD-11351-00-00

—

$3.60

In stock

12

CYLINDER 1

(388-11311-00-R4)

1
Out of stock

13

GASKET, CYLINDER HEAD 1

517-11181-01-00

1

$5.60

In stock

14

HEAD, CYLINDER 1

(388-11111-01-94)

1
Out of stock

15

NUT CAP 126111716000

90176-06002-00

1

$4.43

In stock

16

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

17

—

$8.44

In stock

18

GASKET (5R6)

90430-10171-00

—

$3.17

In stock
