1973 Yamaha RD60 (RD60) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1973 Yamaha RD60 (RD60), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

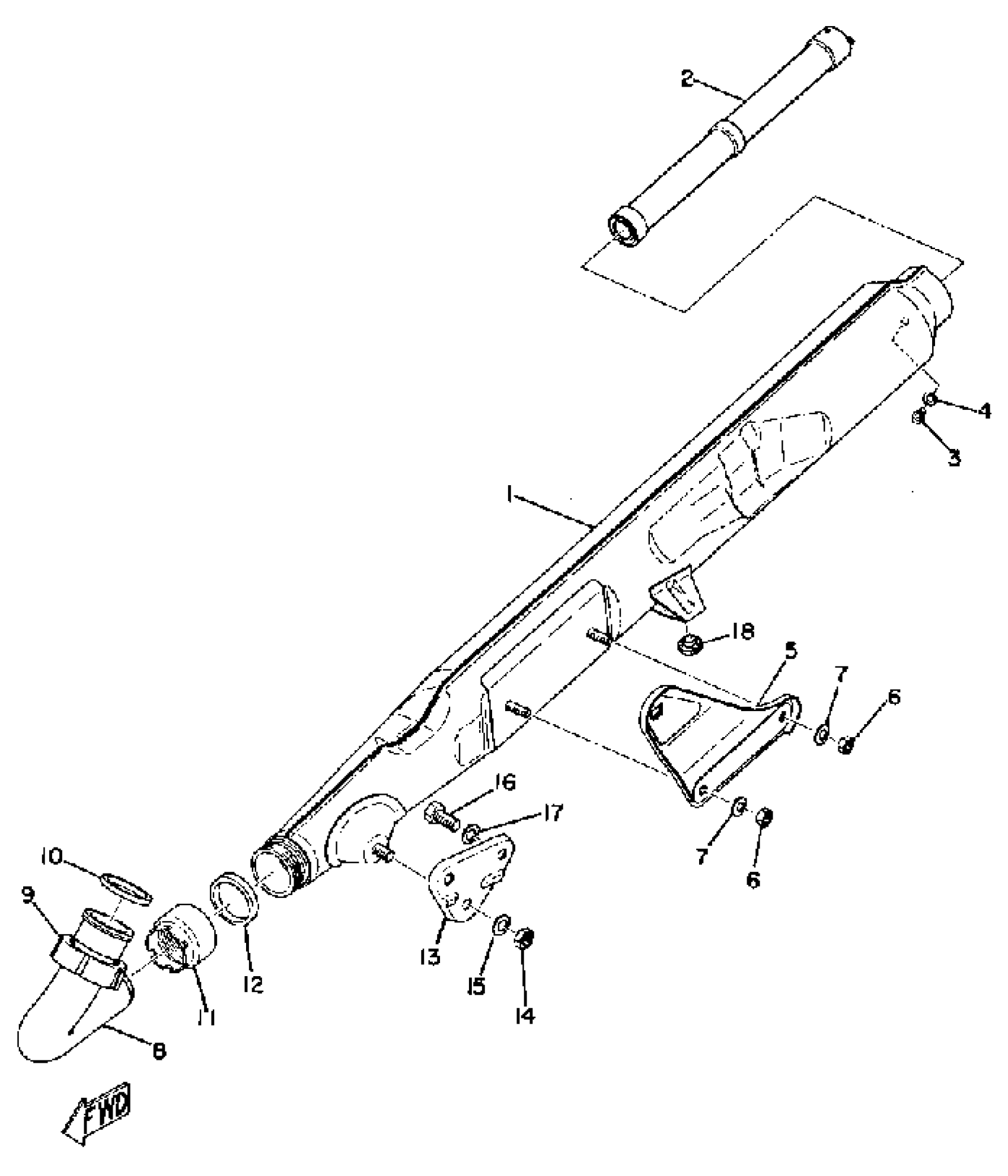

1973 Yamaha RD60 (RD60) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MUFFLER ASSEMBLY L

(353-14710-00-00)

1
Out of stock

2

SILENCER, EXHAUST

(353-14753-01-00)

1
Out of stock

3

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

4

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

5

STAY, MUFFLER 2

(353-14772-00-00)

1
Out of stock

6

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

7

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

8

PIPE, EXHAUST L

(353-14611-00-00)

1
Out of stock

9

NUT, RING

1L4-14612-00-00

1
Out of stock

10

GASKET, EXHAUST PIPE

3MT-14613-00-00

1
Out of stock

11

NUT, MUFFLER JOINT

132-14713-00-00

1
Out of stock

12

GASKET, MUFFLER

3NA-14714-01-00

—

$21.72

In stock

13

STAY, MUFFLER 1

(353-14771-00-00)

1
Out of stock

14

NUT(6L2)

95333-08600-00

1

$3.20

In stock

15

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

16

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

17

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

18

STOPPER

1M3-27114-00-00

—

$8.09

In stock
