1973 Yamaha RD60 (RD60) Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 1973 Yamaha RD60 (RD60), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

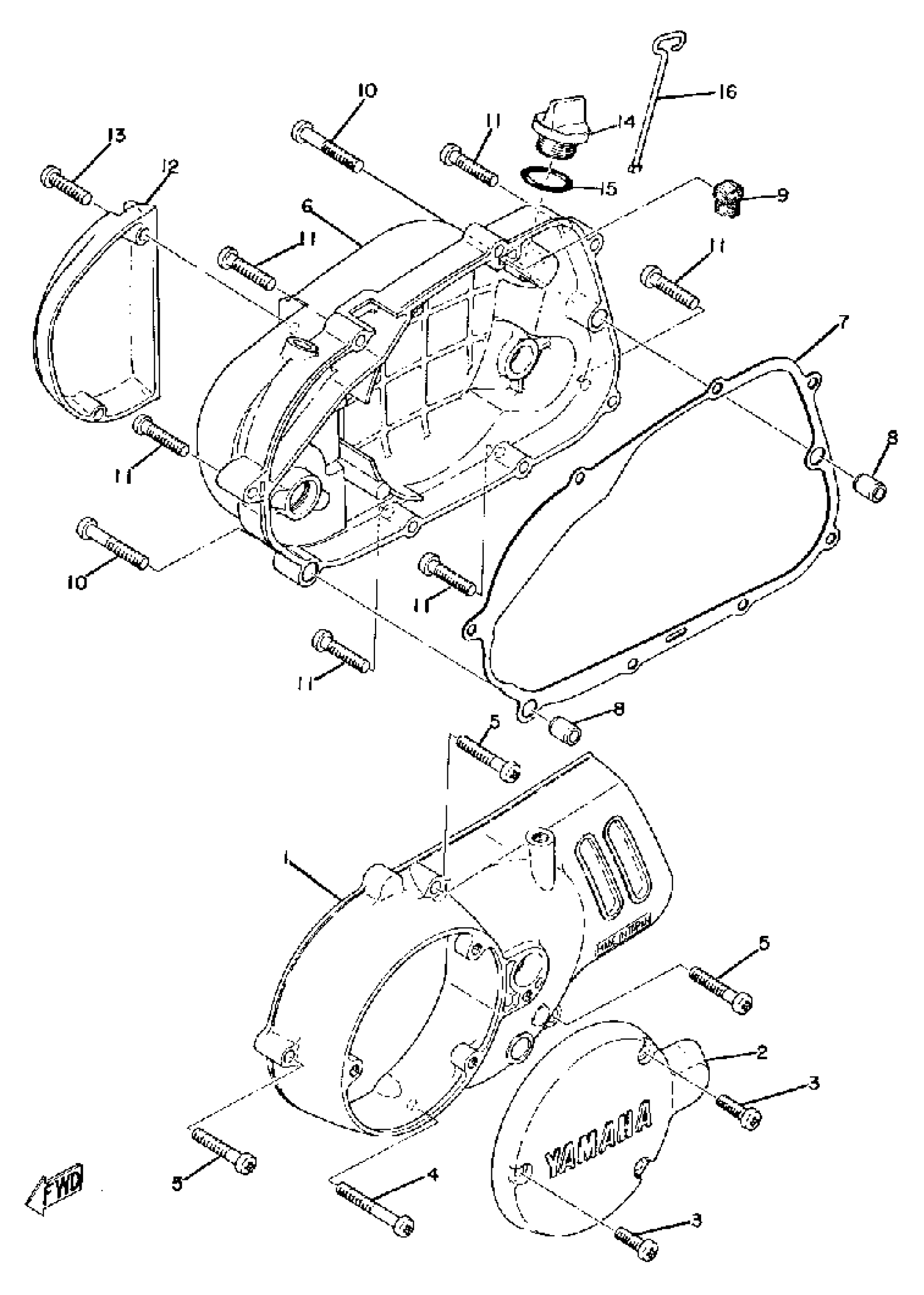

1973 Yamaha RD60 (RD60) Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CRANKCASE L (353-15411-00-Y4)

353-15411-00-Y4

1
Out of stock

2

COVER, GENERATOR

353-15415-00-Y4

1
Out of stock

3

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

4

SCREW PAN HEAD

98580-06545-00

1

$5.78

In stock

5

SCREW, PAN HEAD(6E0)

97885-06030-00

1

$4.62

In stock

6

COVER, CRANKCASE R

353-15421-00-00

1
Out of stock

7

GASKET, CRANKCASE COVER 1

3MT-15451-00-00

1
Out of stock

8

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

9

SCRAPER, OIL

353-15437-02-00

1
Out of stock

10

SCREW PAN HEAD

98580-06040-00

1

$6.17

In stock

11

SCREW, PAN HEAD(6E0)

97885-06030-00

1

$4.62

In stock

12

COVER, OIL PUMP

353-15416-00-00

1
Out of stock

13

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

14

PLUG, OIL

3Y1-15363-10-00

1

$17.02

In stock

15

O-RING

93210-21190-00

1

$5.59

In stock

16

GAUGE, LEVEL

353-15361-00-00

1
Out of stock
