1979 Yamaha RD400 (RD400F) Kick - Start Diagram

← All diagrams

Find the part on the Kick - Start diagram for your 1979 Yamaha RD400 (RD400F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

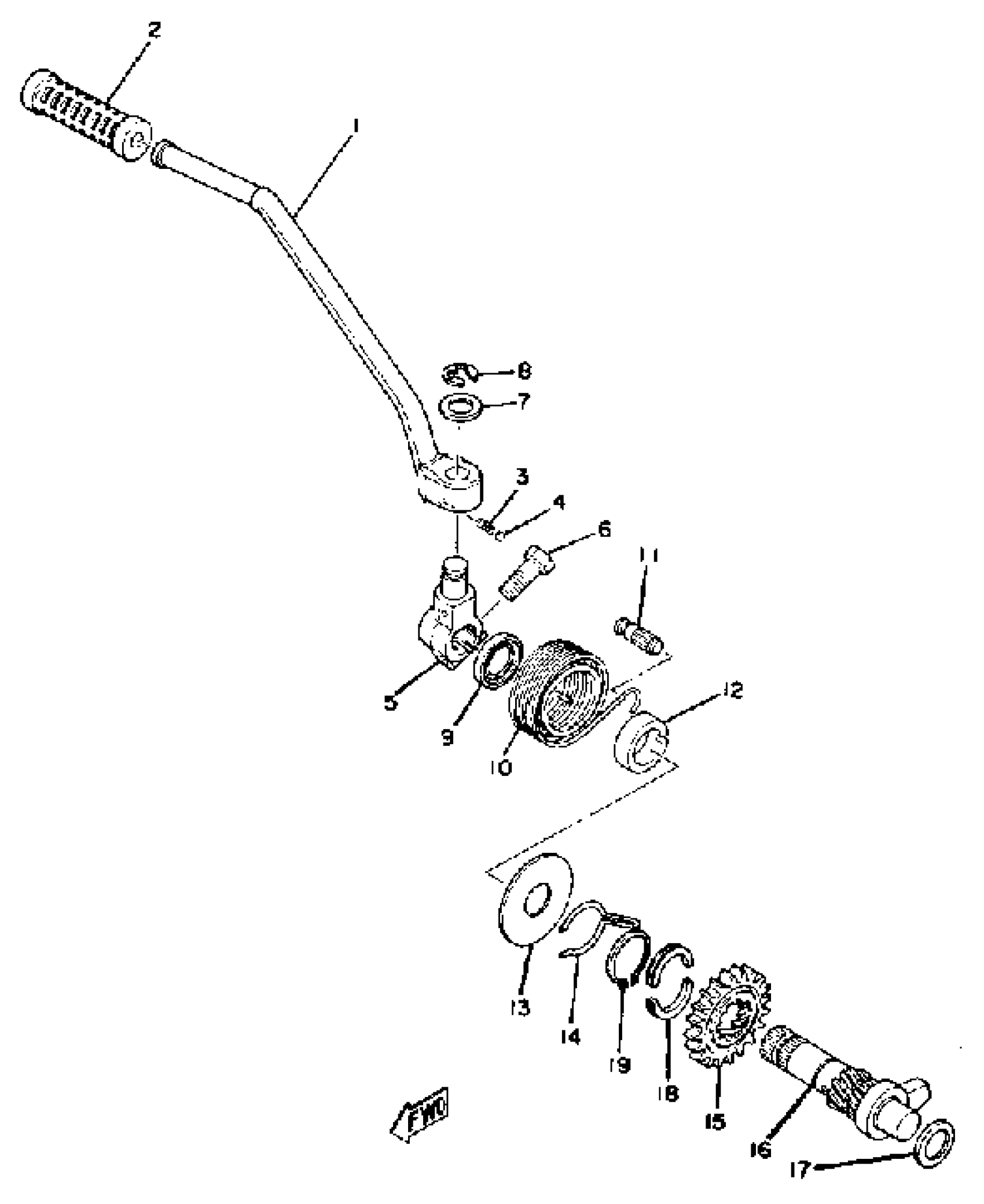

1979 Yamaha RD400 (RD400F) Kick - Start Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANK, KICK

2R8-15611-00-93

1
Out of stock

1

SPRING TORSION 278156650000

90508-30051-00

1
Out of stock

2

COVER, KICK LEVER

156-15618-01-00

1

$6.43

In stock

3

SPRING COMPRESSION278156220000

90501-12081-00

1
Out of stock

4

BALL (12R)

93507-32031-00

1
Out of stock

5

BOSS, KICK CRANK

583-15621-00-00

1
Out of stock

6

BOLT, HEXAGON

97013-08030-00

1

$3.20

In stock

7

WASHER (3XVC)

90201-153A1-00

1

$6.71

In stock

8

CIRCLIP

99006-10600-00

1

$6.91

In stock

9

OIL SEAL (20X30X4.5-146)

93104-20007-00

1

$6.23

In stock

11

STOPPER, KICK SPRING

248-15668-00-00

1
Out of stock

12

SPACER

(2R8-15666-00-00)

1
Out of stock

13

COVER, SPRING

(2R8-15676-00-00)

1
Out of stock

14

CLIP (2R8)

90468-26091-00

1
Out of stock

15

GEAR, KICK

2R8-15641-00-00

1
Out of stock

16

KICK AXLE ASSEMBLY

(2R8-15660-00-00)

1
Out of stock

17

SHIM 1

136-17417-00-10

1
Out of stock

18

HOLDER, KICK GEAR

248-15654-00-00

—

$6.49

In stock

19

CIRCLIP(4A6)

99009-30400-00

—

$6.55

In stock
