1979 Yamaha RD400 (RD400F) Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 1979 Yamaha RD400 (RD400F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

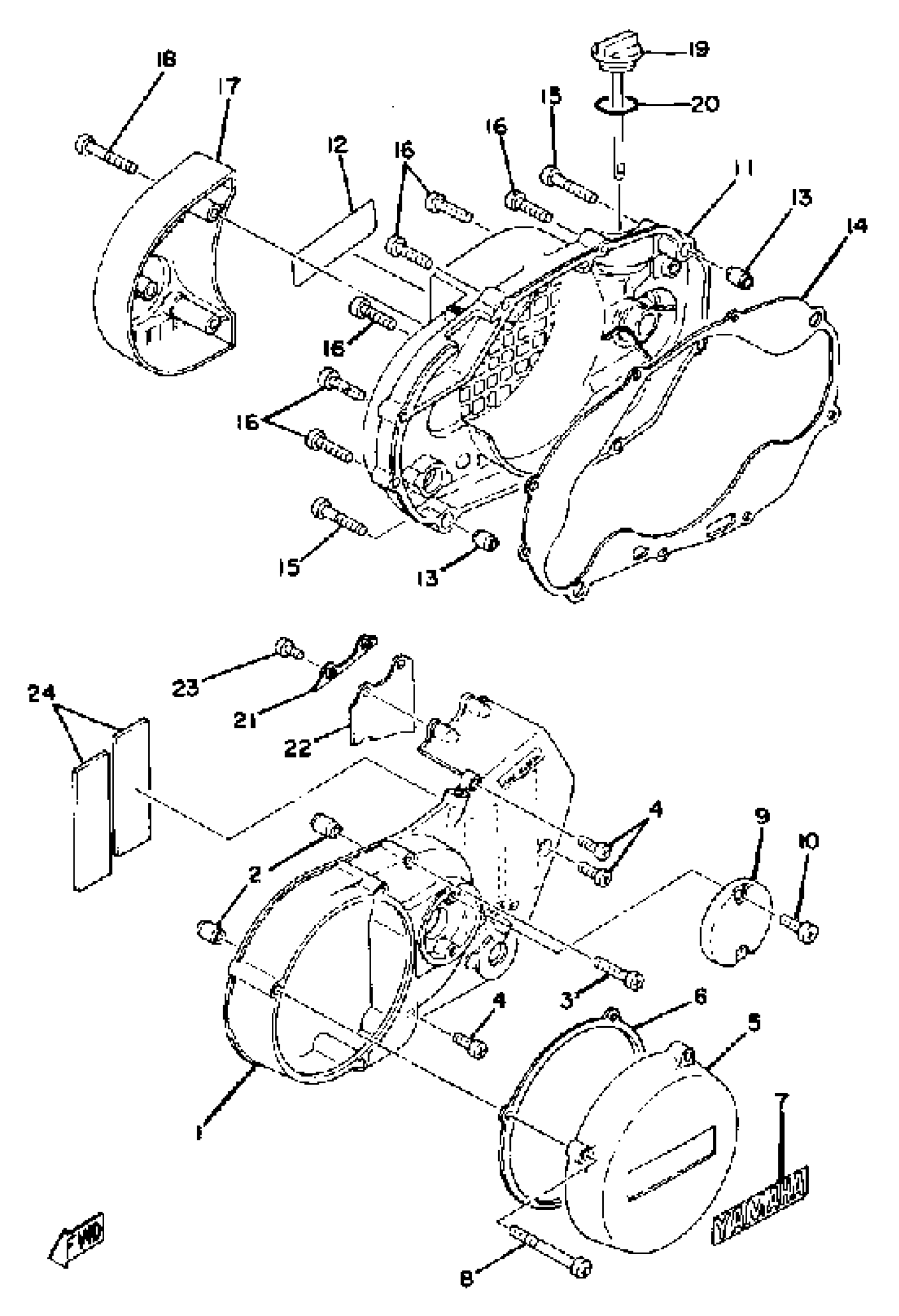

1979 Yamaha RD400 (RD400F) Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CRANKCASE L

2V0-15411-00-00

1
Out of stock

2

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

3

SCREW, PAN

98507-06035-00

1

$6.18

In stock

4

SCREW, PAN

98517-06020-00

1
Out of stock

5

COVER, GENERATOR

1A0-15415-00-00

1
Out of stock

6

GASKET 1

1A0-15455-10-00

1
Out of stock

7

EMBLEM

1A0-15435-00-00

1
Out of stock

8

SCREW, PAN HEAD

98507-06070-00

1

$6.91

In stock

9

COVER, CAP

1A0-15417-00-00

1
Out of stock

10

SCREW, PAN

98517-06020-00

1
Out of stock

11

COVER, CRANKCASE R

1A0-15421-00-00

1
Out of stock

12

EMBLEM

1A0-15435-00-00

1
Out of stock

13

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

14

1

$32.43

In stock

15

SCREW, PAN

98507-06040-00

1

$2.25

In stock

16

SCREW, PAN

98517-06030-00

1
Out of stock

17

COVER, OIL PUMP

1A0-15416-00-00

1
Out of stock

18

SCREW, PAN

98507-06045-00

—

$2.63

In stock

19

PLUG, OIL

360-15363-01-00

1
Out of stock

20

O-RING(1KT)

93210-27778-00

—

$6.89

In stock

21

PROTECTOR

1A0-15491-00-00

1
Out of stock

22

PLATE, DUST SEAL

1A0-15497-00-00

1
Out of stock

23

SCREW, PAN

98517-05012-00

—

$3.91

In stock

24

TAPE, DAMPER

(2V0-15498-00-00)

1
Out of stock
