1979 Yamaha RD400 (RD400F) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1979 Yamaha RD400 (RD400F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

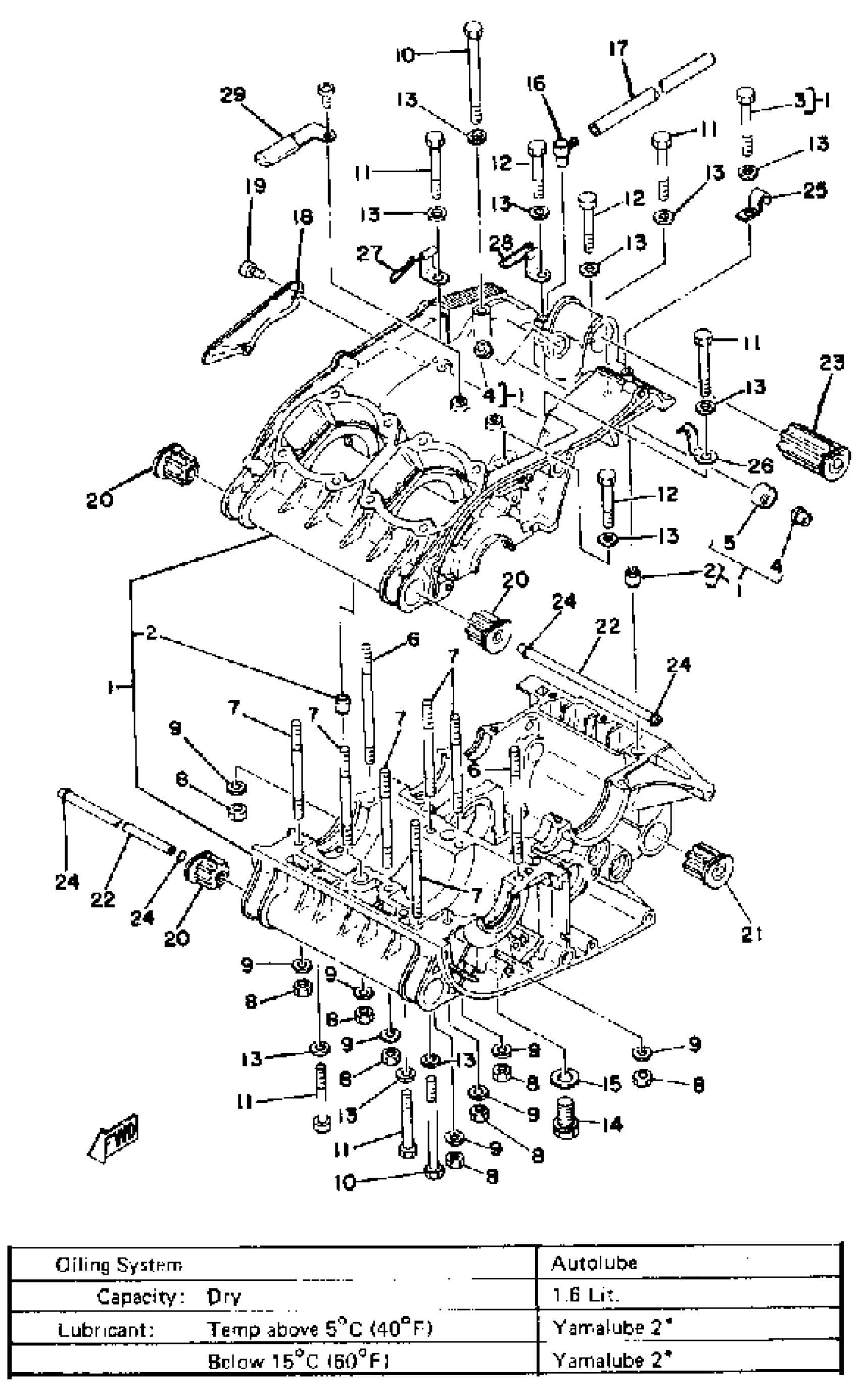

1979 Yamaha RD400 (RD400F) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSEMBLY

(2V0-15100-00-00)

1
Out of stock

2

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

3

BOLT, HEXAGON W/W DEEP RECESS

97E95-06555-00

1
Out of stock

4

BUSH (214-17843-00)

90381-08002-00

1

$10.54

In stock

5

BUSH, SOLID

(90380-14040-00)

1
Out of stock

6

BOLT, STUD (1A1)

90116-08232-00

1
Out of stock

7

BOLT (248-11361-00)

90116-08064-00

1
Out of stock

8

NUT(6L2)

95333-08600-00

1

$3.20

In stock

9

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

10

BOLT(3GG)

97017-06090-00

1
Out of stock

11

BOLT, HEXAGON W/W DEEP RECESS

97E95-06555-00

1
Out of stock

12

BOLT, HEXAGON

97013-06045-00

1

$1.51

In stock

13

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

14

BOLT

90109-14385-00

1

$13.66

In stock

15

WASHER, PROTECTOR

4F4-14766-00-00

1

$6.11

In stock

16

BREATHER

583-15371-00-00

—
Out of stock

17

HOSE(7EG)

90446-07241-00

—

$7.42

In stock

18

COVER

278-15492-01-00

—
Out of stock

19

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

20

DAMPER, ENG MOUNT 1

1A1-15316-00-00

1
Out of stock

21

DAMPER, ENG MOUNT 2

1A1-15326-00-00

1
Out of stock

22

SPACER, ENG MOUNT

1A1-15317-00-00

1
Out of stock

23

DAMPER, ENG MOUNT 3

1A1-15336-00-00

1
Out of stock

24

O-RING (P95)

93210-11073-00

—
Out of stock

25

CLAMP 363154850100

90462-05005-00

—

$6.92

In stock

26

CLAMP

(90462-06025-00)

1
Out of stock

27

CLAMP

(90465-06093-00)

1
Out of stock

28

CLAMP (1A0)

90465-06094-00

—
Out of stock

29

CLAMP

(90465-10140-00)

1
Out of stock
