1979 Yamaha RD400 (RD400F) Crank - Piston Diagram

← All diagrams

Find the part on the Crank - Piston diagram for your 1979 Yamaha RD400 (RD400F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

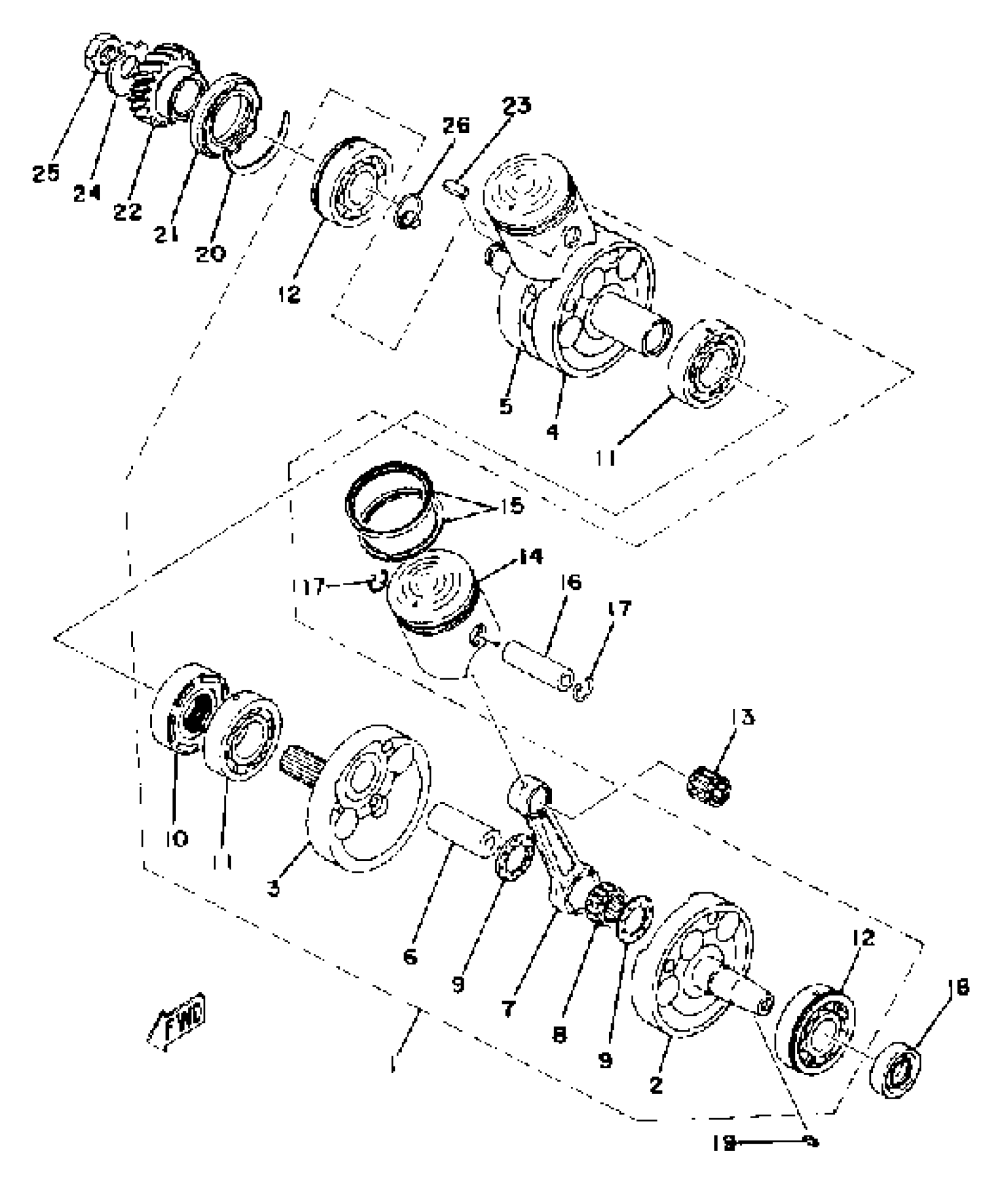

1979 Yamaha RD400 (RD400F) Crank - Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

2V0-11400-00-00

1
Out of stock

2

CRANK 1

(2V0-11412-00-00)

1
Out of stock

3

CRANK 2

(2V0-11422-00-00)

1
Out of stock

4

CRANK 3

(2V0-11432-00-00)

1
Out of stock

5

CRANK 4

(2V0-11442-00-00)

1
Out of stock

6

PIN, CRANK

8G8-11681-00-00

1

$24.98

In stock

7

. ROD, CONNECTING

2T2-11651-00-00

1
Out of stock

8

BEARING, CYLINDRICAL(3SB)

93310-422C8-00

1

$42.77

In stock

9

WASHER (29L)

90209-22248-00

—
Out of stock

10

. SEAL, LABYRINTH 1

278-11515-00-00

1
Out of stock

11

1

$68.89

In stock

12

BEARING(1UA)

93306-30549-00

1
Out of stock

13

1

$23.03

In stock

14

PISTON KIT STD

(2V0-11630-00-00)

1
Out of stock

14

PISTON KIT 1ST

(2V0-11630-10-00)

1
Out of stock

14

PISTON KIT 2ND

(2V0-11630-20-00)

1
Out of stock

14

PISTON KIT 3RD

(2V0-11630-30-00)

1
Out of stock

14

PISTON KIT 4TH

(2V0-11630-40-00)

1
Out of stock

14

PISTON STD

2V0-11631-01-97

1
Out of stock

14

PISTON 1 O/S 0.25

2V0-11635-01-00

1
Out of stock

14

PISTON 2 O/S 0.50

2V0-11636-01-00

1
Out of stock

14

PISTON 3 O/S 0.75

2V0-11637-01-00

1
Out of stock

14

PISTON 4 O/S 1.00

2V0-11638-01-00

1
Out of stock

15

PISTON RINGSET STD

1A1-11601-00-00

1
Out of stock

15

PISTON RINGSET 1ST

1A1-11601-10-00

1
Out of stock

15

PISTON RINGSET 2ND

1A1-11601-20-00

1
Out of stock

15

PISTON RINGSET 3RD

1A1-11601-30-00

1
Out of stock

15

PISTON RINGSET 4TH

1A1-11601-40-00

1
Out of stock

16

PIN, PISTON

4L0-11633-00-00

—
Out of stock

17

CIRCLIP (137-11634-00)

93450-17025-00

—

$6.17

In stock

18

OIL SEAL (20X40X10-360)

93103-20076-00

—

$25.78

In stock

19

KEY,WOODRUFF

90280-04005-00

1
Out of stock

20

CIRCLIP

278-17424-01-00

—
Out of stock

21

OIL SEAL (40X62X10-360)

93103-40077-00

—
Out of stock

22

GEAR, PRI DRIVE

(2V0-16111-00-00)

1
Out of stock

23

KEY, STRAIGHT (584)

90282-07023-00

—
Out of stock

24

WASHER, LOCK (RD400C)

90215-18131-00

—

$8.75

In stock

25

NUT

90170-16425-00

—
Out of stock

26

SEAL, CRANKSHAFT 000

360-11526-00-00

1
Out of stock
