1979 Yamaha RD400 (RD400F) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1979 Yamaha RD400 (RD400F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

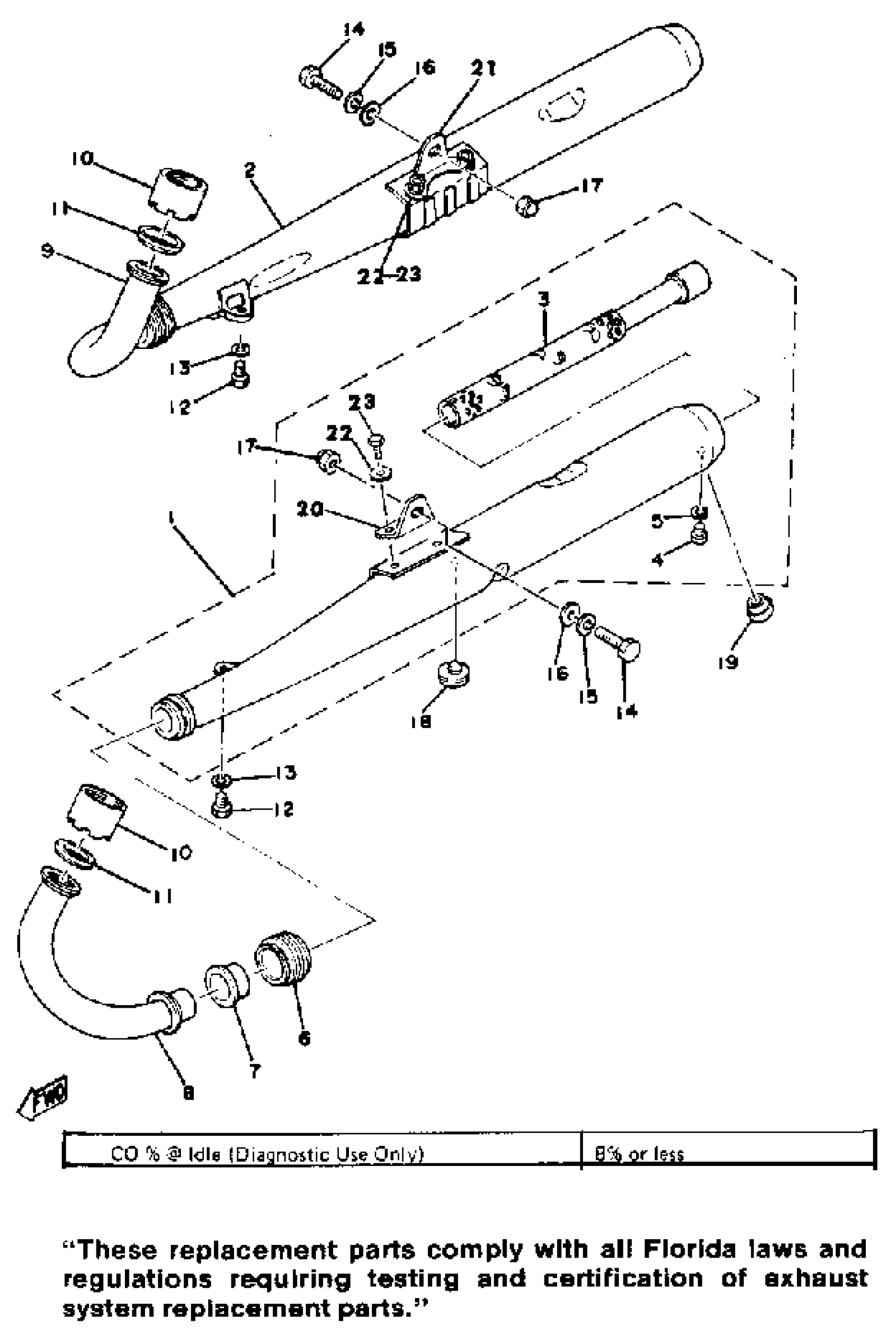

1979 Yamaha RD400 (RD400F) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MUFFLER ASSEMBLY L

2V0-14710-00-00

1
Out of stock

2

MUFFLER ASSEMBLY R

(2V0-14720-00-00)

1
Out of stock

3

SILENCER

521-14753-00-00

—

$73.08

In stock

4

SCREW PAN HEAD

98580-06010-00

1

$6.17

In stock

5

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

6

JOINT, EXHAUST L

1A1-14615-02-00

1
Out of stock

7

GASKET, MUFFLER

1A1-14714-02-00

1
Out of stock

8

PIPE, EXHAUST L

2V0-14611-00-00

1
Out of stock

9

PIPE, EXHAUST R

(2V0-14621-00-00)

1
Out of stock

10

NUT, RING

2V0-14612-00-00

1
Out of stock

11

GASKET, EXHAUST PIPE

3PA-14613-10-00

1
Out of stock

12

BOLT, HEXAGON

97017-08016-00

1
Out of stock

13

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

14

BOLT

90101-10513-00

1
Out of stock

15

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

16

—

$3.00

In stock

17

NUT, CROWN (650)

95380-10800-00

1

$14.70

In stock

18

STOPPER, MAIN STAND

1A0-27114-00-00

—
Out of stock

19

GROMMET (420)

90480-14153-00

—

$8.55

In stock

20

STAY, MUFFLER 1

(2V0-1471L-00-00)

1
Out of stock

21

STAY, MUFFLER

(2V0-1472L-00-00)

1
Out of stock

22

BOLT(62E)

97013-08012-00

—

$2.48

In stock

23

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock
