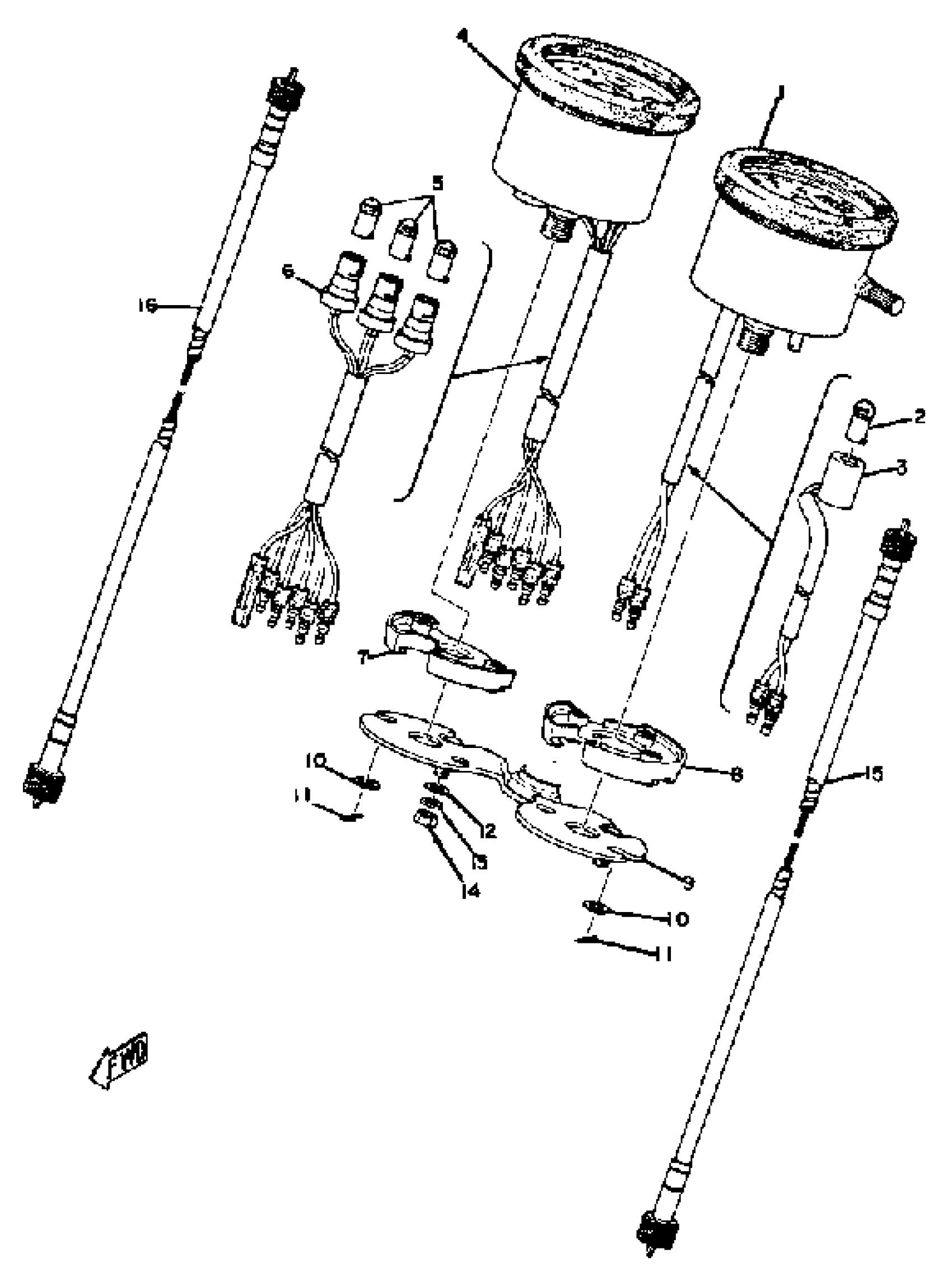

Find the part on the Meter diagram for your 1970 Yamaha R5 (R5), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Yamaha R5 (R5) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

278-83570-40-00

1
Out of stock

2

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

3

SOCKET, METER

(278-83536-20-00)

1
Out of stock

4

TACHOMETER ASSEMBLY

(307-83540-00-00)

1
Out of stock

5

BULB (12V-3.4W)

123-83516-21-00

1

$4.10

In stock

6

SOCKET CORD ASSEMBLY

(278-83520-00-00)

1
Out of stock

7

DAMPER

(278-83523-00-00)

1
Out of stock

8

DAMPER 2

(278-83526-00-00)

1
Out of stock

9

BRACKET, METER

(278-83519-00-00)

1
Out of stock

10

WASHER 214835240000

90209-05029-00

1

$6.86

In stock

11

CLIP (156-83525-00)

90468-10050-00

1

$2.31

In stock

12

WASHER, PLATE (371)

90201-06431-00

1
Out of stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

15

SPEEDOMETER CABLE ASSY

2A6-83550-10-00

1
Out of stock

16

TACHOMETER CABLE (278-83560-00)

278-83560-01-00

1
Out of stock
