1970 Yamaha R5 (R5) Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 1970 Yamaha R5 (R5), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

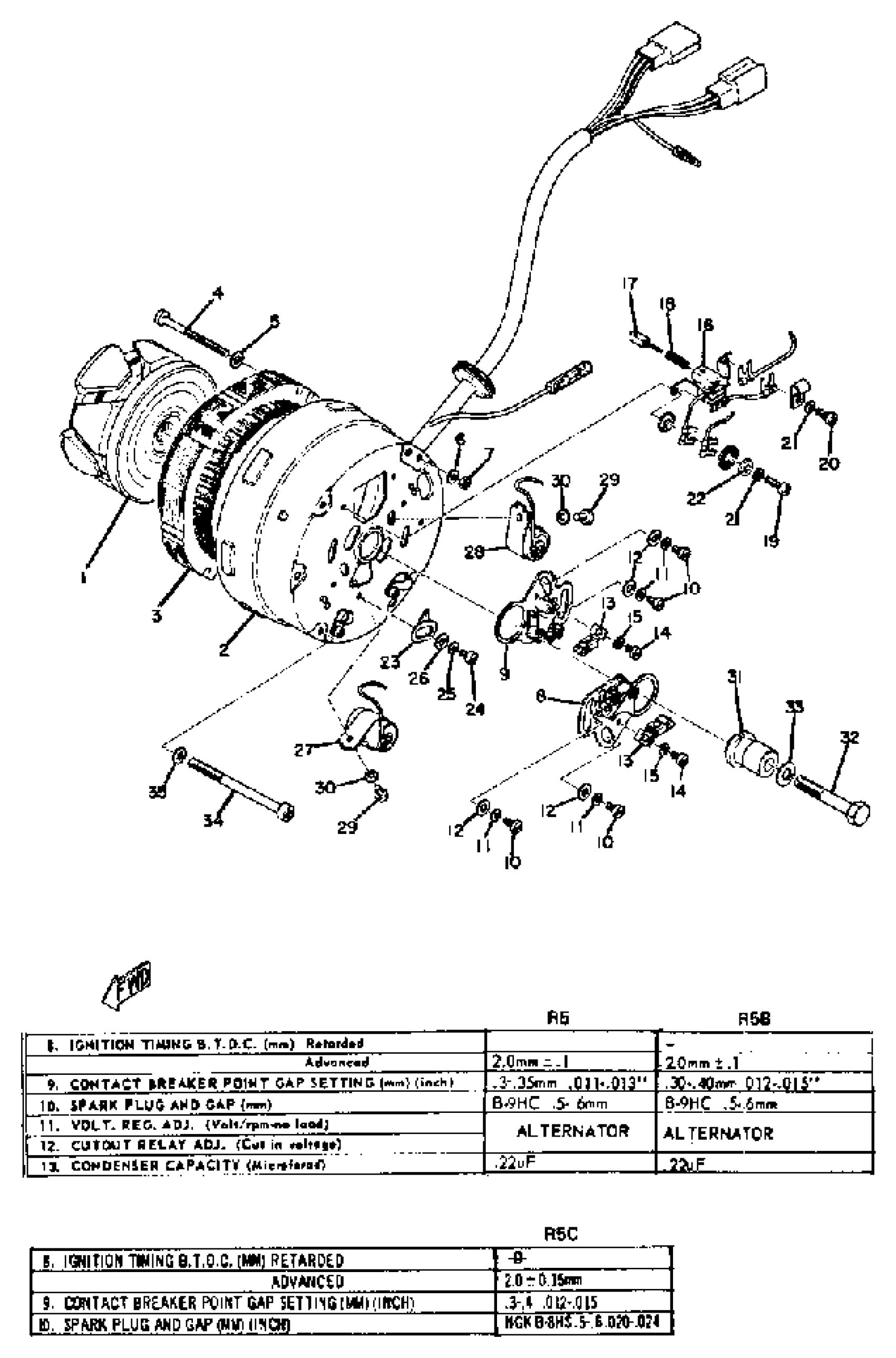

1970 Yamaha R5 (R5) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROTOR ASSEMBLY

(278-81650-20-00)

1
Out of stock

1

AC GENERATOR ASSEMBLY

(360-81600-92-00)

1
Out of stock

2

STATOR ASSEMBLY

(278-81610-20-00)

1
Out of stock

3

ARMATURE ASSEMBLY

(278-81640-20-00)

1
Out of stock

4

SCREW, ADJUSTING

5BF-8433E-00-00

1

$6.11

In stock

5

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

6

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

7

NUT(6TA)

95307-04600-00

1

$6.69

In stock

8

.. CONTACT BRKR ASSEMBLY

278-81621-20-00

1
Out of stock

9

.. CONTACT BRKR ASSEMBLY

278-81622-20-00

1
Out of stock

10

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

11

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

12

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

13

LUBRICATOR

(131-81231-20-00)

1
Out of stock

14

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

15

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

16

.. BRUSH HOLDER ASSEMBLY

360-81619-20-00

1
Out of stock

17

.. BRUSH 1

278-81611-20-00

1
Out of stock

18

.. SPRING, BRUSH

278-81617-20-00

1
Out of stock

19

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

20

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

21

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

22

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

23

PLATE, TIMING

(278-81632-20-00)

1
Out of stock

24

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

25

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

26

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

27

CNDSR 2

278-81625-91-00

1
Out of stock

28

.. CONDENSER 2

278-81626-20-00

1
Out of stock

29

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

30

WASHER, PLAIN (646)

92990-04600-00

1

$0.92

In stock

31

. CAM

278-81651-20-00

1
Out of stock

32

. UNAVAILABLE IN PRICE BOOK

278-81662-20-00

1
Out of stock

33

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

34

SCREW,PANHEAD (EG9)

98580-05570-00

—

$5.62

In stock

35

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock
