1970 Yamaha R5 (R5) Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1970 Yamaha R5 (R5), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

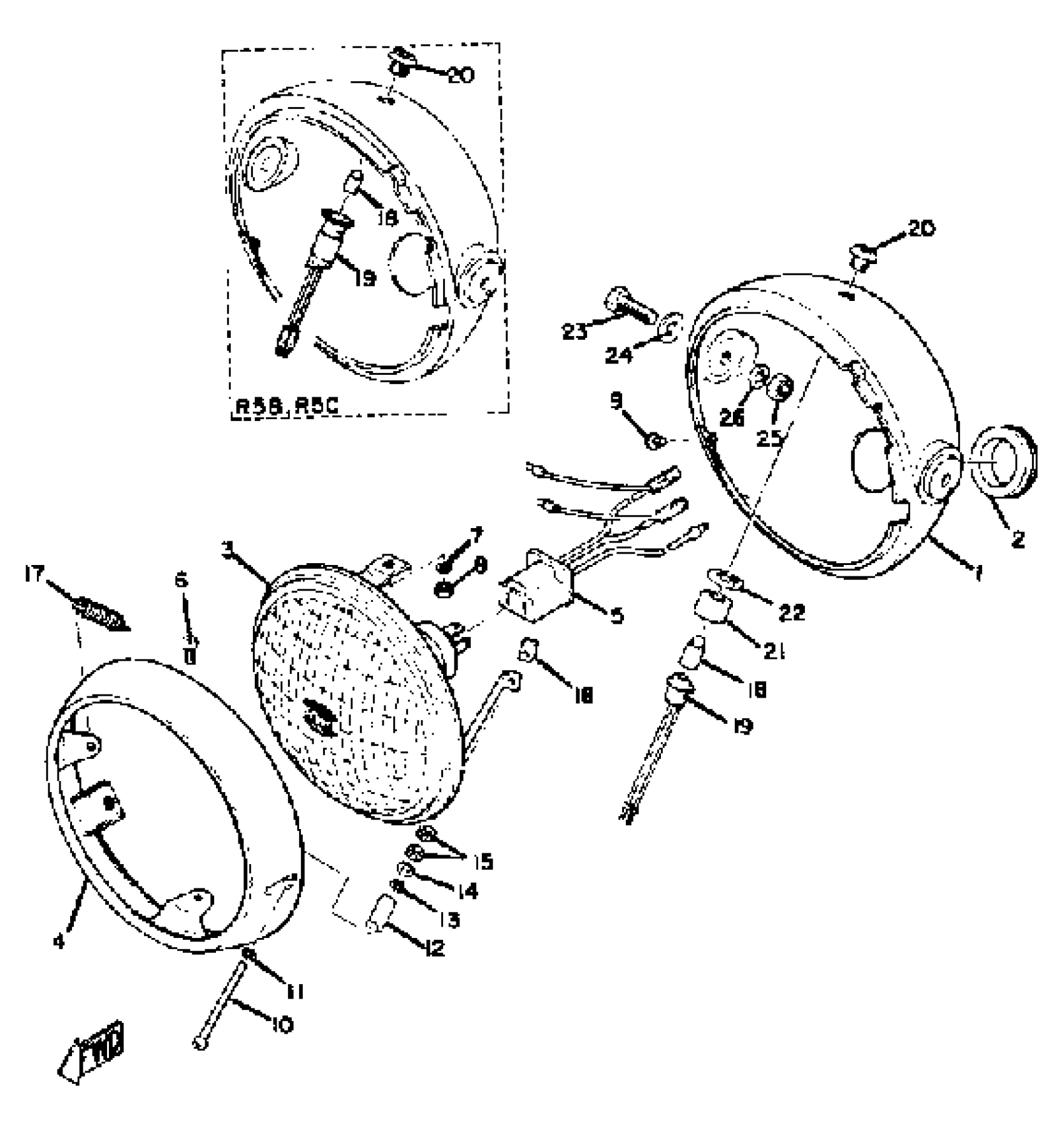

1970 Yamaha R5 (R5) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSEMBLY

(246-84330-60-71)

1
Out of stock

1

BODY ASSEMBLY

(246-84330-60-R9)

1
Out of stock

1

UNAVAILABLE IN PRICE BOOK

HEA-DLAMP-UN-IT

1
Out of stock

2

GROMMET, WIREHARNESS

214-84153-60-00

1
Out of stock

2

PILOT LIGHT ASSEMBLY 1

256-84301-61-00

1
Out of stock

3

LENS ASSEMBLY

246-84320-60-00

1
Out of stock

4

RIM, HEADLIGHT

235-84315-60-00

1
Out of stock

5

SOCKET

246-84312-60-00

1
Out of stock

6

SCREW,PAN HEAD (646)

98580-05012-00

1

$5.60

In stock

7

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

8

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

9

SCREW, OVAL HEAD (1A0)

90152-05005-00

1

$2.82

In stock

10

SCREW 214841316100

90157-04001-00

1

$5.35

In stock

11

WASHER,SPECIAL

233-84127-60-00

1

$2.78

In stock

12

. COLLAR, SCREW

233-84133-60-00

1
Out of stock

13

YBS66-4 WASHER, PLAIN

92990-04200-00

—

$1.10

In stock

14

SPACER

168-84328-60-00

1
Out of stock

15

NUT(6TA)

95307-04600-00

—

$6.69

In stock

16

NUT, ADJUST

198-84334-60-00

—

$6.43

In stock

17

SPRING

(132-84335-60-00)

1
Out of stock

18

BULB

256-84347-00-00

1
Out of stock

19

PILOT LIGHT ASSEMBLY 1

256-84301-61-00

1
Out of stock

20

PILOT LIGHT ASSEMBLY

214-84101-61-00

1
Out of stock

20

BODY, PILOT LIGHT

256-84357-61-00

1
Out of stock

21

PILOT LIGHT ASSEMBLY

214-84101-61-00

1
Out of stock

22

WASHER, IN.TOOTH

(92901-12300-00)

1
Out of stock

23

BOLT (682)

97013-08025-00

—

$6.80

In stock

24

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

25

NUT(6L2)

95333-08600-00

—

$3.20

In stock

26

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock
