1995 Kawasaki Police 1000 Starter Motor Diagram

← All diagrams

Find the part on the Starter Motor diagram for your 1995 Kawasaki Police 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

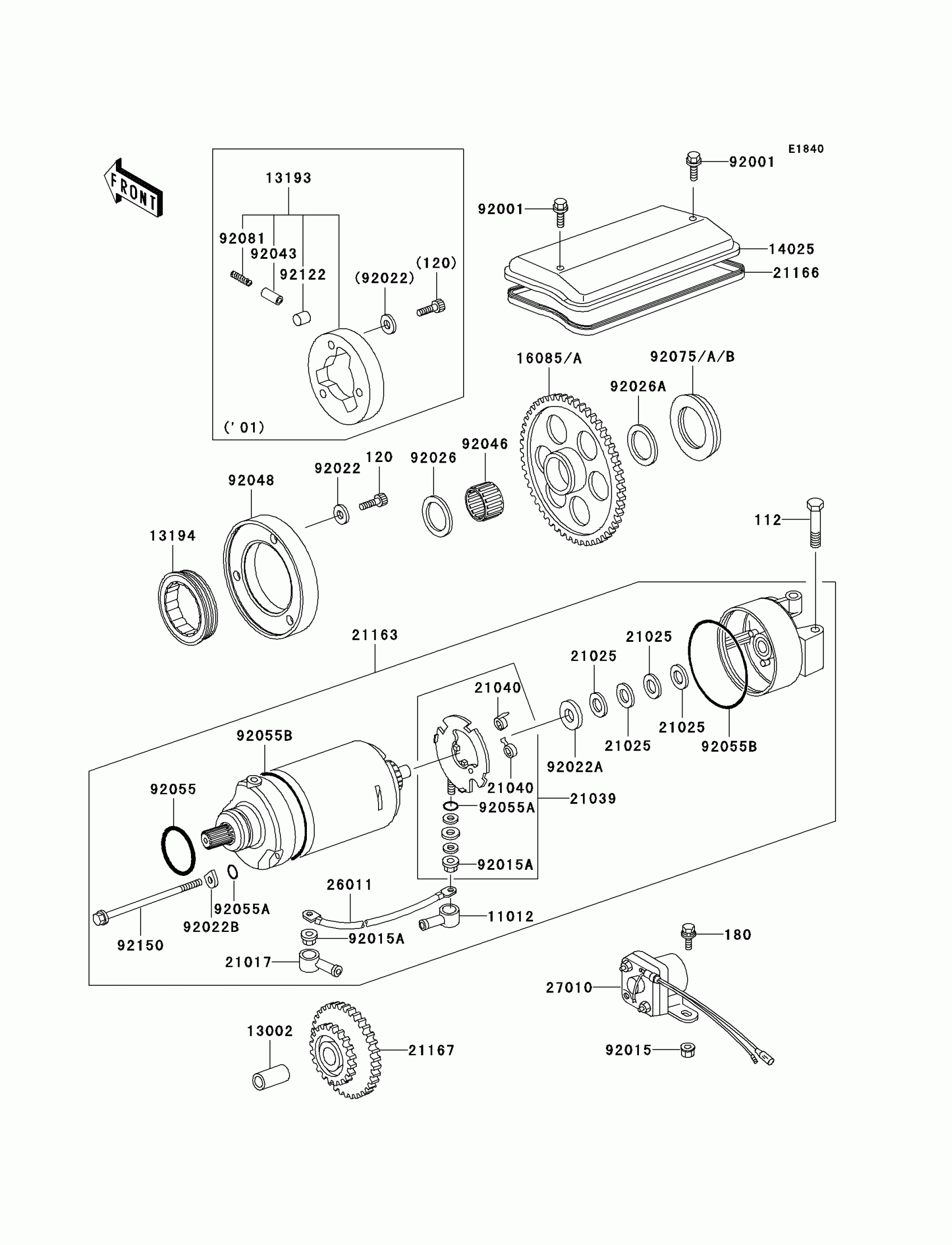

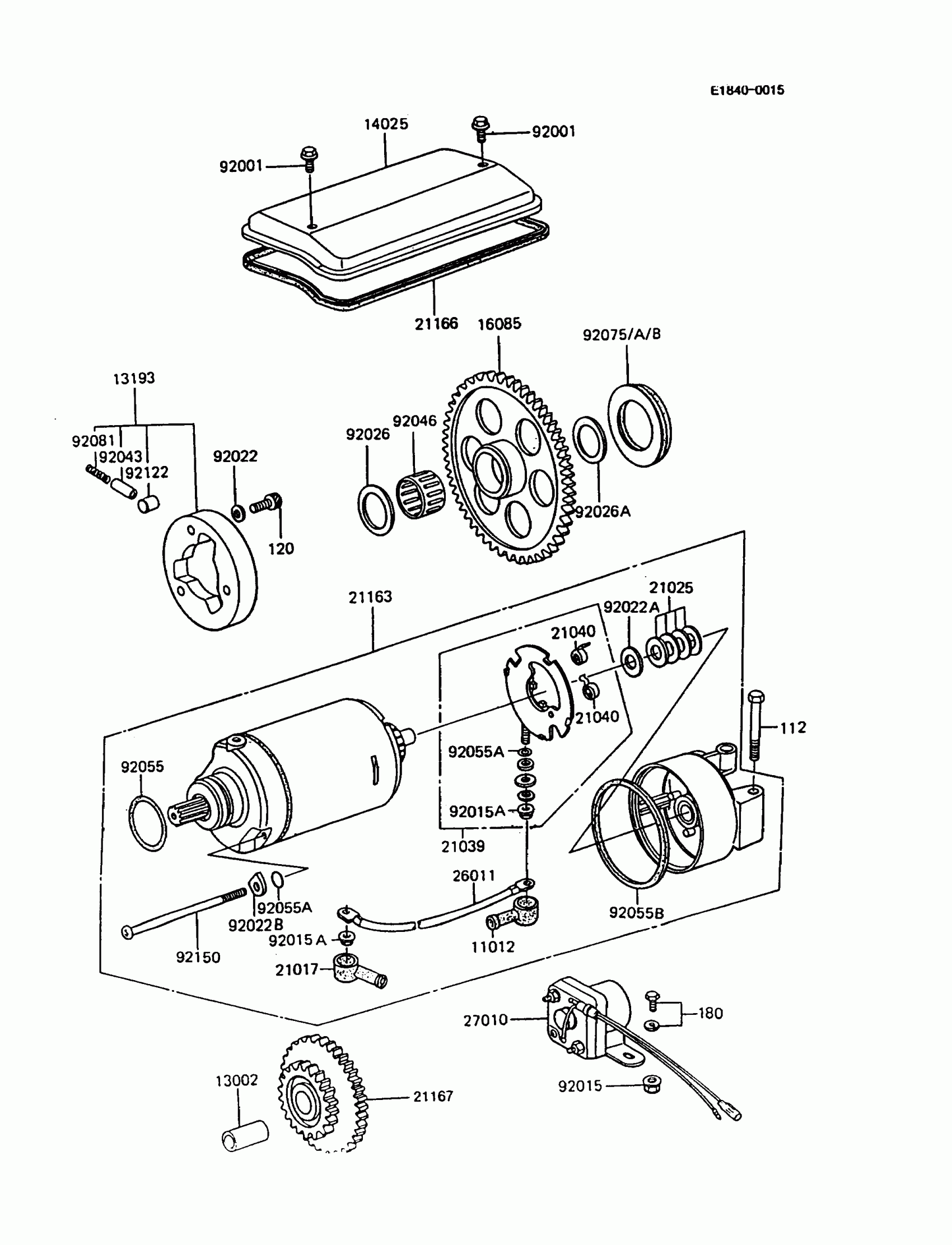

1995 Kawasaki Police 1000 Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,TERMINAL

11012-1354

1

$9.85

In stock

13002

PIN

13002-007

1

$17.07

In stock

13193

CLUTCH-ASSY-ONEWAY

13193-1006

1

$182.70

In stock

14025

COVER,STARTER

14025-1245

1
Out of stock

16085

GEAR,STARTER CLUTCH

16085-1012

1

$236.72

In stock

21017

1

$7.48

In stock

21025

WASHER,9.1X18X0.2

21025-011

—

$5.42

In stock

21039

BRUSH,CARBON

21039-1063

1

$87.50

In stock

21040

SPRING-BRUSH

21040-1057

1

$8.24

In stock

21163

STARTER-ELECTRIC

21163-1143

1

$639.91

In stock

21166

1

$37.40

In stock

21167

GEAR-SPUR,STARTER MOTOR

21167-002

1
Out of stock

26011

1

$79.27

In stock

27010

SWITCH,MAGNETIC

27010-1047

1
Out of stock

92001

BOLT,6X10

92001-1151

1

$4.42

In stock

92015

NUT,FLANGED,6MM

92015-1193

1
Out of stock

92015A

NUT,STARTER MOTOR

92015-1476

1

$3.85

In stock

92022

WASHER,8.5X13.5X2

92022-1108

1

$3.85

In stock

92022A

WASHER,9.1X18X0.8

92022-1132

1

$5.42

In stock

92022B

WASHER,LOCK,T=2.0

92022-1458

1

$5.64

In stock

92026

SPACER,25X38X1.0

92026-1031

1

$8.22

In stock

92026A

SPACER,25X34X2.0

92026-1033

1

$7.46

In stock

92043

PIN

92043-087

1

$10.11

In stock

92046

BEARING-NEEDLE,K253020S

92046-1022

1
Out of stock

92055

RING-O

92055-1276

1

$7.86

In stock

92055A

RING-O,4.5X2.0

92055-1370

1

$4.17

In stock

92055B

1

$9.58

In stock

92075

DAMPER,T=6.3

92075-1129

—

$25.68

In stock

92075A

DAMPER,T=7.3

92075-1130

—

$23.36

In stock

92075B

DAMPER,T=8.3

92075-1131

—
Out of stock

92081

SPRING

92081-110

1

$3.78

In stock

92122

ROLLER,15X14.4

92122-001

1

$9.19

In stock

92150

BOLT

92150-1243

1

$10.49

In stock

112

BOLT-UPSET,6X55

112B0655

1
Out of stock

120

BOLT-SOCKET,8X16

120P0816

1
Out of stock

180

BOLT 6X12

180B0612

1
Out of stock
